Запчасти Case IH PATRIOT XL (09-035[01]) - 75 3-BOOM SHUTOFF-20" ON CENTER-NOZZLES, RH & LH BOOM 5-WAY NOZZLES Liquid Plumbing

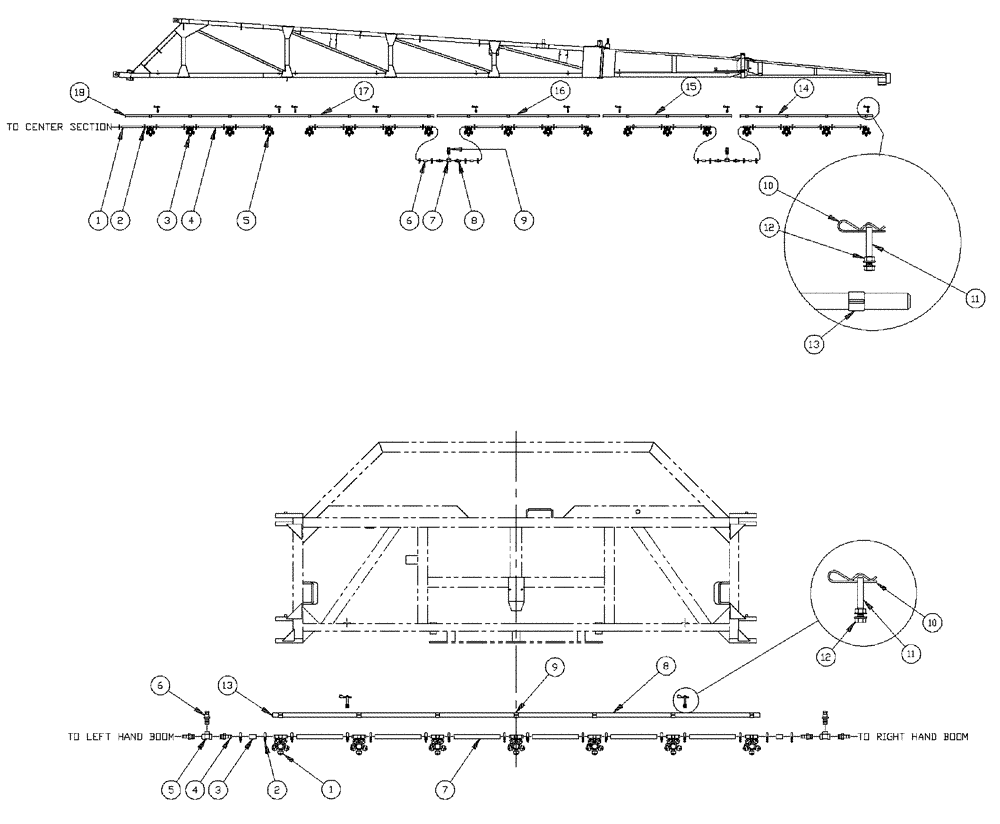

Схема запчастей Case IH PATRIOT XL - (09-035[01]) - 75 3-BOOM SHUTOFF-20" ON CENTER-NOZZLES, RH & LH BOOM 5-WAY NOZZLES Liquid Plumbing
18
11
4
13
3
10
13
15
9
2
8
7
7
1
6
2
4
12
9
10
16
3
14
1
11
8
5
17
5
6
12

Артикул

Название

Примечание

Количество

1

BN53749

HOSE,0.75" ID x 36.00"

1шт.

2

BN75978

HOSE CLAMP

SS-#12 ADJ. HS .56-1.25

38шт.

3

BN68699

NOZZLE

5 way double, 3/4" SHA

14шт.

Shown

1шт.

3

BN74621

NOZZLE

3-Way Double 3/4" SHA

14шт.

Associated Part Of Adapter, 90° 9/16-18 O-Ring x 7/16-20 JIC, P/N BN22160

1шт.

3

BN74617

NOZZLE

1 way double, with cap, 3/4" SHA

14шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

4

BN53738

FLEXIBLE HOSE,0.75" ID x 18.50"

14шт.

5

BN69475

NOZZLE

5 way single, 3/4" SHA

5шт.

Shown

1шт.

5

BN74622

NOZZLE

3 way single, with cap, 3/4" SHA

5шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

5

BN74618

Nozzle-1-way Single 3/4" SHA

5шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

6

BN53737

FLEXIBLE HOSE,0.75" ID x 7.50"

4шт.

7

BN73629

TEE

1" Poly Pipe

2шт.

8

BN53666

FITTING

Barb - 1 NPT X 3/4 Hose

4шт.

9

BN53667

COUPLING

Camlock-Male, Serial Range: (Thd)-Male

2шт.

10

BN71006

COTTER PIN

1/8", #11

10шт.

11

BN29599

PIN,9.53mm OD x 64mm L

Rework Bolt 3/8"-16 x 2.75

10шт.

12

BN50061

LOCK NUT

3/8"-16, UNC, Whiz

20шт.

13

BN74448

CLAMP

1" square tubing

19шт.

14

BN25936

TUBE

1 x 1 x 12 ga x 64.62 Long

1шт.

15

BN25937

TUBE

1 x 1 x 12 ga x 66.5 Long

1шт.

16

BN24477

TUBE

1" Sq x 81.5"

1шт.

17

BN24478

TUBE

1" Sq x 155"

1шт.

18

BN32823

PLUG

Cap - Tubing - Fits 1 x 1 x 14G

8шт.

Выбрано товаров: 28
