(09-034[03]) - 75 3-BOOM SHUTOFF-10" ON CENTER-NOZZLES, CENTER BOOM 5-WAY NOZZLES

Запчасти Case IH PATRIOT XL (09-034[03]) - 75 3-BOOM SHUTOFF-10" ON CENTER-NOZZLES, CENTER BOOM 5-WAY NOZZLES Liquid Plumbing

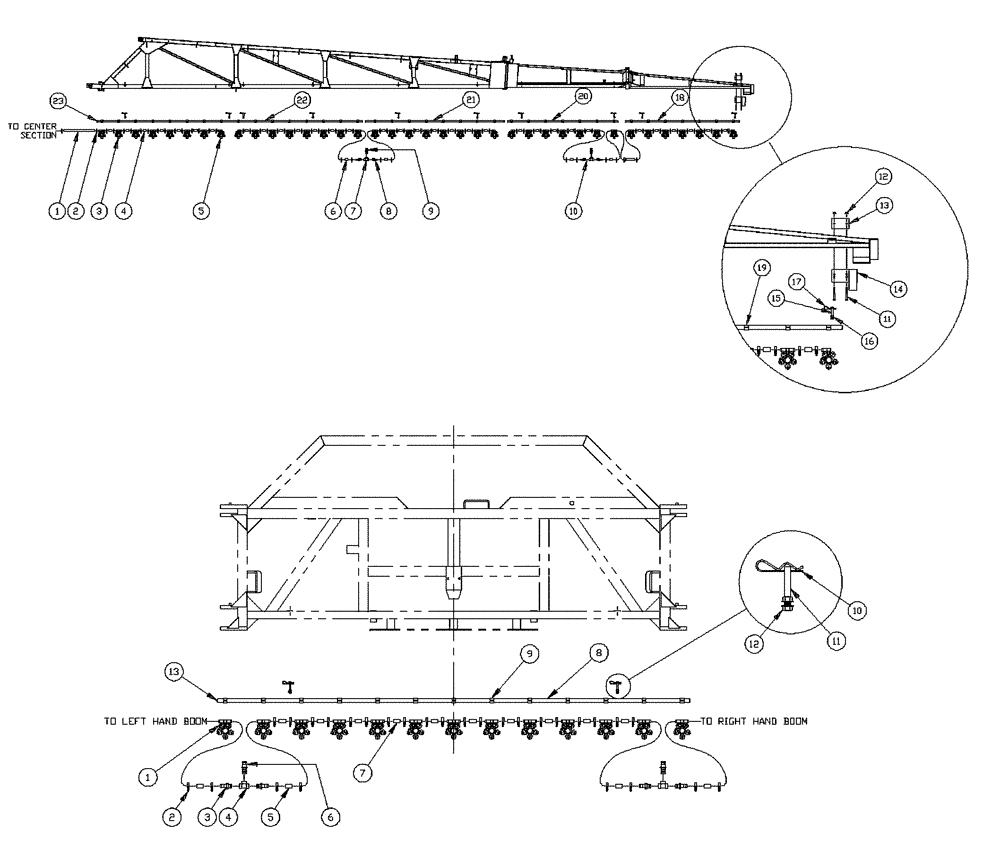

Схема запчастей Case IH PATRIOT XL - (09-034[03]) - 75 3-BOOM SHUTOFF-10" ON CENTER-NOZZLES, CENTER BOOM 5-WAY NOZZLES Liquid Plumbing
4
11
19
6
3
16
21
9
5
6
15
8
2
23
12
9
1
11
19
7
3
5
10
14
10
22
13
2
8
1
17
20
7
4
13
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

11

BN50895

BOLT

5/16-18 X 3, HH, 5, PL

2шт.

12

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

2шт.

13

BN24668

MOUNTING PLATE

7 GA HRS 2.5 X 4.25

1шт.

14

BN24665

MOUNTING PLATE

RH-foam Tube

1шт.

Shown

1шт.

BN24666

MOUNTING PLATE

LH-foam Tube

1шт.

Same Part Of Mount-RH-Foam Tube, P/N BN24665 But Opposite Side

1шт.

15

BN29599

PIN,9.53mm OD x 64mm L

Rework Bolt 3/8"-16 x 2.75

10шт.

16

BN50061

LOCK NUT

3/8"-16, UNC, Whiz

20шт.

17

BN71006

COTTER PIN

1/8", #11

10шт.

19

BN74448

CLAMP

1" square tubing

38шт.
