(09-029[03]) - 60 3-BOOM SHUTOFF-20"/30" ON CENTER-NOZZLES, CENTER BOOM 5-WAY NOZZLES

Запчасти Case IH PATRIOT XL (09-029[03]) - 60 3-BOOM SHUTOFF-20"/30" ON CENTER-NOZZLES, CENTER BOOM 5-WAY NOZZLES Liquid Plumbing

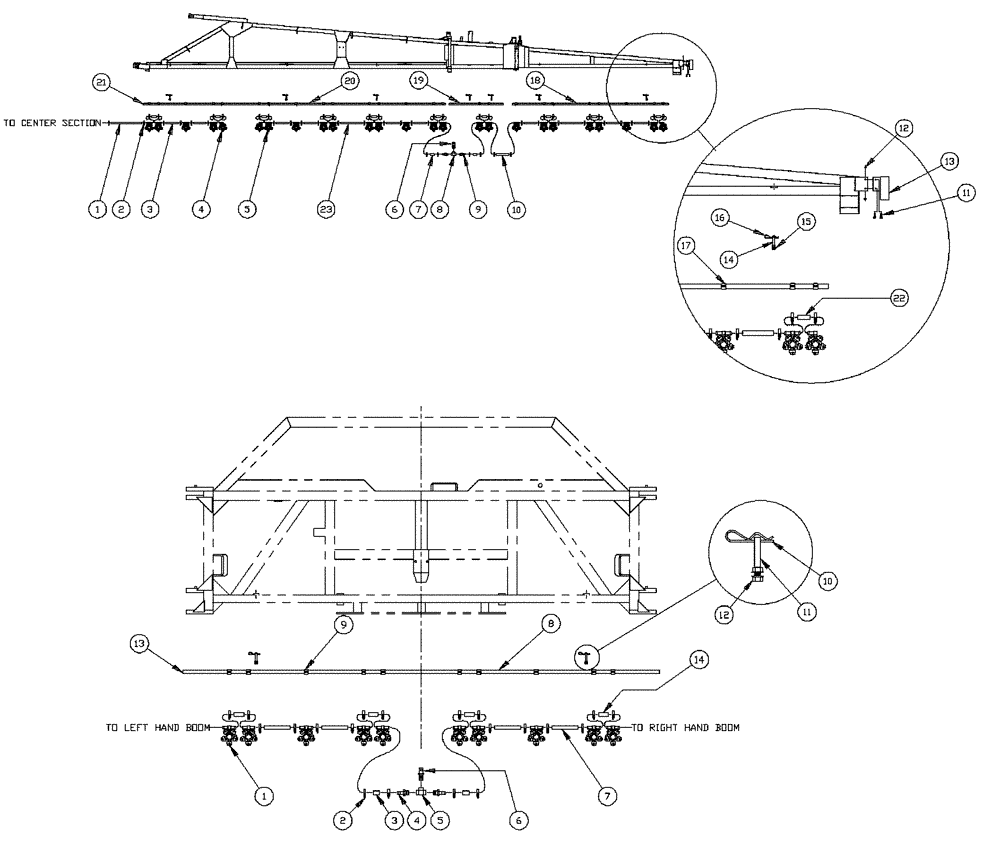

Схема запчастей Case IH PATRIOT XL - (09-029[03]) - 60 3-BOOM SHUTOFF-20"/30" ON CENTER-NOZZLES, CENTER BOOM 5-WAY NOZZLES Liquid Plumbing
11
14
5
2
7
12
14
5
13
8
11
3
6
9
19
3
22
4
23
10
17
8
4
13
16
1
6
2
7
9
21
1
15
12
18
10
20
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

11

BN50211

BOLT

1/4"-20 x .75, HH, G5, PL

2шт.

12

BN50051

NUT,1/4"-20, USR

2шт.

13

BN9265

Foam Marker RH

1шт.

Shown

1шт.

BN9266

Foam Marker LH

1шт.

Same Part Of Tube, Foam Marker RH, P/N BN9265 But Opposite Side

1шт.

14

BN29599

PIN,9.53mm OD x 64mm L

Rework Bolt 3/8"-16 x 2.75

7шт.

15

BN50061

LOCK NUT

3/8"-16, UNC, Whiz

14шт.

16

BN71006

COTTER PIN

1/8", #11

7шт.

17

BN74448

CLAMP

1" square tubing

25шт.

22

BN53858

EPDM 3/4" ID X 4.25"

10шт.
