Запчасти Case IH PATRIOT XL (09-029[01]) - 60 3-BOOM SHUTOFF-20"/30" ON CENTER-NOZZLES, RH BOOM 5-WAY NOZZLES Liquid Plumbing

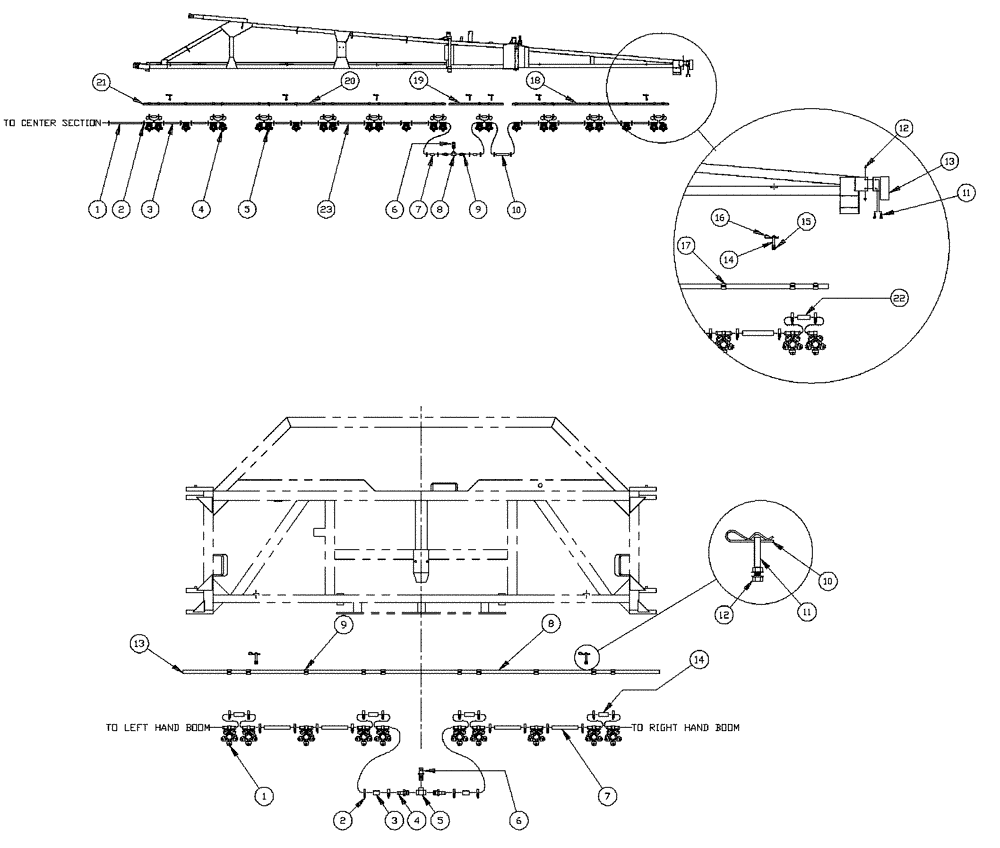

Схема запчастей Case IH PATRIOT XL - (09-029[01]) - 60 3-BOOM SHUTOFF-20"/30" ON CENTER-NOZZLES, RH BOOM 5-WAY NOZZLES Liquid Plumbing
12
16
6
4
7
21
5
10
4
8
14
5
12
3
9
2
15
10
9
14
22
11
1
7
2
19
13
8
18
3
11
6
23
20
1
17
13

Артикул

Название

Примечание

Количество

1

BN53748

HOSE,0.75" ID x 30.00"

1шт.

2

BN75978

HOSE CLAMP

SS-#12 ADJ. HS .56-1.25

50шт.

3

BN53859

EPDM 3/4" ID X 13.5"

9шт.

4

BN69475

NOZZLE

5 way single, 3/4" SHA

3шт.

Shown

1шт.

4

BN74622

NOZZLE

3 way single, with cap, 3/4" SHA

3шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

4

BN74618

1-way Single 3/4" SHA

3шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

5

BN68699

NOZZLE

5 way double, 3/4" SHA

22шт.

Shown

1шт.

5

BN74621

NOZZLE

3-Way Double 3/4" SHA

22шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

5

BN74617

NOZZLE

1 way double, with cap, 3/4" SHA

22шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

6

BN53667

COUPLING

Camlock-Male, Serial Range: (Thd)-Male

1шт.

7

BN27905

HOSE,19.05mm ID x 304.8mm L

EPDM 3/4" ID x 12"

2шт.

8

BN73629

TEE

1" Poly Pipe

1шт.

9

BN53666

FITTING

barb-1 NPTX 3/4 Hose

2шт.

10

BN53749

HOSE,0.75" ID x 36.00"

1шт.

11

BN50211

BOLT

1/4"-20 x .75, HH, G5, PL

2шт.

12

BN50051

NUT,1/4"-20, USR

2шт.

13

BN9265

Foam Marker RH

1шт.

Shown

1шт.

BN9266

Foam Marker LH

1шт.

Same Part Of Tube, Foam Marker RH, P/N BN9265 But Opposite Side

1шт.

14

BN29599

PIN,9.53mm OD x 64mm L

Rework Bolt 3/8"-16 x 2.75

7шт.

15

BN50061

LOCK NUT

3/8"-16, UNC, Whiz

14шт.

16

BN71006

COTTER PIN

1/8", #11

7шт.

17

BN74448

CLAMP

1" square tubing

25шт.

18

BN89811

TUBE

1" X 1" X 12 GA X 85.25

1шт.

19

BN89810

TUBE

1" X 1" 12 GA X 29.50

1шт.

20

BN89813

TUBE

1" X 1 X 12 GA SQ. X 164.5

1шт.

21

BN32823

PLUG

Cap - Tubing - Fits 1 x 1 x 14G

6шт.

22

BN53858

EPDM 3/4" ID X 4.25"

10шт.

23

BN53738

FLEXIBLE HOSE,0.75" ID x 18.50"

2шт.

Выбрано товаров: 36
