Запчасти Case IH PATRIOT XL (09-028[02]) - 60 3-BOOM SHUTOFF-20" ON CENTER-NOZZLES, LH BOOM 5-WAY NOZZLES Liquid Plumbing

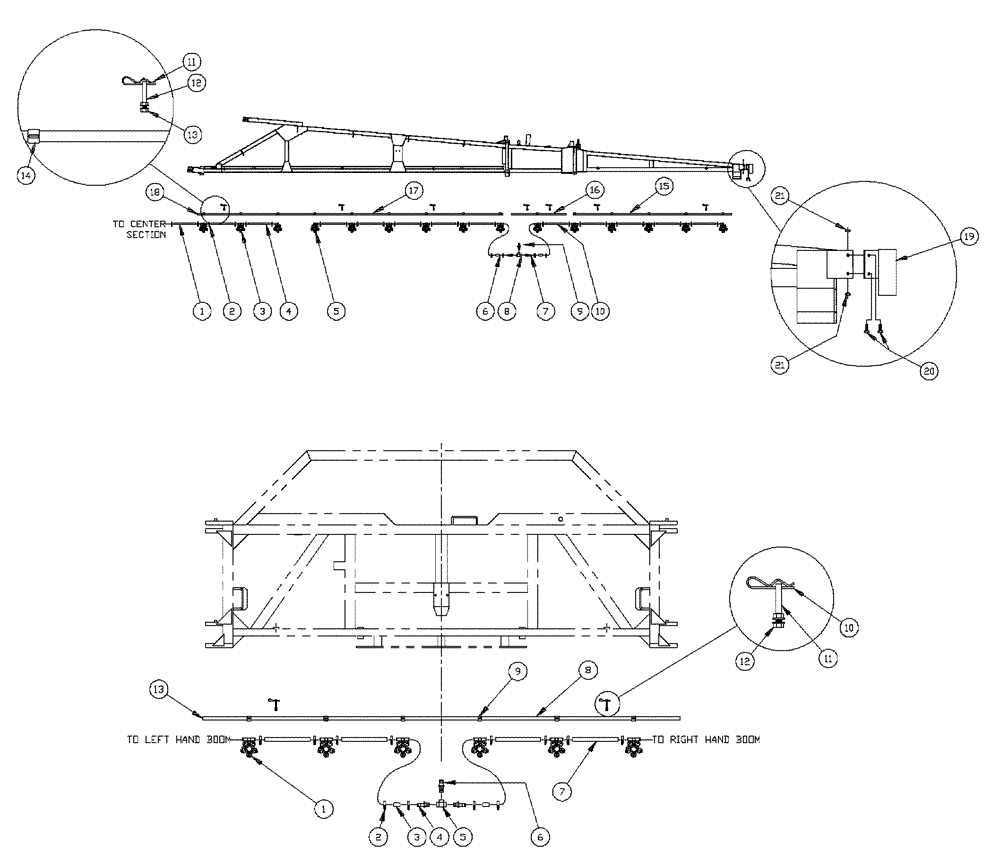

Схема запчастей Case IH PATRIOT XL - (09-028[02]) - 60 3-BOOM SHUTOFF-20" ON CENTER-NOZZLES, LH BOOM 5-WAY NOZZLES Liquid Plumbing
6
1
12
9
19
2
13
12
13
8
15
16
5
8
11
18
7
11
1
21
7
17
21
6
10
3
2
9
4
3
4
5
20
14
10

Артикул

Название

Примечание

Количество

1

BN53748

HOSE,0.75" ID x 30.00"

EPDM

1шт.

2

BN75978

HOSE CLAMP

SS-#12 ADJ. HS .56-1.25

30шт.

3

BN68699

NOZZLE

5 way double, 3/4" SHA

12шт.

Shown

1шт.

3

BN74621

NOZZLE

3-Way Double 3/4" SHA

12шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

3

BN74617

NOZZLE

1 way double, with cap, 3/4" SHA

12шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

4

BN53738

FLEXIBLE HOSE,0.75" ID x 18.50"

12шт.

5

BN69475

NOZZLE

5 way single, 3/4" SHA

3шт.

Shown

1шт.

5

BN74622

NOZZLE

3 way single, with cap, 3/4" SHA

3шт.

1

BN74617

NOZZLE

1 way double, with cap, 3/4" SHA

6шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

2

BN75978

HOSE CLAMP

SS-#12 ADJ. HS .56-1.25

12шт.

3

BN53737

FLEXIBLE HOSE,0.75" ID x 7.50"

2шт.

4

BN53666

FITTING

barb-1 NPT X 3/4 Hose

2шт.

5

BN73629

TEE

1" Poly Pipe

1шт.

6

BN53667

COUPLING

Camlock-Male, Serial Range: (Thd)-Male

1шт.

7

BN53738

FLEXIBLE HOSE,0.75" ID x 18.50"

4шт.

8

BN24486

TUBE

1" Sq x 124"

1шт.

9

BN74448

CLAMP

1" square tubing

6шт.

10

BN71006

COTTER PIN

1/8", #11

2шт.

11

BN29599

PIN,9.53mm OD x 64mm L

Rework Bolt 3/8"-16 x 2.75

2шт.

12

BN50061

LOCK NUT

3/8"-16, UNC, Whiz

4шт.

13

BN32823

PLUG

Cap - Tubing - Fits 1 x 1 x 14G

2шт.

Выбрано товаров: 26
