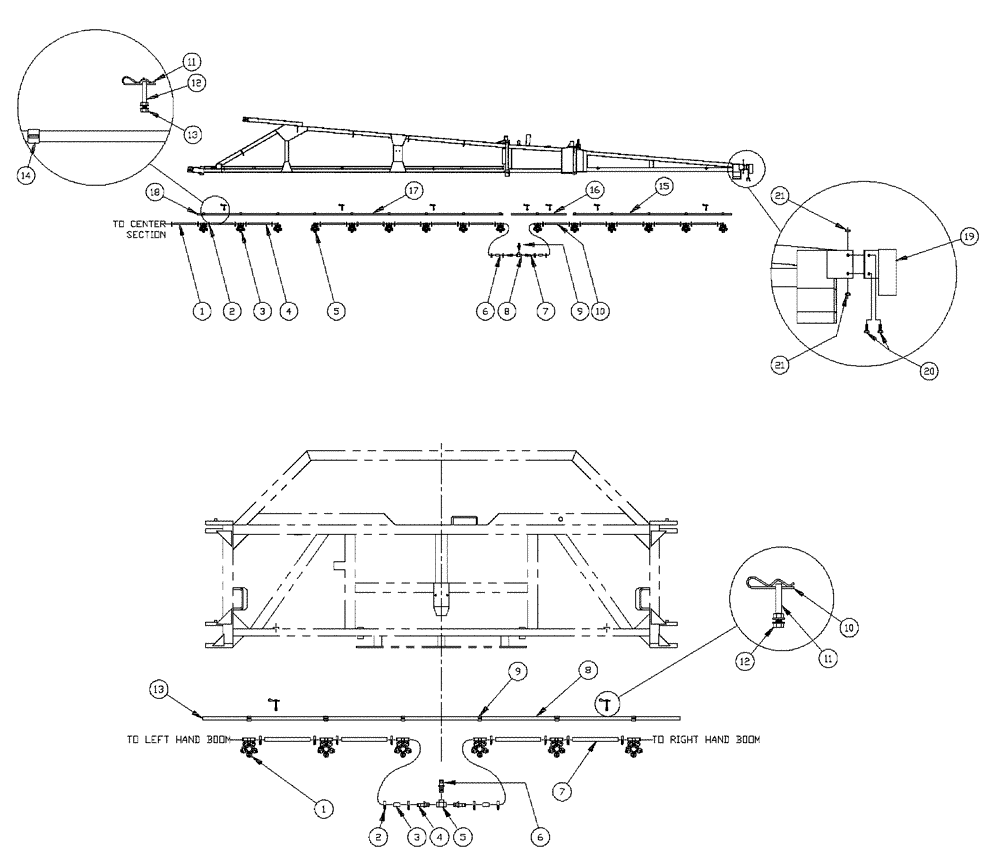

Запчасти Case IH PATRIOT XL (09-028[01]) - 60 3-BOOM SHUTOFF-20" ON CENTER-NOZZLES, RH BOOM 5-WAY NOZZLES Liquid Plumbing

1

BN53748

HOSE,0.75" ID x 30.00"

EPDM

1шт.

2

BN75978

HOSE CLAMP

SS-#12 ADJ. HS .56-1.25

30шт.

3

BN68699

NOZZLE

5 way double, 3/4" SHA

12шт.

Shown

1шт.

3

BN74621

NOZZLE

3-Way Double 3/4" SHA

12шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

3

BN74617

NOZZLE

1 way double, with cap, 3/4" SHA

12шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

4

BN53738

FLEXIBLE HOSE,0.75" ID x 18.50"

12шт.

5

BN69475

NOZZLE

5 way single, 3/4" SHA

3шт.

Shown

1шт.

5

BN74622

NOZZLE

3 way single, with cap, 3/4" SHA

3шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

5

BN74618

Nozzle-1-way Single 3/4" SHA

3шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

6

BN27905

HOSE,19.05mm ID x 304.8mm L

EPDM 3/4" ID x 12"

2шт.

7

BN53666

FITTING

Barb - 1 NPT X 3/4 Hose

2шт.

8

BN73629

TEE

1" Poly Pipe

1шт.

9

BN53667

COUPLING

Camlock-Male, Serial Range: (Thd)-Male

1шт.

10

BN53739

EPDM 3/4" ID X 42.0"

1шт.

11

BN71006

COTTER PIN

1/8", #11

7шт.

12

BN29599

PIN,9.53mm OD x 64mm L

Rework Bolt 3/8"-16 x 2.75

7шт.

13

BN50061

LOCK NUT

3/8"-16, UNC, Whiz

14шт.

14

BN74448

CLAMP

1" square tubing

15шт.

15

BN89811

TUBE

1" X 1" X 12 GA X 85.25

1шт.

16

BN89810

TUBE

1" X 1" 12 GA X 29.50

1шт.

17

BN89813

TUBE

1 X 1 X 12 GA SQ. X 164.5

1шт.

18

BN32823

PLUG

Cap - Tubing - Fits 1 x 1 x 14G

6шт.

19

BN9265

Foam Marker RH

1шт.

Shown

1шт.

19

BN9266

Foam Marker LH

1шт.

20

BN50211

BOLT

1/4"-20 x .75, HH, G5, Pl

2шт.

21

BN50051

NUT,1/4"-20, USR

2шт.
