(09-027[03]) - 60 3-BOOM SHUTOFF-10" ON CENTER-NOZZLES, CENTER BOOM 5-WAY NOZZLES

Запчасти Case IH PATRIOT XL (09-027[03]) - 60 3-BOOM SHUTOFF-10" ON CENTER-NOZZLES, CENTER BOOM 5-WAY NOZZLES Liquid Plumbing

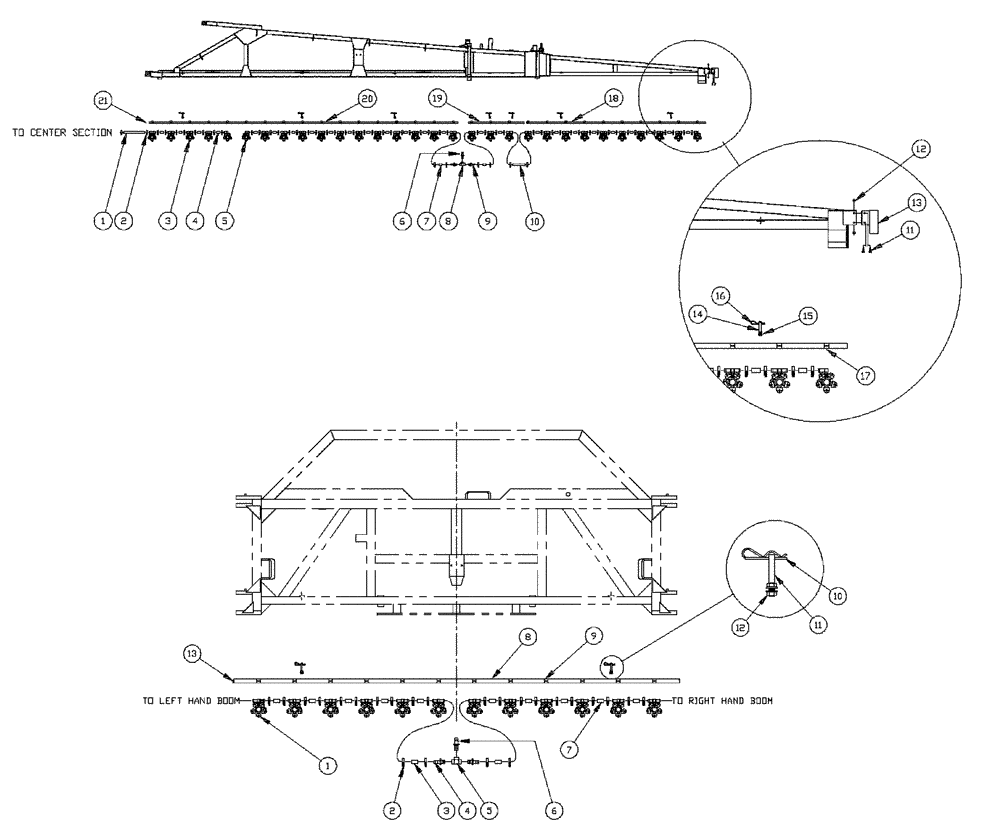

Схема запчастей Case IH PATRIOT XL - (09-027[03]) - 60 3-BOOM SHUTOFF-10" ON CENTER-NOZZLES, CENTER BOOM 5-WAY NOZZLES Liquid Plumbing
15
18
9
17
1
4
2
12
8
5
13
9
6
11
6
3
2
10
19
4
1
7
21
16
14
7
13
5
11
8
10
12
20
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

11

BN50211

BOLT

1/4"-20 x .75, HH, G5, PL

2шт.

12

BN50051

NUT,1/4"-20, USR

2шт.

13

BN9265

Foam Marker RH

1шт.

Shown

1шт.

BN9266

Foam Marker LH

1шт.

Same Part Of Tube, Foam Marker RH, P/N BN9265 But Opposite Side

1шт.

14

BN29599

PIN,9.53mm OD x 64mm L

Rework Bolt 3/8"-16 x 2.75

7шт.

15

BN50061

LOCK NUT

3/8"-16, UNC, Whiz

14шт.

16

BN71006

COTTER PIN

1/8", #11

7шт.

17

BN74448

CLAMP

1" square tubing

30шт.
