Запчасти Case IH PATRIOT XL (09-024) - 60 3-BOOM SHUTOFF-DICKEY-JOHN® LH BOOM Liquid Plumbing

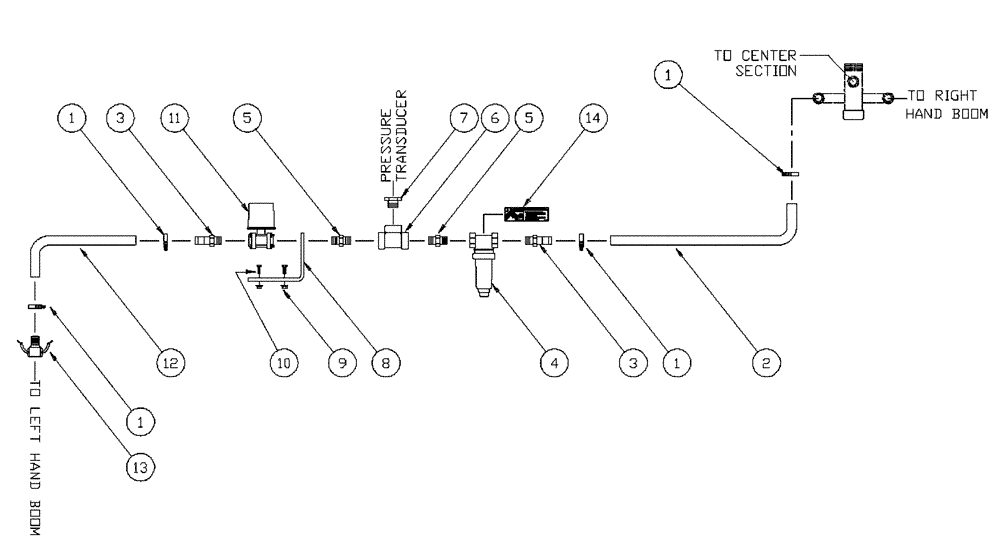

Схема запчастей Case IH PATRIOT XL - (09-024) - 60 3-BOOM SHUTOFF-DICKEY-JOHN® LH BOOM Liquid Plumbing
4
3
1
3
1
5
10
9
5
14
12
11
6
2
7
8
1
13
1

Артикул

Название

Примечание

Количество

1

BN75990

HOSE CLAMP

#16, Stainless Steel

4шт.

2

BN53758

HOSE,222.00"

1шт.

3

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

2шт.

4

BN73681

FILTER STRAINER

Assembly 1 "- 50 Mesh

1шт.

5

BN73648

NIPPLE

1" Short Poly Pipe

2шт.

4a

BN73679

FILTER STRAINER

SCREEN, 50 MESH

1шт.

6

BN73629

TEE

1" Poly Pipe

1шт.

4b

84222934

SCREEN,80 Mesh Screen

80 MESH

1шт.

7

BN53665

BUSHING

1" x .75 Poly

1шт.

8

BN24083

MOUNTING PLATE

7 GA HRS 3.0 x 5.75/2

1шт.

9

BN50051

NUT,1/4"-20, USR

2шт.

10

BN50211

BOLT

1/4"-20 x .75, HH, G5, PL

2шт.

11

87389559

VALVE

Electric, 1" Ball

1шт.

12

BN53871

1" EPDM X 18.0"

1шт.

13

BN53668

COUPLING

1" Female, HS SHK

1шт.

14

BN67243

DECAL

Strainer Pressure

1шт.

Выбрано товаров: 16
