Запчасти Case IH PATRIOT XL (09-019) - 750 GALLON SPHERICAL-RINSE TANK & DECK Liquid Plumbing

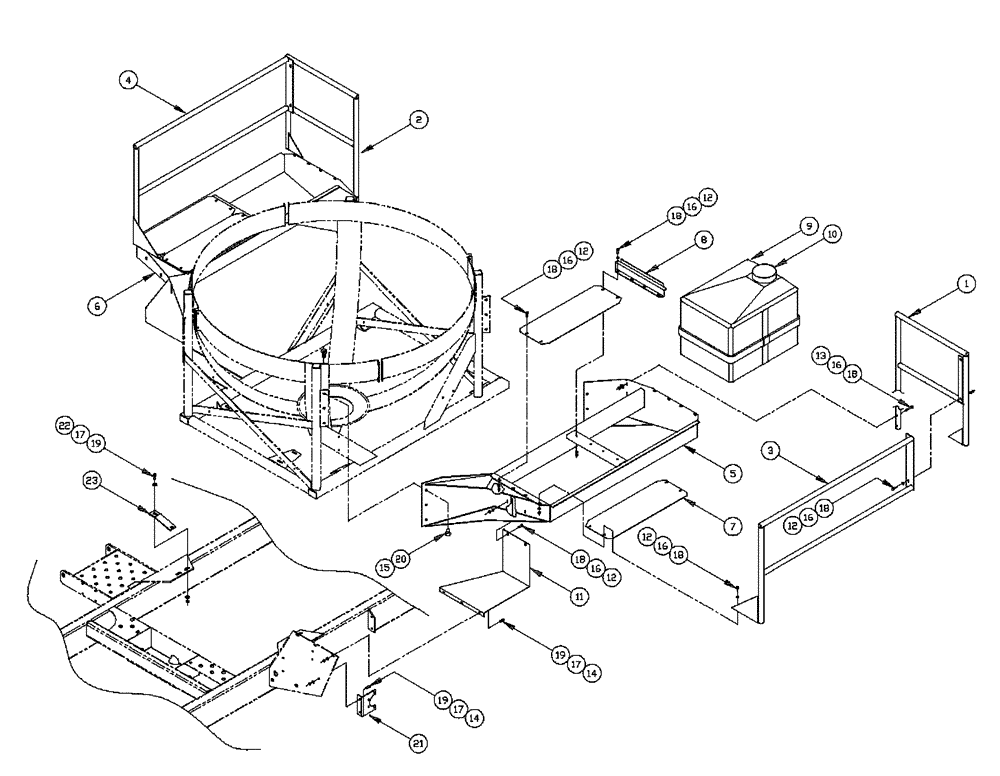

Схема запчастей Case IH PATRIOT XL - (09-019) - 750 GALLON SPHERICAL-RINSE TANK & DECK Liquid Plumbing
19
16
17
10
18
14
18
17
16
18
15
7
16
5
19
16
13
12
12
18
3
2
12
18
22
23
6
16
21
4
18
20
8
9
17
11
16
12
19
1
14
12

Артикул

Название

Примечание

Количество

1

BN65109

SIDE RAIL

End LH

1шт.

?

BN65171

SIDE RAIL

End RH

1шт.

3

BN67912

RAIL

Side Safety LH

1шт.

4

BN68000

RAIL

Side Safety RH

1шт.

5

BN68006

PLATFORM ASSY.

Walkway Mount LH

1шт.

6

BN68005

PLATFORM ASSY.

Walkway Mount RH

1шт.

7

BN68001

PLATE

Sheet, Deck

4шт.

8

BN25399

PLATE

Clamp 12 ga x 4.5 x 17

2шт.

9

BN68008

TANK

35 Gallon

1шт.

10

BN24183

COVER

Rinse Tank (Ace)

1шт.

11

BN67918

STEP

1шт.

12

BN50232

BOLT,5/16"-18 x 1.00", Stainless Steel

22шт.

13

BN50239

BOLT,5/16"-18 x 1.75", Stainless

4шт.

14

BN50254

BOLT,3/8"-16 x 1", Stainless

5шт.

15

BN50691

BOLT,Hex, 1/2" - 13 x 1", SST

1/2"-13 x 1, Stainless Steel

12шт.

16

BN50142

WASHER,5/16", Stainless Steel

44шт.

17

BN50145

WASHER

3/8, G5

7шт.

18

280736

NUT,5/16"-18, GC

22шт.

19

BN50061

LOCK NUT

3/8"-16, UNC, Whiz

6шт.

20

86992215

LOCK NUT,1/2"-13, GC

12шт.

21

BN29447

BRACKET

10 ga HRS 5.92" x 6.25"

1шт.

22

BN50403

BOLT

Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

23

BN69759

SUPPORT

Mount - Plumbing

1шт.

Выбрано товаров: 23
