Запчасти Case IH PATRIOT XL (09-015) - 750 GALLON SPHERICAL-SUCTION Liquid Plumbing

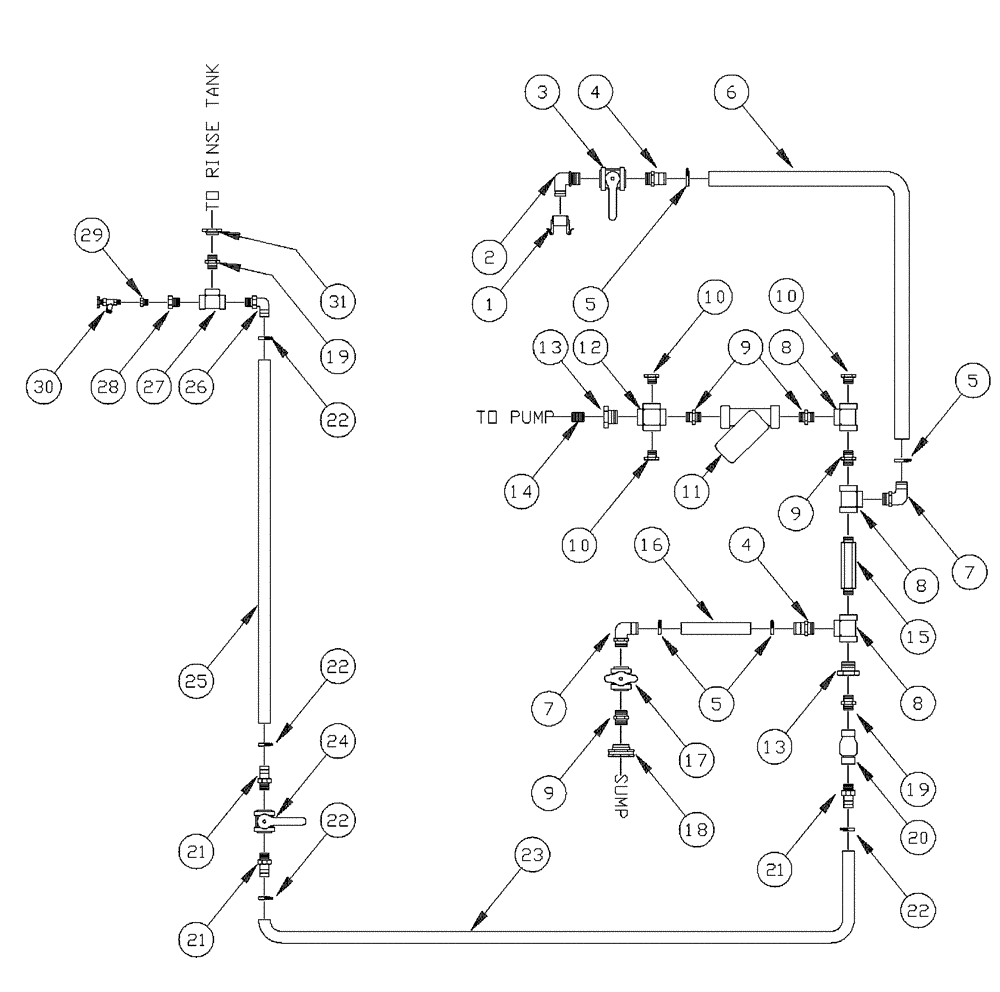

Схема запчастей Case IH PATRIOT XL - (09-015) - 750 GALLON SPHERICAL-SUCTION Liquid Plumbing
21
22
15
13
7
16
5
29
24
26
10
31
6
5
20
30
28
5
22
1
8
21
7
8
27
23
21
9
10
3
4
13
8
12
25
19
22
14
2
11
9
19
10
18
22
17
4
9

Артикул

Название

Примечание

Количество

1

BN22901

DUST CAP,2" Cam Lever Dust Cap

2" Cam Lever

1шт.

2

BN25262

ELBOW

90°, 2" NPT

1шт.

3

BN73761

VALVE,2" NPT x 2" NPT

Ball, 2" Full Port

1шт.

4

BN73781

FITTING,2" Male NPT x 2" Hose Barb, Poly

2" NPT x 2" Hose Barb

2шт.

5

BN76056

HOSE CLAMP

#36

4шт.

6

BN68377

HOSE

2" EPDM x 50"

1шт.

7

401875A1

FITTING,2" Male Thread x 2" 90 Degree Hose Barb

2" MNPT x 2" Hose Barb, Poly

2шт.

8

BN73779

TEE,2" Poly Tee

2" Poly Pipe

3шт.

9

BN73783

NIPPLE

2" NPT Short Poly

3шт.

10

BN73794

PLUG,2" Male NPT, Poly

2" Poly Pipe

3шт.

11

BN73792

FILTER STRAINER,2" NPT, 30 Mesh

2" NPT - 30 Mesh Poly

1шт.

12

BN73791

CROSS

2" NPT Poly

1шт.

13

BN73787

SLEEVE

Bushing - 2"-1 1/2"

2шт.

14

BN73320

NIPPLE

1.5" NPT Close, SS

1шт.

15

BN73786

NIPPLE

Pipe, Poly, 2" x 4"

1шт.

16

BN65559

HOSE

2" EPDM x 9.00"

1шт.

17

BN73795

VALVE,Full Port; 2 Inch; T Handle

2" Full Port w/Thd

1шт.

18

BN73784

FITTING

Bulkhead - 2"

1шт.

19

BN73727

NIPPLE,1-1/2" NPT x 1-1/4" NPT

1.5 x 1.25 Poly

2шт.

20

BN24567

CHECK VALVE

1 1/4" NPT

1шт.

21

87743696

FITTING

1-1/4" NPT X 1-1/4" Hose Barb, Poly

3шт.

22

BN76084

HOSE CLAMP

Adj. #24, SS

4шт.

23

BN53930

HOSE,68.00"

1шт.

24

BN73568

FITTING

3/4" NPT x 1/2" Hose Barb, Poly

1шт.

25

BN53929

HOSE,7.00"

1шт.

26

BN73663

ELBOW,90 Degree Elbow, 1-1/4" Male NPT x 1-1/4" Hose Barb, Poly

1-1/4" NPT x 1-1/4" Hose Barb, 90°, Poly

1шт.

27

BN73662

TEE

1-1/4", Poly

1шт.

28

BN73653

BUSHING,1-1/4" Male NPT x 3/4" Female NPT, Poly

Reducer, 1-1/4" MPT x 3/4" FPT, Poly

1шт.

29

BN73552

BUSHING,3/4" MPT x 1/2"FPT Reducing Bushing

Bushing - 3/4" x 1/2" NPT

1шт.

30

BN53817

DRAIN VALVE

Plastic, 1/2" NPT

1шт.

31

BN73733

FITTING

1 1/2" Bulkhead

1шт.

Выбрано товаров: 31
