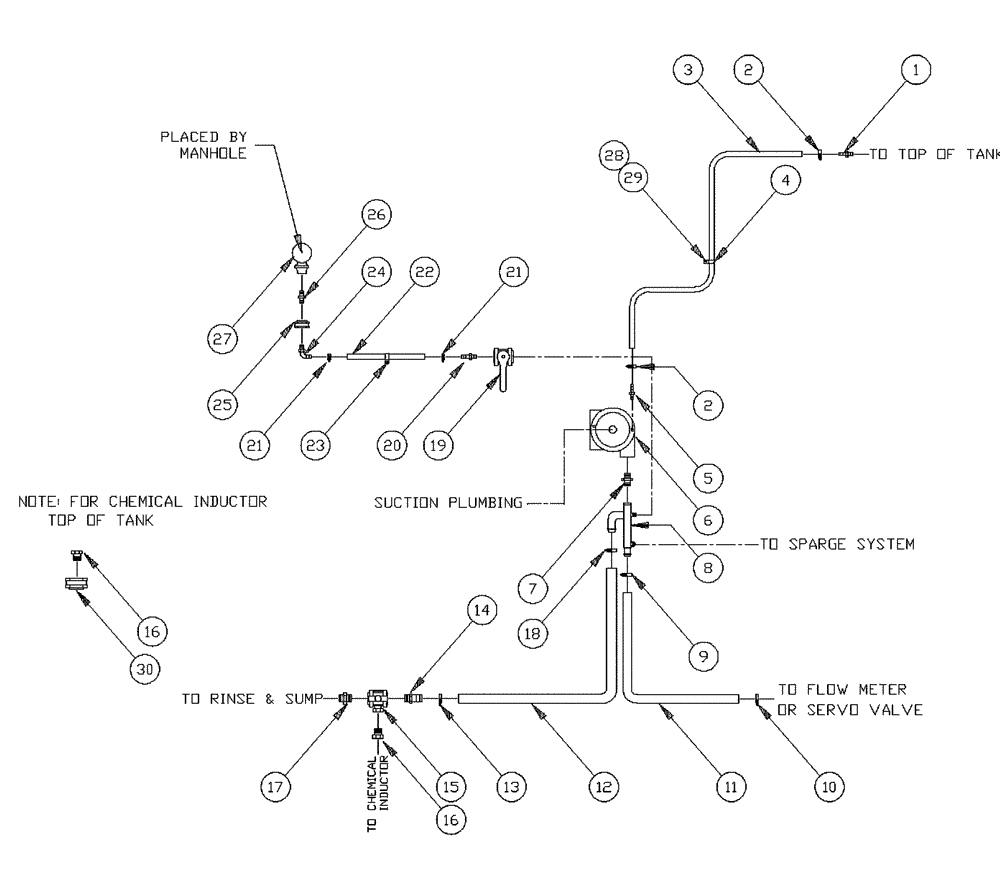

Запчасти Case IH PATRIOT XL (09-004) - 500 GALLON ELIPTICAL-PRESSURE Liquid Plumbing

1

BN53433

FITTING

1/4" NPT x 1/4" Hose Barb, Stainless Steel

1шт.

2

BN76094

HOSE CLAMP

SS #M4

2шт.

3

BN53785

HOSE,74.00"

1шт.

4

BN41859

CLAMP

9/16", Vinyl Covered

1шт.

5

BN72040

FITTING,1/8" MPT x 1/4" HB

Hose Barb, 1/8" NPT x 1/4" ID HS

1шт.

6

BN53670

HYDROSTATIC PUMP

Hypro w/HMI Motor

1шт.

BN53670R

REMAN-HYDROSTAT PUMP

PATRIOT XL (5/97 - 1/99)

1шт.

BN53670C

CORE-HYDROSTAT PUMP

Return Number

1шт.

7

BN73270

NIPPLE

Close 1.25 NPT SS

1шт.

8

BN29958

MANIFOLD

Liq. Product 770

1шт.

9

BN53810

HOSE CLAMP

1.75" ID "T" Bolt

1шт.

10

BN76084

HOSE CLAMP

Adj. #24, SS

1шт.

11

BN29909

HOSE

1.25" ID x 39" EPDM

1шт.

12

BN53754

HOSE,12.50"

1шт.

13

BN76093

HOSE CLAMP

#28, SS

1шт.

14

413083A1

PIPE FITTING,1-1/2" Male Thread x 1-1/2" Hose Barb

Hose Barb, 1 1/2"

1шт.

15

BN69410

VALVE,3/8-16 Banjo Bolt X 20MM Long Zinc Plt.

3-way, 1.5" Black

1шт.

16

BN73731

PLUG,1-1/2" Male NPT, Poly

1 1/2" Poly Pipe

2шт.

17

BN73715

NIPPLE,1-1/2" Short Poly Nipple

1 1/2" Short Poly

1шт.

18

BN53811

CLAMP

2" ID, T-bolt

1шт.

19

BN73564

VALVE

3/4" Ball Poly 2 Way

1шт.

20

BN73561

FITTING

Barb, 3/4 NPT X 3/4 HS

1шт.

21

BN75978

HOSE CLAMP

SS-#12 ADJ. HS .56-1.25

2шт.

22

BN53765

HOSE,85.00"

1шт.

23

86625038

CLAMP,25.4mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

24

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" NPT x 3/4" Hose Barb, 90°

1шт.

25

BN73563

BULKHEAD

1шт.

26

BN73649

NIPPLE,1" x 3/4" Poly Reducing Nipple

1" x 3/4" Poly

1шт.

27

29568

NOZZLE

Rinse 360 Degree

1шт.

28

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

1шт.

29

BN50054

NUT,1/4"-20, SS

1шт.

30

BN73733

FITTING

1 1/2" Bulkhead

1шт.
