Запчасти Case IH PATRIOT XL (09-001) - FOAM MARKER-HIGH VOLUME Liquid Plumbing

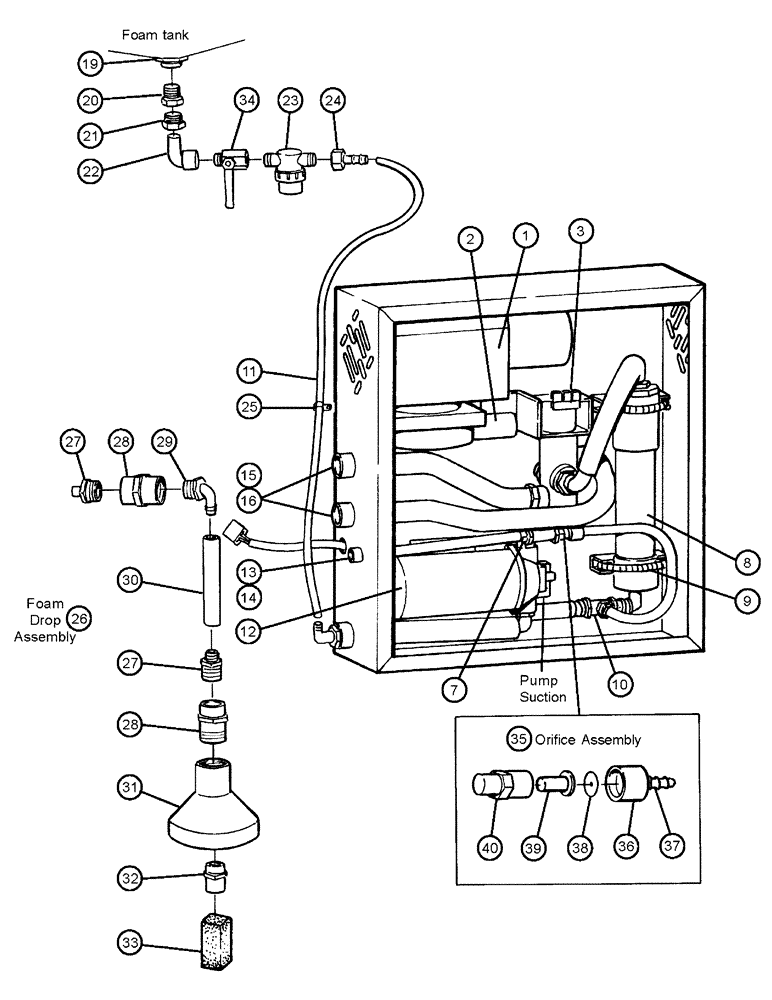

Схема запчастей Case IH PATRIOT XL - (09-001) - FOAM MARKER-HIGH VOLUME Liquid Plumbing
19
20
28
26
33
29
22
28
10
25
9
32
15
36
21
38
23
31
27
1
16
37
40
11
39
8
12
27
7
14
2
30
13
24
3
34

Артикул

Название

Примечание

Количество

1

BN27463

AIR COMPRESSOR

1шт.

2

BN27466

FILTER

Breather

1шт.

3

BN63912

HYDRAULIC VALVE

Directional Valve

1шт.

7

BN73408

TEE

Pump Output

1шт.

8

BN69056

TUBE

Mix Tube w/Fittings

1шт.

9

BN53888

PIPE CLAMP

Mix Tube

2шт.

10

BN27472

CHECK VALVE

Air Inlet 1/4" NPT X 3/8" Barb

1шт.

11

BN75959

FLEXIBLE HOSE

1/2" x 48"

1шт.

BN75956

CLAMP

#10 SS

2шт.

Associated Part Of Hose - 1/2" x 48", P/N BN75959

1шт.

12

BN27469

PUMP

Liquid

1шт.

13

BN73403

PIPE FITTING,1/4" Male Thread x 1/4" Hose Barb

1/4" NPTx 1/4" Barb

1шт.

14

BN75925

FLEXIBLE HOSE

1/4" x 120"

1шт.

To Gauge

1шт.

BN76094

HOSE CLAMP

SS #M4

2шт.

Associated Part Of Hose - 1/4" x 120" , P/N BN75925

1шт.

15

BN73519

ELBOW

1/2" NPT x 3/4" Hose Barb

2шт.

16

75980

HOSE

3/4" EVA x 43'

2шт.

60' Boom

1шт.

To LH & RH Foam Drop Ass'y

1шт.

16

BN75979

TUBE

Hose - 3/4" EVA x 50'

2шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

75' Boom

1шт.

16

BN66626

HOSE

3/4" EVA x 57.5'

2шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

90' Boom

1шт.

BN75978

HOSE CLAMP

SS-#12 ADJ. HS .56-1.25

4шт.

Associated Part Of Hose - 3/4" EVA x 43' , P/N BN75980

1шт.

19

BN73733

FITTING

1 1/2" Bulkhead

1шт.

20

BN73716

BUSHING,1-1/2" Male NPT x 3/4" Female NPT, Poly

1.5 x .75 Reducer Poly

1шт.

21

BN73552

BUSHING,3/4" MPT x 1/2"FPT Reducing Bushing

Bushing - 3/4" x 1/2" NPT

1шт.

22

BN73511

FITTING

90° 1/2" Female NPT x 1/2" Male NPT

1шт.

23

BN27473

FILTER STRAINER

Line, 80 Mesh

1шт.

BN98171

Screen - #80 Mesh

1шт.

Parts Of Strainer - Line Assembly 80 Mesh., P/N BN27473

1шт.

24

BN73518

FITTING

Barb - 1/2" Female NPT x 1/2" Barb

1шт.

25

86624005

CLAMP,19mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

26

BN27474

FOAM

Drop Assembly, Complete

2шт.

Includes Refs. 27 - 33

1шт.

27

BN53666

FITTING

Barb-1" NPTx 3/4" Barb

4шт.

28

BN73683

COUPLING

1" NPT

4шт.

29

BN73684

ELBOW

Barb, 90° 1" MPT x 3/4" Barb

2шт.

30

BN75981

TUBE

3/4" EVA x 12"

2шт.

BN75978

HOSE CLAMP

SS-#12 ADJ. HS .56-1.25

4шт.

Associated Part Of Tube - 3/4" x 12", P/N BN75981

1шт.

31

BN27475

FOAM

BELL, Drop

1шт.

BN76093

HOSE CLAMP

#28, SS

2шт.

Associated Part Of Tube - 3/4" x 12", P/N BN27475

1шт.

32

BN73648

NIPPLE

1" Short Poly Pipe

2шт.

33

BN27462

SCREEN

2шт.

34

BN63914

HYDRAULIC VALVE

Shut Off

1шт.

35

BN301731

ORIFICE

1шт.

Includes Refs. 36 - 40

1шт.

36

BN301711

FILTER

Body Cap

1шт.

37

BN301712

CAP

Body x 1/4" HB

1шт.

38

BN301710

ORIFICE

HV #35

1шт.

39

BN27471

FILTER

100 Mesh

1шт.

40

BN301709

FILTER

Body, 1/4" MPT

1шт.

NSS

NOT SOLD SEPARAT

Gauge - Pressure

1шт.

Not Shown

1шт.

See Fig. 01-002

1шт.

NSS

NOT SOLD SEPARAT

Barb - 1/4" Gauge

1шт.

Not Shown

1шт.

See Fig. 01-002

1шт.

NSS

NOT SOLD SEPARAT

Speed Control

1шт.

Not Shown

1шт.

See Fig. 01-001

1шт.

Выбрано товаров: 67
