Запчасти Case IH PATRIOT XL (06-013) - SHIFT BLOCK-REPLACEMENT PARTS S/N 1882 & BELOW(FACTORY INSTALLED ON PATRIOTS S/N 1882 & BELOW.) Hydraulic Plumbing

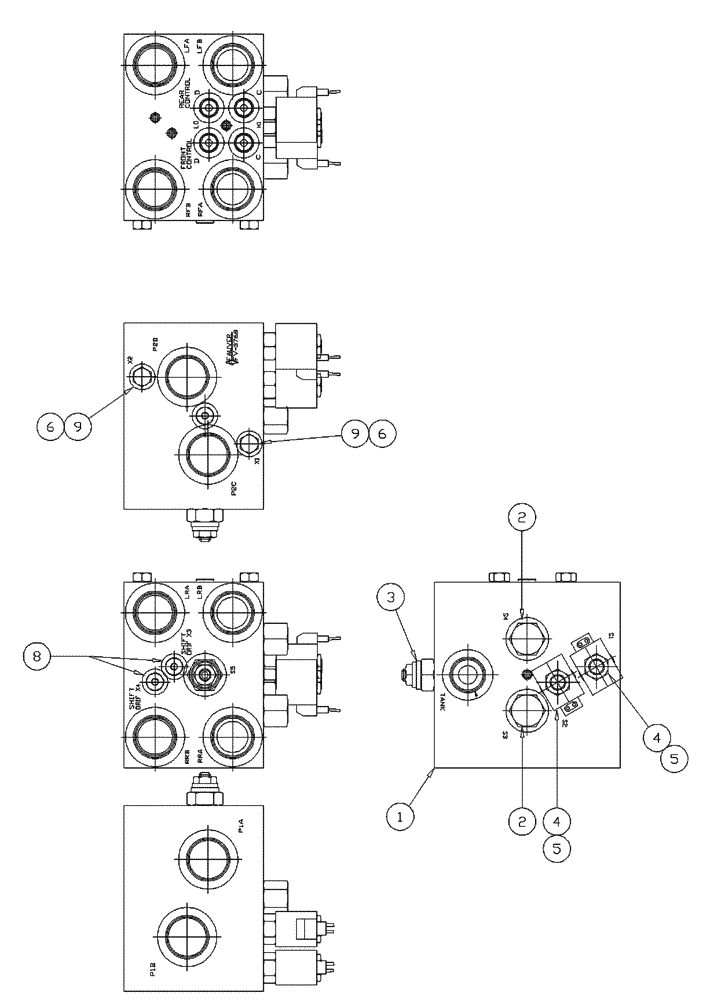

Схема запчастей Case IH PATRIOT XL - (06-013) - SHIFT BLOCK-REPLACEMENT PARTS S/N 1882 & BELOW(FACTORY INSTALLED ON PATRIOTS S/N 1882 & BELOW.) Hydraulic Plumbing
2
1
5
9
8
3
6
6
2
9
4
4
5

Артикул

Название

Примечание

Количество

1

BN98584

MANIFOLD

Swiss Cheese

1шт.

2

BN98209

HYDRAULIC VALVE

Shuttle

2шт.

BN98213

SEAL KIT

for 98209

2шт.

Service Parts For Ref. 2

1шт.

3

BN98210

VALVE PRESSURE RELIE

1шт.

BN98214

SEAL KIT

for 98210

1шт.

Service Parts For Ref. 3

1шт.

4

BN98585

CARTRIDGE

Solenoid

2шт.

BN98586

SEAL KIT

for 98585

2шт.

Service Parts For Ref. 4

1шт.

5

BN98212

COIL

12 VDC Unloader Valve - W/Wire Leads & Packard Ends

2шт.

6

BN53991

PLUG

Hex,with O-ring

5шт.

BN98469

O-RING

5шт.

Associated Part Of Hex Plug with O-Ring, P/N BN53991

1шт.

8

BN300314

ORIFICE

.020 shift

2шт.

9

BN300313

ORIFICE

.070 Load Share

2шт.

Выбрано товаров: 16
