Запчасти Case IH PATRIOT XL (06-010) - VALVE-7-BANK DIRECTIONAL Hydraulic Plumbing

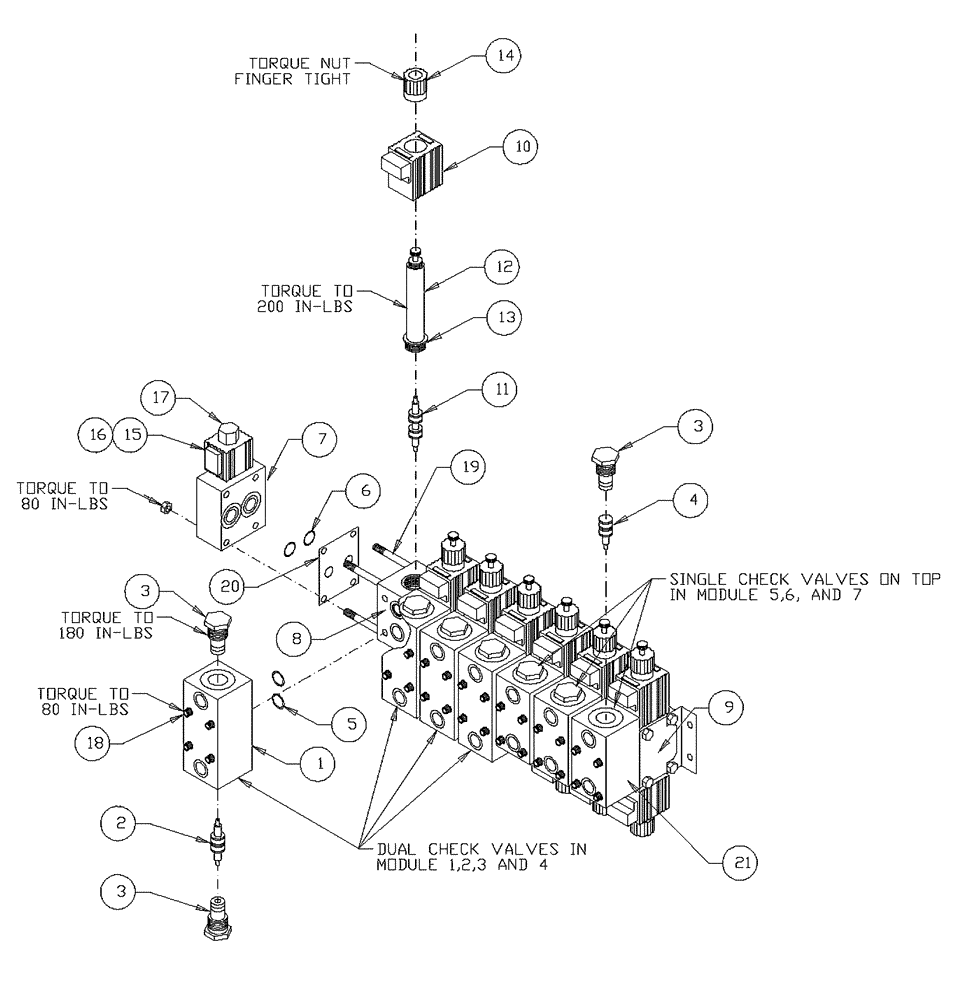

Схема запчастей Case IH PATRIOT XL - (06-010) - VALVE-7-BANK DIRECTIONAL Hydraulic Plumbing
3
17
3
1
13
7
5
15
11
21
2
6
10
14
18
12
16
8
19
4
9
3
20

Артикул

Название

Примечание

Количество

1

BN98677

BLOCK

Check (Dual)

4шт.

2

BN98679

CHECK VALVE

Piston, Dual, 29345

4шт.

3

BN98227

VALVE

30 PSI Waterman

11шт.

Top & Bottom on Dual Check Module #1, #2, #3, #4. Top Only on Single Check Module #5, #6, #7

1шт.

BN98219

SEAL KIT

For #98227

11шт.

Service Parts For Ref. 3

1шт.

4

BN98680

PISTON

(For Single Check)

3шт.

5

BN98225

O-RING

Stacking Valve #29345

14шт.

6

BN98226

O-RING

Sandwich Valve #29345

14шт.

7

BN98336

HYDRAULIC VALVE

Block - Unloader

1шт.

Includes Refs. 15, 16, & 17

1шт.

8

BN98325

BLOCK

Centers

6шт.

9

BN98324

BLOCK

End

1шт.

10

BN98222

COIL

W/Wire Leads & Packard Ends

14шт.

11

BN98220

SPOOL

7шт.

12

BN98221

TUBE

Assy

14шт.

Includes Ref. 13

1шт.

13

BN98224

O-RING

Tube Assy #98221

14шт.

14

BN98223

NUT

14шт.

15

BN98212

COIL

12 VDC Unloader Valve - W/Wire Leads & Packard Ends

1шт.

16

BN98217

CARTRIDGE

Unloader Valve #29345

1шт.

BN98219

SEAL KIT

For #98217

1шт.

Service Parts For Ref. 16

1шт.

17

BN98218

NUT

Unloader Valve #29345

1шт.

18

BN50799

SCREW,1/4" - 20 x 2 1/4", Stainless

1/4 - 20 X 2.25 SS

28шт.

BN50139

WASHER

1/4" spring lock

28шт.

Associated Part Of Bolt - 1/4" NC x 2 1/4" Allen Head Capscrew, P/N BN50799

1шт.

19

BN24141

THREADED TIE-ROD

1/4"-20 x 15-3/4"

4шт.

Shown

1шт.

7 Bank

1шт.

19

BN24156

THREADED TIE-ROD

1/4"-20 x 17-3/4"

4шт.

8-Bank

1шт.

19

280129

NUT,1/4"-20

4шт.

Associated Part Of Threaded Rod -1/4-20 x 15 3/4", P/N BN24141

1шт.

20

86986508

PLATE

Backing, Anodized

7шт.

21

BN98678

BLOCK

Check (Single)

3шт.

86986492

HYDRAULIC VALVE

7 Bank

1шт.

Associated Part Of Check Valve Block (Single), P/N BN98678

1шт.

Shown

1шт.

21

BN25223A

HYDRAULIC VALVE

Complete 8-Bank Valve

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

BN25229

SHIELD

7 & 8 Bank Valve - Cover

1шт.

Associated Part Of Complete 8-Bank Valve Waterman), P/N BN25223A

1шт.

BN25230

MOUNTING PLATE

7 & 8 Bank Valve Cover

1шт.

Associated Part Of Complete 8-Bank Valve Waterman), P/N BN25223A

1шт.

Выбрано товаров: 45
