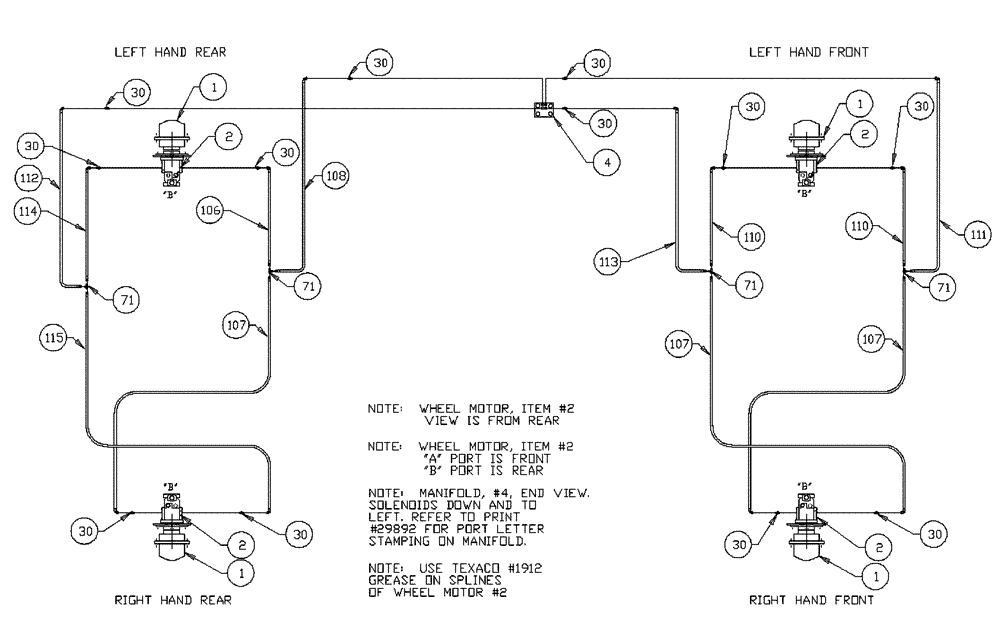

Запчасти Case IH PATRIOT XL (06-005) - HYDRAULIC PLUMBING-WHEEL MOTORS (S/N 571-1120) Hydraulic Plumbing

1

NSS

NOT SOLD SEPARAT

Hub, Planetary-Front Model #7

2шт.

See Fig. 06-001 for Seals & Repair Parts

1шт.

1

NSS

NOT SOLD SEPARAT

Hub, Planetary-Rear w/Brake Model #7

2шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

See Fig. 06-001 for Seals & Repair Parts

1шт.

NSS

NOT SOLD SEPARAT

Cap - Hub Cover

4шт.

Associated Part Of Hub--Planetary-Rear w/Brake, P/N NSS

1шт.

See Fig. 08-001

1шт.

2

NSS

NOT SOLD SEPARAT

Wheel Motor

4шт.

See Fig. 08-001

1шт.

4

BN69418

BLOCK

Valve, Manifold

1шт.

See Fig. 08-014 for Seals & Repair Parts

1шт.

30

BN51589

FITTING

STR.-9/16-18 O-Ring x 7/16-20 JIC

12шт.

BN98019

O-RING

#6

12шт.

Associated Part Of Adapter STR. 9/16-18 O-Ring x 7/16-20 JIC, P/N BN51589

1шт.

71

BN21422

TEE

7/16-20 JIC

4шт.

106

BN54233

HOSE

1/4" x 87"

1шт.

107

BN54232

HOSE

1/4" x 119", 100R1

3шт.

108

BN54149

HOSE,0.25" ID x 132.00", SAE 100R1

1шт.

110

BN54177

HOSE

1/4" ID x 96", 100R1

2шт.

111

BN54152

HOSE,0.25" ID x 42.00", SAE 100R1

Assembly

1шт.

112

BN54211

HOSE

1/4" x 132", long 90° elbow

1шт.

113

BN54212

HOSE

1 /4" x 42", long 90° elbow

1шт.

114

BN54230

HOSE

1/4" x 93"

1шт.

115

BN54217

HOSE

1/4" x 113"

1шт.
