Запчасти Case IH PATRIOT XL (06-004) - HYDRAULIC PLUMBING-WHEEL MOTORS (S/N 1121 & UP) Hydraulic Plumbing

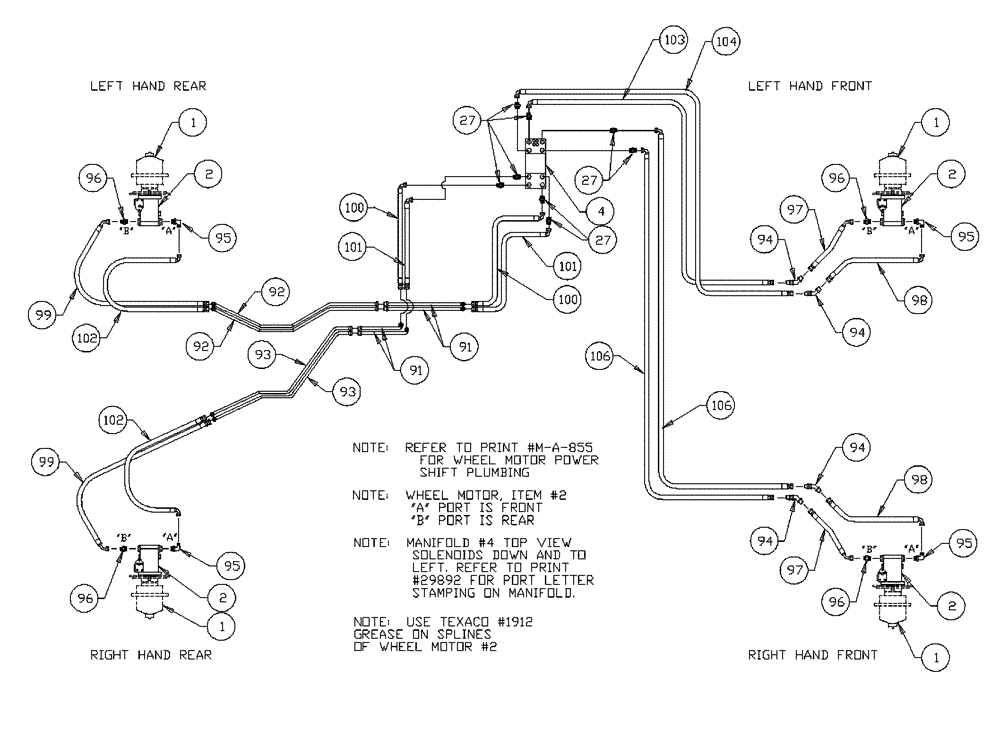

Схема запчастей Case IH PATRIOT XL - (06-004) - HYDRAULIC PLUMBING-WHEEL MOTORS (S/N 1121 & UP) Hydraulic Plumbing
1
94
1
97
2
2
95
103
102
96
96
93
91
95
2
99
93
1
99
96
100
94
95
95
94
106
96
92
27
98
94
106
92
91
97
2
98
104
4
27
1
100
27
101
101
102

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Hub, Planetary-Front Model #7

2шт.

See Fig. 06-001 for Seals & Repair Parts

1шт.

1

NSS

NOT SOLD SEPARAT

Hub, Planetary-Rear w/Brake Model #7

2шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

See Fig. 06-001 for Seals & Repair Parts

1шт.

2

NSS

NOT SOLD SEPARAT

Wheel Motor

4шт.

See Fig. 08-001

1шт.

4

BN69418

BLOCK

Valve, Manifold

1шт.

See Fig. 08-014 for Seals & Repair Parts

1шт.

27

BN21417

FITTING,1 5/16"-12 O-Ring x 1 1/16"-12, 37 Degree

8шт.

BN98016

O-RING

SAE-16 Buna N

8шт.

Associated Part Of Adapter STR. 1 5/16-12 O-Ring x 1 1/16-12 JIC, P/N BN21417

1шт.

91

BN24931

TUBE

steel, 3/4" front

4шт.

92

BN24932

TUBE

steel, 3/4" LH, rear

2шт.

93

BN24933

TUBE

steel, 3/4" RH, rear

2шт.

94

BN53959

ELBOW

Fitting - 45° Bulkhead 3/4" JIC

4шт.

95

BN53927

ADAPTER

90º 16 O-Ring-12 JIC

4шт.

96

BN21417

FITTING,1 5/16"-12 O-Ring x 1 1/16"-12, 37 Degree

4шт.

BN98016

O-RING

SAE-16 Buna N

4шт.

Associated Part Of Adapter STR. 1 5/16"-16 O-Ring x 12 JIC, P/N BN21417

1шт.

97

BN55229

HOSE

3/4" x 19" (High Pressure)

2шт.

98

BN55230

HOSE

3/4" x 25" (High Pressure)

2шт.

99

BN55231

HOSE,0.75" ID x 85.25"

(High Pressure)

2шт.

100

BN53691

HOSE

3/4" x 22", high pressure

2шт.

101

BN53694

HOSE

3/4" x 27", high pressure

2шт.

102

BN55232

HOSE

3/4" x 89 1/4" (High Pressure)

2шт.

103

BN53695

HYDRAULIC HOSE,19.05mm ID x 2997.2mm L

(High Pressure)

1шт.

104

BN53696

HYDRAULIC HOSE,19.05mm ID x 3098.8mm L

(High Pressure)

1шт.

BN24219

High Pressure Hose

2шт.

Associated Part Of Hose Assembly, 3/4" x 122" (High Pressure), P/N BN53696

1шт.

BN50940

U-BOLT

(Hose Clamp)

4шт.

Associated Part Of Hose Assembly, 3/4" x 122" (High Pressure), P/N BN53696

1шт.

106

BN55234

HYDRAULIC HOSE,19.05mm ID x 3251.2mm L

(High Pressure)

2шт.

Выбрано товаров: 33
