Запчасти Case IH PATRIOT XL (06-003) - HYDRAULIC PLUMBING-STEERING 7-BANK VALVE Hydraulic Plumbing

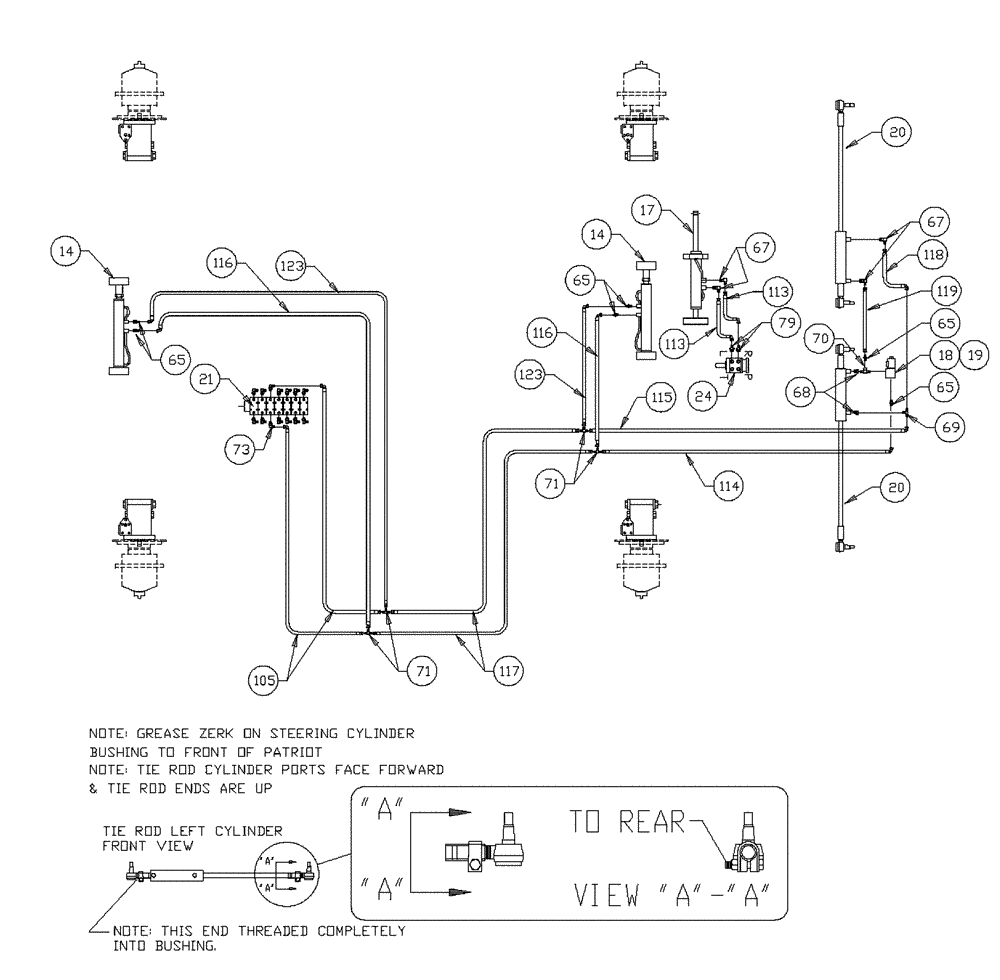

Схема запчастей Case IH PATRIOT XL - (06-003) - HYDRAULIC PLUMBING-STEERING 7-BANK VALVE Hydraulic Plumbing
119
117
105
71
79
17
118
123
18
70
65
71
113
116
21
73
116
65
20
69
67
114
14
20
19
24
65
68
67
65
113
115
14
123

Артикул

Название

Примечание

Количество

14

NSS

NOT SOLD SEPARAT

HYD. Cylinder-Axle Adjust

2шт.

Axle adjust cylinder - 67 7/16" (Cylinder retracted) Note - Rod end of cylinder must be to left side of unit.

1шт.

See Fig. 07-001

1шт.

17

BN63710

CYLINDER

HYD. -Steering

1шт.

See Fig. 07-010

1шт.

18

BN29788

CARTRIDGE

Solenoid Valve w/Coil

1шт.

BN98231

COIL

(For 29788)

1шт.

Associated Part Of Solenoid Valve W/Coil, P/N BN29788

1шт.

BN98204

O-RING

BUNA-N, for BN29788

1шт.

Associated Part Of Solenoid Valve W/Coil, P/N BN29788

1шт.

BN98205

O-RING

Top, Large (For BN29788)

1шт.

Associated Part Of Solenoid Valve W/Coil, P/N BN29788

1шт.

19

BN29789

BODY

Valve

1шт.

For Ref. 18

1шт.

20

NSS

NOT SOLD SEPARAT

HYD. Cylinder - Tie Rod

2шт.

Tie rod cylinder - Adjust For 1/4" - 1/2" Toe In (Front Of Tires 1/4"-1 /2" Less Than Rear Of Tires At Hub Center Linewith Tire Facing Ahead.) Adjust Toe In From Rod (Outer) End Of Cylinder

1шт.

See Fig. 07-011

1шт.

359775A1

END ASSY.

Tie Rod, RH 1"-16 Thread

4шт.

Associated Part Of Solenoid Valve W/Coil, P/N BN29788

1шт.

BN98805

COVER

Dust - Rubber

4шт.

Associated Part Of Solenoid Valve W/Coil, P/N BN29788

1шт.

Tie Rod End

1шт.

BN98806

JAM NUT

4шт.

Associated Part Of Solenoid Valve W/Coil, P/N BN29788

1шт.

Tie Rod End

1шт.

BN04851

CLAMP

Tie Rod End, With Bolt

4шт.

Associated Part Of Solenoid Valve W/Coil, P/N BN29788

1шт.

Tie Rod End

1шт.

21

NSS

NOT SOLD SEPARAT

Valve, 7 Bank

1шт.

See Fig. 08-010 for Seals & Repair Parts

1шт.

BN25229

SHIELD

7 & 8 Bank Valve - Cover

1шт.

Associated Part Of Valve--7 Bank, P/N NSS

1шт.

BN25230

MOUNTING PLATE

7 & 8 Bank Valve Cover

1шт.

Associated Part Of Valve--7 Bank, P/N NSS

1шт.

24

BN29233

HYDRAULIC STEERING

Control, Orbitrol

1шт.

BN98233

SEAL KIT

for BN29233

1шт.

Associated Part Of Orbitrol, Steering Control, P/N BN29233

1шт.

65

BN21355

ADAPTER,1/4"-18 NPT x 7/16-20 JIC

6шт.

67

BN21401

ELBOW,90 Degree 3/8" NPT x 7/16"-20 JIC

4шт.

68

BN51352

BUSHING

1/4-18 x 3/8-18 NPT

2шт.

69

BN53711

TEE

1/4 NPT x 7/16-20 JIC

1шт.

70

BN53712

TEE

1/4" NPT

1шт.

71

BN21422

TEE

7/16-20 JIC

4шт.

73

BN22160

ELBOW

90° 9/16-18 O-Ring X 7/16-20 JIC

14шт.

BN98019

O-RING

#6

14шт.

Associated Part Of Adapter, 90° 9/16-18 O-Ring x 7/16-20 JIC, P/N BN22160

1шт.

79

BN21249

ADAPTER,3/4" - 16 ORFS x 7/16" - 20 JIC

2шт.

BN98018

O-RING

#8

1шт.

Associated Part Of Adapter, 3/4-16 O-Ring x 7/16-20 JIC, P/N BN21249

1шт.

105

BN54161

HOSE,0.25" ID x 52.00", SAE 100R1

1шт.

113

BN53813

HOSE

1/4" x 58"

2шт.

114

BN54155

HOSE,0.25" ID x 33.00", SAE 100R1

1шт.

115

BN54156

HOSE,0.25" ID x 30.00", SAE 100R1

Assembly

1шт.

116

BN54157

Hose Assembly, 1/4" x 15"

1шт.

117

BN54158

HOSE,0.25" ID x 114.00", SAE 100R1

2шт.

118

BN54169

HOSE

Assembly, 1/4" x 44"

1шт.

119

BN53964

HOSE

1/4" ID x 15" 100R1

1шт.

123

BN54196

HOSE

1/4" x 18"

2шт.

Выбрано товаров: 58
