Запчасти Case IH PATRIOT XL (06-001) - HYDRAULIC PLUMBING-BASIC UNIT Hydraulic Plumbing

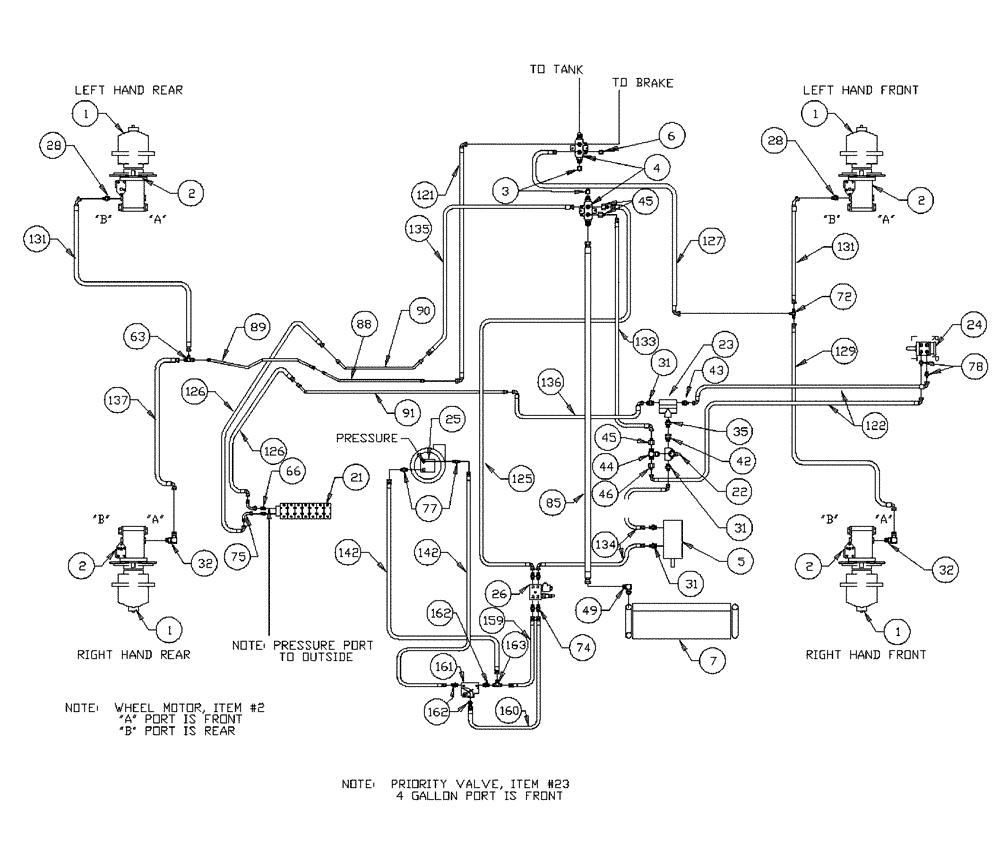

Схема запчастей Case IH PATRIOT XL - (06-001) - HYDRAULIC PLUMBING-BASIC UNIT Hydraulic Plumbing
2
35
6
142
25
44
3
2
1
26
135
31
122
24
5
1
22
43
45
134
31
160
2
1
159
163
125
126
129
23
142
127
74
28
162
121
32
161
137
63
77
85
91
131
49
136
4
89
46
72
75
90
28
66
126
7
21
45
88
42
2
133
162
78
1
32
31
131

Артикул

Название

Примечание

Количество

1

BN66385

HUB

Planetary-Front

2шт.

See Fig. 06-001 for Seals & Repair Parts

1шт.

BN66384

Rear W/Brake

2шт.

Same Part Of Hub-Planetary-Front, P/N BN66385 But Opposite Side

1шт.

See Fig. 06-001 for Seals & Repair Parts

1шт.

BN27372

CAP

hub cover

4шт.

Associated Part Of Hub-Planetary-Rear w/Brake, P/N BN66384

1шт.

2

BN54215

MOTOR

Wheel

4шт.

BN54215R

REMAN-HYD MOTOR

Patriot XL Sprayer, (5/97-1/99),

4шт.

BN54215C

CORE-HYDRAULIC PUMP

Return Number

1шт.

BN54033

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

4шт.

Service Parts For Ref. 2

1шт.

Between Hub & Wheel Motor

1шт.

BN98186

SEAL

lip, shaft

4шт.

Service Parts For Ref. 2

1шт.

87268405

SNAP RING

4шт.

Service Parts For Ref. 2

1шт.

3

BN22240

CROWN NUT,1-1/16"-12 , 37 Degree

2шт.

4

BN67245

MANIFOLD

Solenoid & Relief Valve

2шт.

5

BN67039

PUMP

Hydraulic Tandem CW Rotation

1шт.

BN98608

SEAL

shaft, for BN27195

1шт.

Service Parts For Ref. 5

1шт.

BN98609

REPAIR KIT

W/Wear Plates And Seals

1шт.

Service Parts For Ref. 5

1шт.

6

BN22431

CROWN NUT,3/4"-16, 37 Degree

1шт.

7

BN68157

HYD. Oil

1шт.

See Fig. 04-003

1шт.

21

BN29345

7 Bank

1шт.

See Fig. 08-010 for Seals & Repair Parts

1шт.

22

BN29234

VALVE PRESSURE RELIE,1-1/16" - 12

O-Ring Port

1шт.

23

BN29237

VALVE, PRESSURE RELI

EF Priority, 4.5 Gallons @ 150

1шт.

24

NSS

NOT SOLD SEPARAT

Orbitrol, Steering Control

1шт.

See Fig. 01-003

1шт.

BN98233

SEAL KIT

for Orbitrol, Steering Control

1шт.

Service Parts For Ref. 24

1шт.

25

BN53670

HYDROSTATIC PUMP

Sprayer

1шт.

See Fig. 10-002

1шт.

BN53670R

REMAN-HYDROSTAT PUMP

PATRIOT XL (5/97 - 1/99)

1шт.

BN53670C

CORE-HYDROSTAT PUMP

Return Number

1шт.

26

BN29970

MANIFOLD

Solenoid & Relief Valve

1шт.

BN95962

KIT seal

1шт.

Service Parts For Ref. 26

1шт.

BN95744

CARTRIDGE

Solenoid Valve for 29970

1шт.

Service Parts For Ref. 26

1шт.

BN95745

COIL

solenoid valve

1шт.

Service Parts For Ref. 26

1шт.

BN98607

VALVE PRESSURE RELIE

for 29970 (2000 psi)

1шт.

Service Parts For Ref. 26

1шт.

28

BN67864

ADAPTER

1-1/16"-12 O-ring x 7/8-14 JIC

1шт.

BN98017

O-RING

SAE-12 Buna N

1шт.

Associated Part Of Adapter STR, P/N BN67864

1шт.

31

BN444003

FITTING

Adapter Str.-1 1/16-12 O-Ring x 3/4-16 JIC

5шт.

BN98017

O-RING

SAE-12 Buna N

5шт.

Associated Part Of Adapter STR, P/N BN444003

1шт.

32

BN67865

ELBOW

Adapter, 90° O-Ring

2шт.

BN98017

O-RING

SAE-12 Buna N

1шт.

Associated Part Of Adapter - 90° O-Ring , P/N BN67865

1шт.

35

BN444001

FITTING

Adapter STR 1 1/16-12 O Ring x 1 1/16-12 JIC

1шт.

BN98017

O-RING

SAE-12 Buna N

1шт.

Associated Part Of Adapter STR. 1 1/16-12 O-Ring x 1 1/16-12 JIC , P/N BN444001

1шт.

42

BN57224

FITTING

STR, 1 1/16-12 O Ring x 1 1/16-12 JIC

1шт.

BN98017

O-RING

SAE-12 Buna N

1шт.

Associated Part Of Adapter STR. 1 1/16-12 O-Ring x 1 1/16-12 JIC, P/N BN57224

1шт.

43

BN57225

FITTING

Adapter STR. 1 1/16-12 O Ring x 9/16-18 JIC

1шт.

BN98017

O-RING

SAE-12 Buna N

1шт.

Associated Part Of Adapter STR. 1 1/16-12 O-Ring x 9/16-18 JIC, P/N BN57225

1шт.

44

BN446032

TEE

1 1/16-12 O Ring x 1 1/16-12 JIC

1шт.

BN98017

O-RING

SAE-12 Buna N

1шт.

Associated Part Of Tee, 1 1/16"-12 O-Ring x 1 1/16"-12 JIC, P/N BN446032

1шт.

45

BN53715

REDUCER

1-1/16"-12 Female JIC x 3/4-16 Male JIC

3шт.

46

BN53716

FITTING

Reducer, 1 1 /16-12 Female JIC x 9/16-18 Male JIC

1шт.

49

BN67883

90° 1 5/16-12 JIC x 1 5/16-12 O Ring

1шт.

63

BN69126

TEE

1 1/16-12 x 7/8"-14 JIC

1шт.

66

BN60440

ADAPTER

STR., 9/16-18 O Ring x 3/4-16 JIC

2шт.

BN98019

O-RING

#6

2шт.

Associated Part Of Adapter STR. 9/16-18 O-Ring x 3/4-16 JIC, P/N BN60440

1шт.

72

BN69127

TEE

1 1/16-12 x 7/8"-14 JIC

1шт.

74

BN444004

FITTING

4шт.

BN98018

O-RING

#8

4шт.

Associated Part Of Adapter, 3/4-16 O-Ring x 3/4-16 JIC, P/N BN444004

1шт.

75

BN53707

FITTING

90°3/4-16 JIC

2шт.

77

BN441006

ADAPTER

1/2 NPT-8 JIC

2шт.

78

BN57226

ADAPTER

3/4-16 O-Ring x 9/16-18 JIC

2шт.

BN98018

O-RING

#8

2шт.

Associated Part Of Adapter, 3/4-16 O-Ring x 9/16-18 JIC, P/N BN57226

1шт.

85

BN67878

Hose Assembly 1" x 54"

1шт.

86

BN75990

HOSE CLAMP

#16, Stainless Steel

2шт.

88

BN67650

HYD TUBE

Steel, 3/4", 2350 PSI

1шт.

89

BN67649

HYD TUBE

Steel, 3/4", 2350 PSI

1шт.

90

BN66214

TUBE ASSY.

Steel, 1/2"

1шт.

91

BN65101

TUBE

steel, 1/2"

1шт.

121

BN67874

HOSE ASSY.

3/4" x 22"

1шт.

122

BN68815

PLATE

Assembly, 3/8" x 80"

2шт.

125

BN53968

HOSE

Assembly, 1/2" x 20"

1шт.

126

BN53818

HOSE

1/2" ID x 66" 100R2

2шт.

127

BN69595

HOSE

3/4" x 64" 100R1

1шт.

129

BN67869

HOSE

Assembly, 5/8" x 110"

1шт.

131

BN69596

HOSE

5/8" x 110"

2шт.

133

BN54170

HOSE

1/2" x 74"

1шт.

134

BN53624

HOSE

Assembly, 1/2" x 52"

2шт.

135

BN53970

Hose Assembly, 1/2" x 12"

1шт.

136

BN54186

HOSE

1/2" x 30"

1шт.

137

BN67870

HOSE

Assembly, 5/8" x 97"

1шт.

142

BN54238

HOSE

1/2" x 42", 100R2

2шт.

159

BN53501

HOSE,0.50" ID x 30.00", SAE 100R2

1шт.

500 Gallon Tank

1шт.

159

BN53728

HOSE

1/2" x 56"

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

700 S.S. & 750 Elliptical

1шт.

159

BN55327

HOSE

1/2" x 26"

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

750 SPH

1шт.

160

BN55327

HOSE

1/2" x 26"

1шт.

500 Gallon Tank

1шт.

160

BN55328

1/2" x 39"

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

700 S.S.

1шт.

160

BN55326

HOSE

Assembly, 1/2" x 16"

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

750 SPH

1шт.

160

BN55331

HOSE

1/2" x 50"

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

750 Elliptical

1шт.

161

BN65468

REGULATOR

Flow

1шт.

162

BN444008

FITTING

Adapter - 37° Flare 10

3шт.

163

BN55452

JIC 3/4-16 Male - Female

1шт.
