Запчасти Case IH PATRIOT XL (05-002) - WHEEL & TIRE Hub, Wheel & Tires

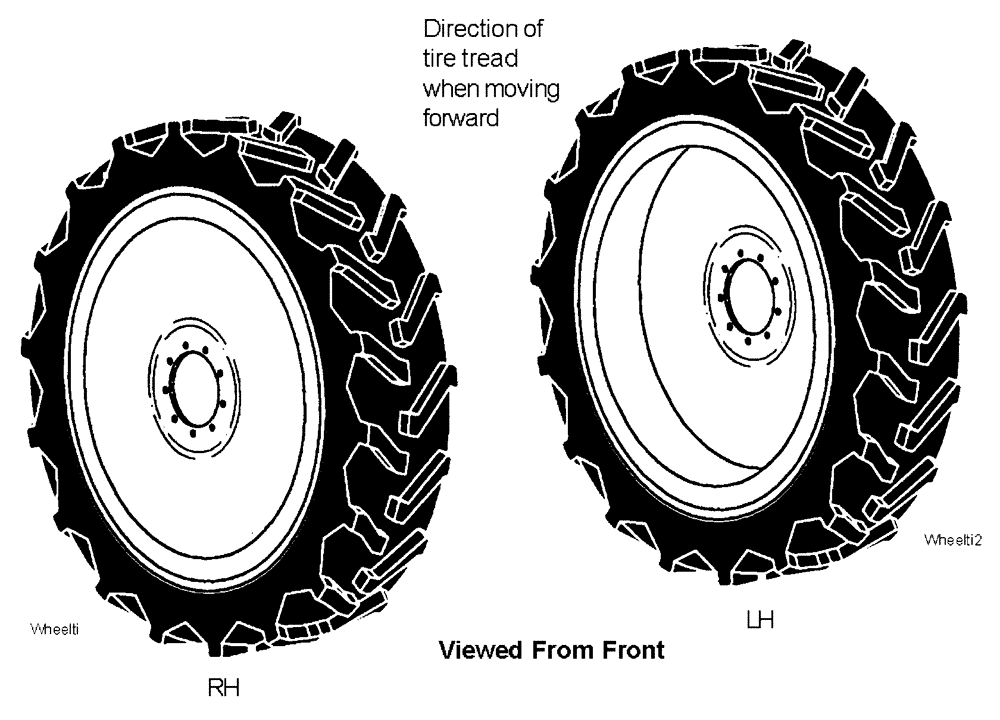

Схема запчастей Case IH PATRIOT XL - (05-002) - WHEEL & TIRE Hub, Wheel & Tires

Артикул

Название

Примечание

Количество

BN66742

RH Tire - Mounted 12.4" x 38"-10 Ply

2шт.

BN66743

LH Tire - Mounted 12.4" x 38"-10 Ply

2шт.

BN320548

WHEEL

10" x 38"

4шт.

BN66744

TYRE/TIRE

12.4" x 38" (Tubeless)

4шт.

BN67196

Valve

4шт.

BN29608

LH Tire Mounted - 9.5" x 42"-10 Ply

2шт.

Optional Tire Assembly

1шт.

BN320549

WHEEL

9" x 42"

4шт.

BN29609

TYRE/TIRE

9.5" x 42" - 10 Ply With Tube

4шт.

Optional Tire Assembly

1шт.

BN29470

9.5" x 42"

4шт.

BN27225

R.H. Tire Mounted - 16.9" x 38"

2шт.

BN27226

L.H. Tire Mounted -16.9" x 38"

2шт.

BN320550

WHEEL

15" x 38"

4шт.

BN27227

Tire -16.9R x 38 Radial (Tubeless)

4шт.

BN30469

VALVE STEM

4шт.

BN50791

BOLT

Wheel - 9/16-18 x 2 3/4 Gr. 8

36шт.

BN315227

WHEEL NUT

Flanged Wheel, 9/16"-18

36шт.

Выбрано товаров: 18
