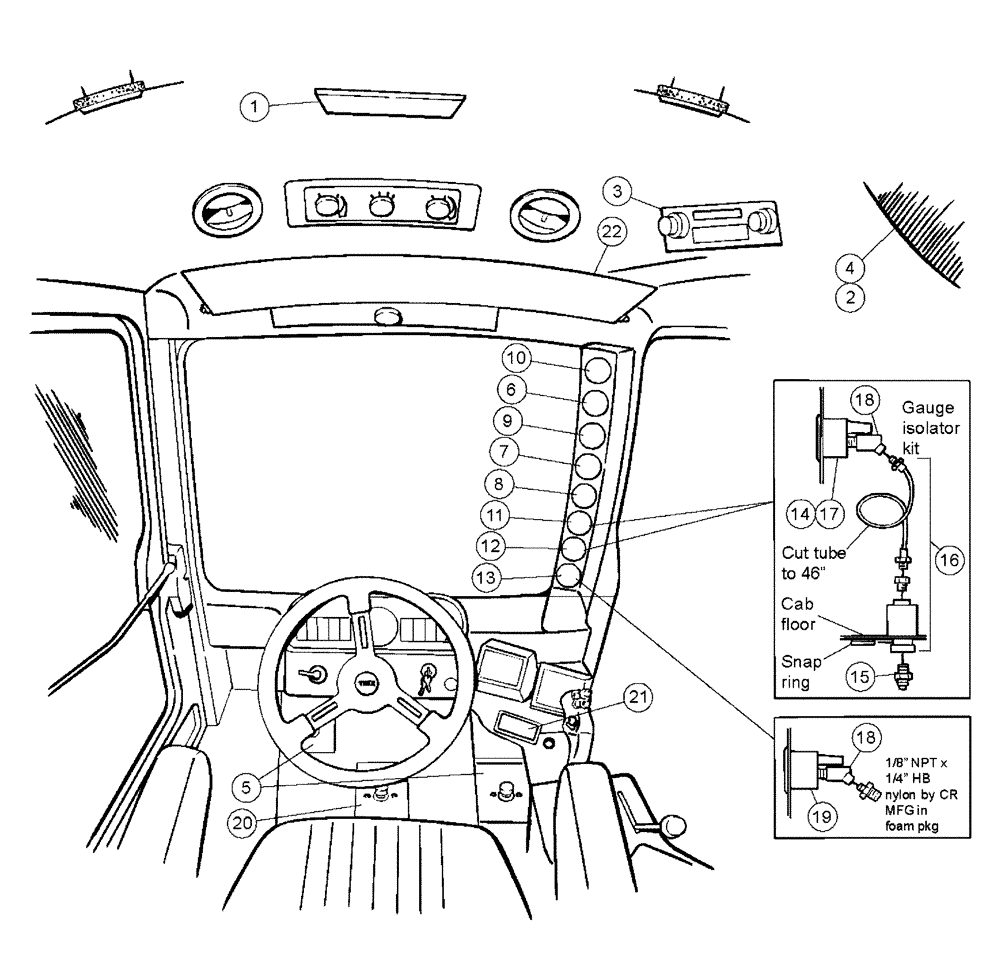

Запчасти Case IH PATRIOT XL (01-002) - GAUGES, ELECTRICAL Cab Interior

1

BN67967

CEILING LAMP

Dome, 12V Polycarb

1шт.

BN300876

BULB

Dome, 12 volt

1шт.

Service Parts For Ref. 1

1шт.

2

BN29807

SPACER

9/16" OD x 12 GA x 1/2"

8шт.

3

BN57219

RADIO

AM/FM/Cassette 12V

1шт.

BN57222

ANTENNA

Radio

1шт.

Associated Part Of Radio-AM/FM/Cassette 12V, P/N BN57219

1шт.

BN69006

BRACKET

Radio

1шт.

Associated Part Of Radio-AM/FM/Cassette 12V, P/N BN57219

1шт.

BN50051

NUT,1/4"-20, USR

1шт.

Associated Part Of Radio-AM/FM/Cassette 12V, P/N BN57219

1шт.

BN50205

BOLT

1/4"-20 x .625, TH, SS

5шт.

Associated Part Of Radio-AM/FM/Cassette 12V, P/N BN57219

1шт.

BN50251

BOLT

3/8"-16 x 3/4, HH, G5

2шт.

Associated Part Of Radio-AM/FM/Cassette 12V, P/N BN57219

1шт.

4

BN57220

SPEAKER

Speaker-JVC (Set Of 2)

1шт.

5

BN29522

SWITCH

Dimmer Floor Mount

1шт.

BN29807

SPACER

9/16" OD x 12 GA x 1/2"

2шт.

Associated Part Of Switch - Dimmer Floor Mount, P/N BN29522

1шт.

BN50051

NUT,1/4"-20, USR

2шт.

Associated Part Of Switch - Dimmer Floor Mount, P/N BN29522

1шт.

50446

BOLT Hex, 1/4"-20 x 1 1/4", G5

2шт.

Associated Part Of Switch - Dimmer Floor Mount, P/N BN29522

1шт.

BN67593

COVER

12 GA HRS 5.5 x 6.5

1шт.

Associated Part Of Switch - Dimmer Floor Mount, P/N BN29522

1шт.

BN50205

BOLT

1/4"-20 x .625, TH, SS

4шт.

Associated Part Of Switch - Dimmer Floor Mount, P/N BN29522

1шт.

6

BN67301

FUEL GAUGE

level 12V, N.G.

1шт.

BN301818

BULB

12V (1.12" Long)

1шт.

Service Parts For Ref. 6

1шт.

7

BN67302

ELECTRICAL GAUGE

Gauge-temp 280 Degree 12V

1шт.

BN301818

BULB

12V (1.12" Long)

1шт.

Associated Part Of Gauge, PN BN67302

1шт.

8

BN67303

ELECTRICAL GAUGE

oil pressure, 100 psi

1шт.

BN301818

BULB

12V (1.12" Long)

1шт.

Service Parts For Ref. 8

1шт.

9

BN67304

ELECTRICAL GAUGE

Gauge-volt 12V DC/10-16

1шт.

BN301818

BULB

12V (1.12" Long)

1шт.

Service Parts For Ref. 9

1шт.

10

BN67306

SENDER UNIT

(Black)

1шт.

11

BN68268

GAUGE

Assy, Boom pressure

1шт.

Includes Refs. 14, 15, 16 & 18

1шт.

12

BN68269

GAUGE

Assy, Sparge Pressure

1шт.

Includes Refs. 15, 16, 17 & 18

1шт.

13

BN68270

ELECTRICAL GAUGE

Assembly, gauge Foam Pressure

1шт.

Includes Refs. 18 & 19

1шт.

14

BN67308

GAUGE

boom pressues, 0-200

1шт.

BN301819

BULB

12V (Short-1.06")

1шт.

Service Parts For Ref. 14

1шт.

15

BN441001

ADAPTER

pipe-37 Flare, 06-04

2шт.

16

BN67300

ISOLATOR

Gauge-Isolator Kit

2шт.

17

BN68255

GAUGE

Gauge-Sparge Pressure, 0-200

1шт.

BN301819

BULB

12V (Short-1.06")

1шт.

Service Parts For Ref. 17

1шт.

18

BN68256

ELBOW

45 Degree 1/8NPT-female

3шт.

19

BN67307

ELECTRICAL GAUGE

Gauge-Foam Pressure, 0-80

1шт.

BN301819

BULB

12V (Short-1.06")

1шт.

Service Parts For Ref. 19

1шт.

20

BN68440

SWITCH

Plumbing Bypass

1шт.

BN29807

SPACER

9/16" OD x 12 GA x 1/2"

2шт.

Associated Part Of Switch - Plumbing Bypass, P/N BN68440

1шт.

BN50051

NUT,1/4"-20, USR

2шт.

Associated Part Of Switch - Plumbing Bypass, P/N BN68440

1шт.

50446

BOLT Hex, 1/4"-20 x 1 1/4", G5

2шт.

Associated Part Of Switch - Plumbing Bypass, P/N BN68440

1шт.

BN67593

COVER

12 GA HRS 5.5 x 6.5

1шт.

Associated Part Of Switch - Plumbing Bypass, P/N BN68440

1шт.

21

BN66127

ASH TRAY

1шт.

22

BN67055

SUN VISOR

Plastic, 33"

1шт.

BN50146

WASHER,3/8", Stainless

2шт.

Associated Part Of Sunvisor - Plastic, 33", P/N BN67055

1шт.

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

2шт.

Associated Part Of Sunvisor - Plastic, 33", P/N BN67055

1шт.

231-4144

NUT,1/4"-20, GB

2шт.

Associated Part Of Sunvisor - Plastic, 33", P/N BN67055

1шт.
