Запчасти Case IH PATRIOT XL (10-002[01]) - EXTERIOR DECALS (13) - DECALS

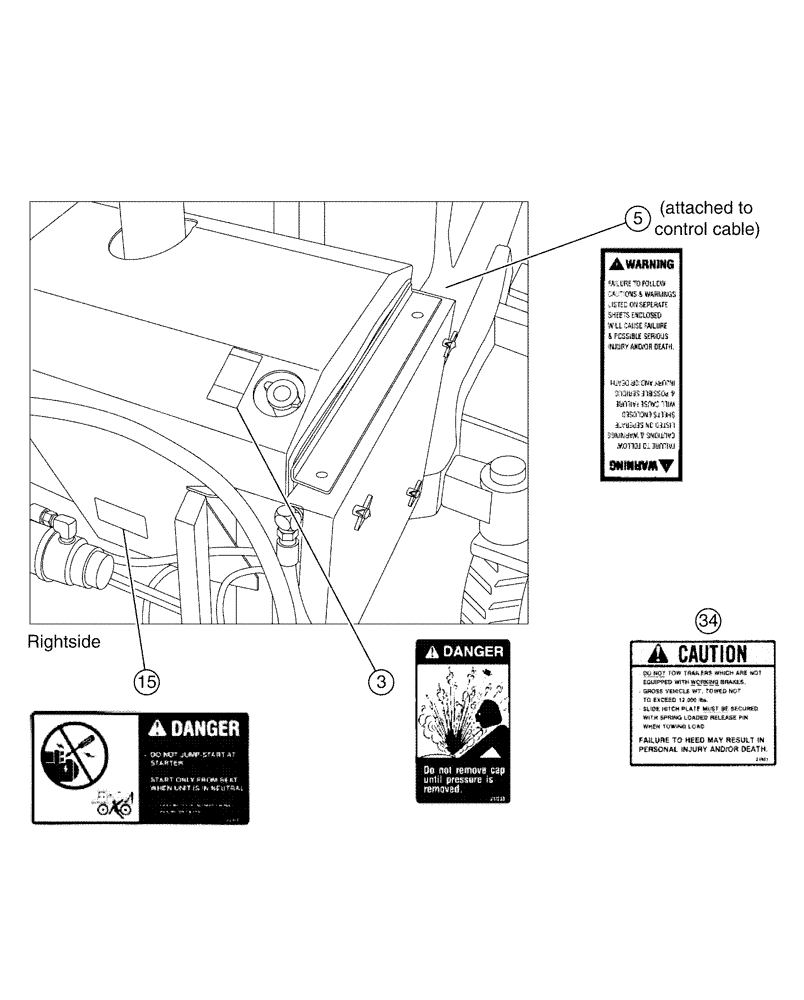

Схема запчастей Case IH PATRIOT XL - (10-002[01]) - EXTERIOR DECALS (13) - DECALS
3
15
5
34

Артикул

Название

Примечание

Количество

BN68167

Package-Pat XL-ncb

1шт.

1

BN11886A

DECAL

Caution-Do Not Ride

1шт.

2

BN12429A

DECAL

Caution-Service Manual

1шт.

3

BN21723B

DECAL

Danger-Tank Pressure, 25

1шт.

4

BN23877

CAUTION DECAL

Chemical

1шт.

5

BN24146

DECAL

warning-contrl Cabl

2шт.

6

BN25179

DECAL

saftypin-ctrbom-770

1шт.

7

BN25214

DECAL

caut.-laddr'up'-rev

1шт.

8

BN29369

DECAL

made By Tyler

1шт.

9

BN29636A

DECAL

wheel Nut-770

3шт.

10

BN29646

DECAL

Warning - Fluid Presssure

1шт.

11

BN29773

REFLECTOR

Rectanguler Amber

4шт.

12

BN29774

REFLECTOR

Rectangular Red

4шт.

13

BN63961

DECAL

HYD.. Fluid Patriots

1шт.

14

BN63998

DECAL

Caution-Chemicals

2шт.

15

BN65207

DECAL

Caution (Jumpstart)-Pat

1шт.

16

BN65208

DECAL

Tag-safety Alert (Start) Pat

1шт.

17

BN65285

DECAL

Add Hydraulic Oil - Sight

1шт.

BN69760

Package-Decal-Cab External (XL)-NCB

1шт.

18

BN400324A

DECAL

Diesel-Fuel Warning

1шт.

19

BN54145

DECAL

Tyler (Die Cut) MERT

1шт.

20

BN69761

DECAL

Patriot (low Case)-NCB

1шт.

21

BN69762

DECAL

Tyler (3")-NCB

1шт.

22

BN69763

DECAL

RH Hood (Graphic)-NCB

1шт.

Shown

1шт.

23

BN69764

DECAL

LH Hood (Graphic)-NCB

1шт.

24

BN69765

DECAL

Stripe (Lower Door) - NCB

2шт.

25

BN69766

DECAL

Stripe (Rear Cab)-NCB

2шт.

26

BN69767

DECAL

RH Stripe (Hood)-NCB

1шт.

Shown

1шт.

27

BN69768

DECAL

LH Stripe (Hood)-NCB

1шт.

28

BN69769

DECAL

Stripe (Mid Door)-NCB

2шт.

29

BN69770

DECAL

RH Stripe (Roof)-NCB

1шт.

Shown

1шт.

30

BN69771

DECAL

LH Stripe (Roof)-NCB

1шт.

31

BN69772

DECAL

XL (Roof)-NCB

2шт.

32

BN69773

DECAL

XL (Hood)-NCB

2шт.

33

BN69778

DECAL

TP Hood (graphic)-NCB

1шт.

34

BN24603

DECAL

Towing Trailer (Hitch Option)

1шт.

35

BN63915

DECAL

Caution Foam Mixing

1шт.

36

BN301704

DECAL

Charge With 134A Gas

1шт.

BN69574

Caution Strainer Pressure

3шт.

Not Shown

1шт.

See Fig. 10-024

1шт.

Выбрано товаров: 44
