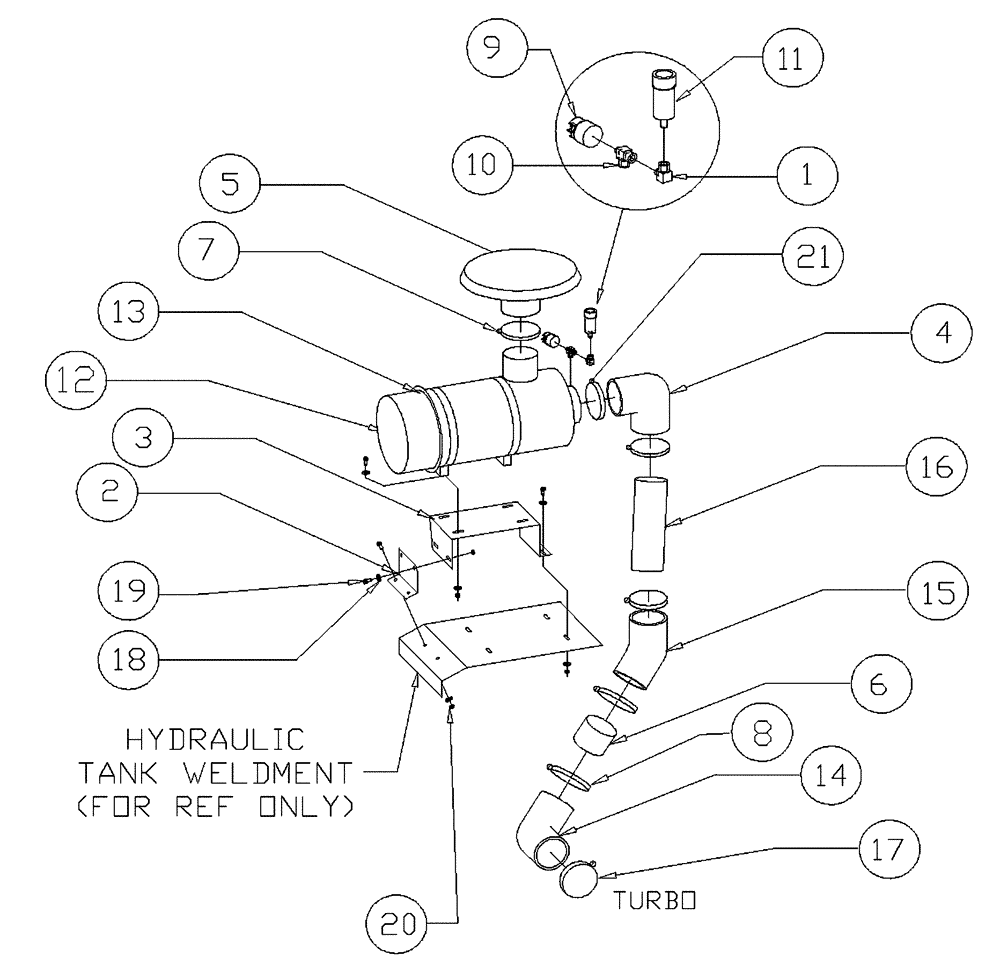

Запчасти Case IH PATRIOT XL (03-005) - AIR CLEANER (01) - ENGINE

1

BN21894

ELBOW

90º 1/8" Pipe

1шт.

2

BN24255

MOUNTING PLATE

12GA HRS 5 x 5.75

1шт.

3

BN24256

MOUNTING PLATE

12 GA HRS 7 x 20.75

1шт.

4

D50920

ELBOW

4" x 90°

1шт.

5

BN25290

VENT

Rain Cap, Air Inlet 4.5"

1шт.

6

BN25293

TUBE

4" od x 3" Long x 16 ga SS

1шт.

7

BN51781

HOSE CLAMP

#72

1шт.

8

BN53823

SPECIAL CLAMP

"T" Bolt -4 1/2"

1шт.

9

BN66126

INDICATOR

Filter, Electric

1шт.

10

BN68257

TEE

1/8NPT Male-female

1шт.

11

BN68258

INDICATOR

Restrict, 25" H2O

1шт.

12

BN68873

AIR CLEANER

(Complete)

1шт.

BN69425

FILTER

Air (Primary)

1шт.

Parts Of Air Cleaner, P/N BN68873

1шт.

BN69426

FILTER

Air (Secondary)

1шт.

Parts Of Air Cleaner, P/N BN68873

1шт.

13

BN68874

AIR CLEANER

Mount

2шт.

14

BN68875

ELBOW

Reducer 4:3 x 90°

1шт.

15

BN68876

ELBOW

45 Degree 4"JDPT

1шт.

16

BN68879

TUBE

SS304 4" OD x 11"

1шт.

17

BN69642

T Clamp SS 3.75 DIA. Long Bolt

1шт.

18

BN50145

WASHER

3/8, G5

10шт.

19

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

10шт.

20

280736

NUT,5/16"-18, GC

10шт.

21

BN69643

CLAMP

T-Bolt, 4.5 Longbolt

4шт.
