Запчасти Case IH PATRIOT XL (03-004) - RADIATOR (01) - ENGINE

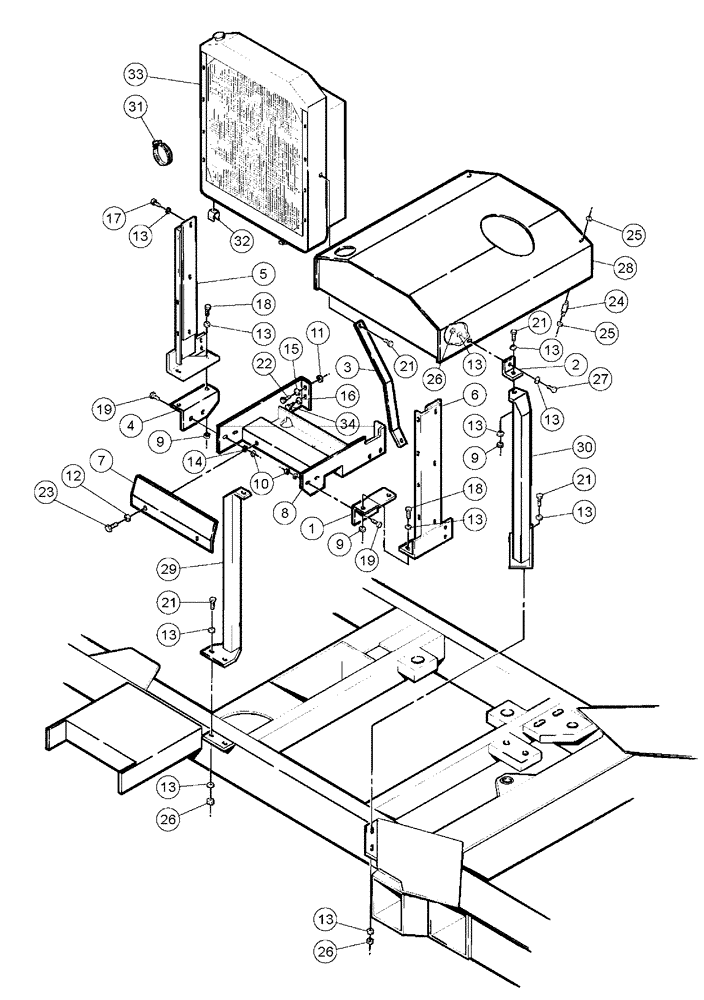

Схема запчастей Case IH PATRIOT XL - (03-004) - RADIATOR (01) - ENGINE
25
21
10
3
13
13
19
31
13
15
34
24
23
8
14
22
13
13
21
4
26
13
6
11
26
13
16
13
17
26
30
1
9
18
12
21
2
7
29
25
9
13
13
32
21
5
18
27
13
19
28
9

Артикул

Название

Примечание

Количество

1

BN25425

ANGLE

RH-3/8" 3" x 4" x 8.25

1шт.

2

BN25430

MOUNTING PLATE

10 ga HRS 3.0 x 3.56

2шт.

3

BN25435

3/8" x 1.5" HR x 27.8

1шт.

4

BN25436

ANGLE

LH-3/8" 3" x 4" x 8.25

1шт.

5

BN25975

LH -radiator

1шт.

6

BN25976

RH -radiator

1шт.

7

BN25986

14 GA. HR S5 x 17.5

1шт.

8

BN29501

MOUNTING PARTS

Motor & Radiator

1шт.

9

BN50061

LOCK NUT

3/8"-16, UNC, Whiz

6шт.

10

BN50072

NUT

Hex, 1/2"-13, G5, Pl

4шт.

11

BN50119

Nut, 9/16-12 Gr. 5

2шт.

12

BN50142

WASHER,5/16", Stainless Steel

4шт.

13

BN50145

WASHER

3/8, G5

28шт.

14

87529240

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

0.531 x 1.062 x 0.134 HTS DOR HDN

8шт.

15

BN50154

LOCK WASHER

2шт.

16

BN50156

LOCK WASHER

5/8 Spring Lock

2шт.

17

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

2шт.

18

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

19

50286

BOLT Hex, 1/2"-13 x 1 3/4", G5

5шт.

21

BN50367

BOLT

3/8"-16 x 1", G5

10шт.

22

BN50454

9/16-12 x 2.25, 5, PL

2шт.

23

BN50476

BOLT,5/16"-18 x 0.75", Stainless

2шт.

24

BN29552

RUBBER MOUNTING

W/.25-20 Studs

2шт.

25

BN50051

NUT,1/4"-20, USR

4шт.

26

BN50131

LOCK NUT

3/8-16, CTR, PL

8шт.

27

343299A1

SET SCREW,3/8"-16 X 1.00", Stainless Steel

4шт.

28

BN25297

ENGINE HOOD

(Engine)771 -772

1шт.

29

BN66092

Rearhood Support

1шт.

30

BN66094

Fronthood Support

1шт.

31

BN51674

HOSE CLAMP

Adjustable #40

4шт.

32

BN65181

RETAINER

radiator drain hose

1шт.

33

BN68871

RADIATOR

JDPT4.5L Complete

1шт.

BN98895

RADIATOR

1 HT#SA-1162600

1шт.

Parts Of Radiator, JDPT4.5L Complete., P/N BN68871

1шт.

BN68738

HYDRAULIC VALVE

Drain Cock Assembly

1шт.

Parts Of Radiator, JDPT4.5L Complete., P/N BN68871

1шт.

BN69025

Shroud Assembly

1шт.

Parts Of Radiator, JDPT4.5L Complete., P/N BN68871

1шт.

BN69046

CAP

Radiator

1шт.

Parts Of Radiator, JDPT4.5L Complete., P/N BN68871

1шт.

34

BN69486

BOLT

M16-2-40 Gr 8.8

2шт.

100

BN69023

RADIATOR HOSE

Upper Radiator

1шт.

Not Shown

1шт.

100

BN69024

RADIATOR HOSE

Lower Radiator

1шт.

Not Shown

1шт.

Выбрано товаров: 45
