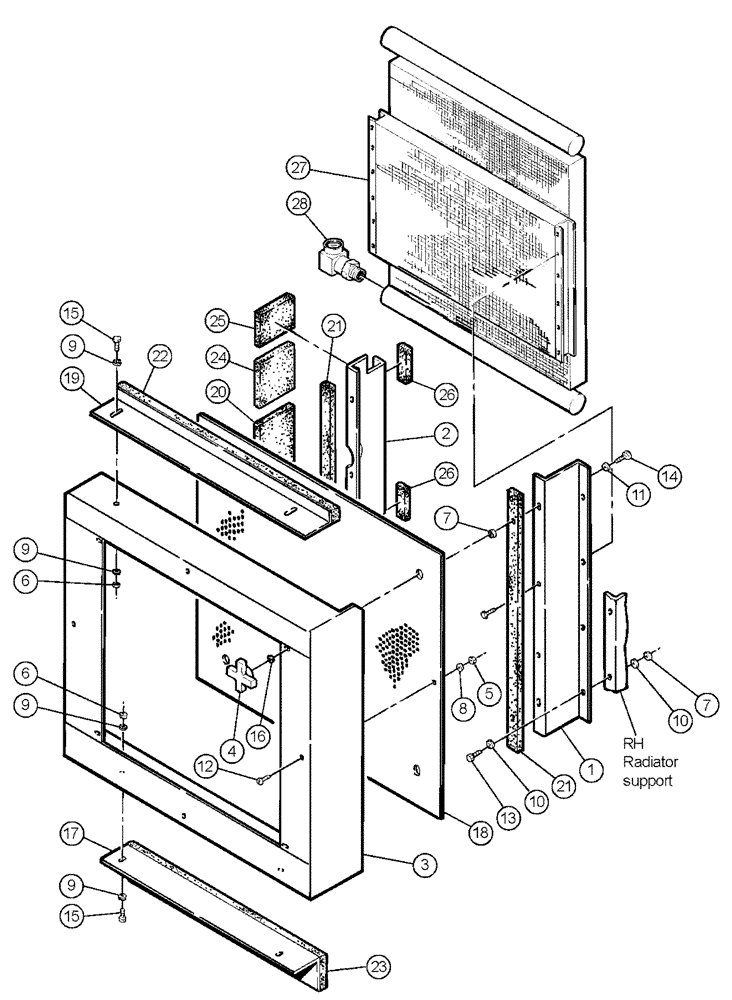

Запчасти Case IH PATRIOT XL (03-003) - MT. & SCREEN-OILCOOL ASSEMBLY (01) - ENGINE

1

BN25827

14 GA HRS 6.0 x 27.5

1шт.

2

BN25828

MOUNTING PLATE

LH-14ga HRS 6.0 x 27.5

1шт.

3

BN25989

SCREEN

Radiator

1шт.

4

BN29392

KNOB

3" With 3/8"-16 Female Thread

4шт.

5

BN50051

NUT,1/4"-20, USR

4шт.

6

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

4шт.

7

BN50061

LOCK NUT

3/8"-16, UNC, Whiz

16шт.

8

BN50138

WASHER,1/4", SS

4шт.

9

BN50142

WASHER,5/16", Stainless Steel

4шт.

10

BN50145

WASHER

3/8, G5

8шт.

11

BN50146

WASHER,3/8", Stainless

4шт.

12

BN50205

BOLT

1/4"-20 x .625, TH, SS

4шт.

13

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

6шт.

14

BN50367

BOLT

3/8"-16 x 1", G5

4шт.

15

BN50476

BOLT,5/16"-18 x 0.75", Stainless

4шт.

16

493-41039

LOCK WASHER,Ext Tooth, 3/8"

4шт.

17

BN63641

14 GA. HRS 6.5 x 23.75

1шт.

18

BN63643

Perforated 27.5 x 29

1шт.

19

BN63878

14 GA. HRS 4 x 27

1шт.

20

BN65139

Foam 3/4 x 4.0 x 8.0

1шт.

21

BN65140

SEAL

Foam 3/4 x 1 x 27.5

2шт.

22

BN65141

SEAL

Foam 1.0 x 1.0 x 27

1шт.

23

BN65142

SEAL

Foam 1.0 x 3 x 23.75

1шт.

24

BN65143

foam 3/4 x 4.0 x 4.5

1шт.

25

BN65146

Foam 3/4 x 3.5 x 4.0

1шт.

26

BN65150

INSULATOR

foam, .75 x 1.0 x 3.0

2шт.

27

BN24984

OIL COOLER

Hydraulic

1шт.

28

BN67883

Adaptor, 90#16 OR x #16 JIC

2шт.
