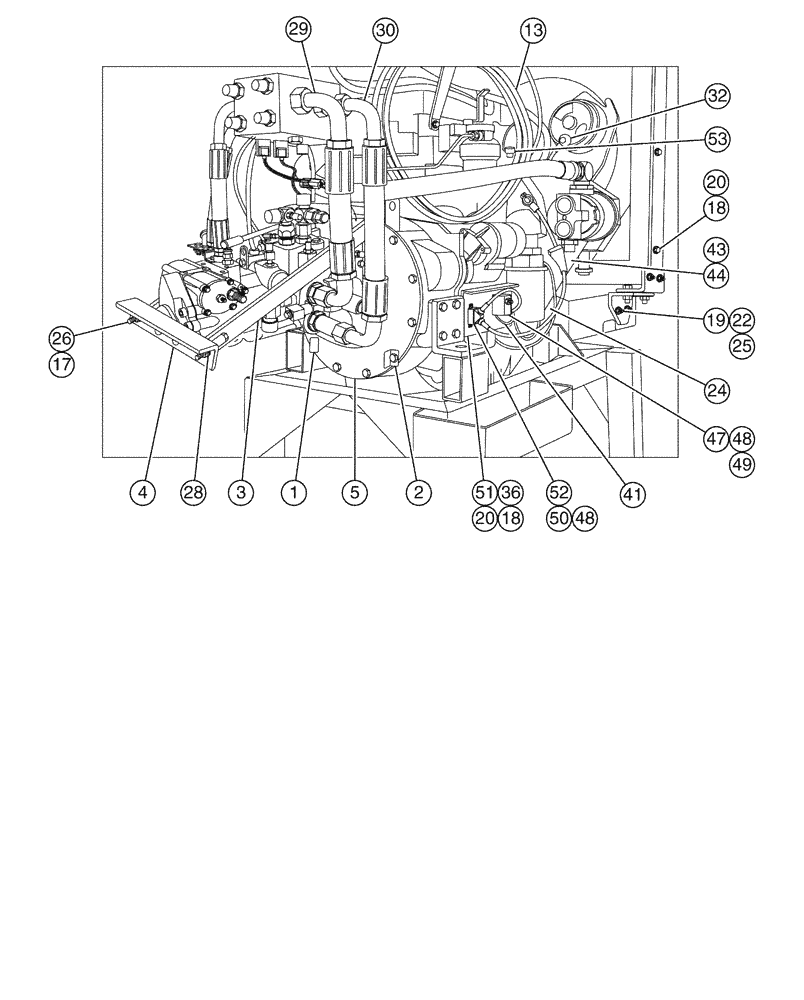

Запчасти Case IH PATRIOT XL (03-001[01]) - ENGINE ASSEMBLY (01) - ENGINE

1

BN24180

Angle LH, 3/16 1.25 x 1.25 x 15

1шт.

2

BN24181

RH, 3/16 1.25 x 1.25 x 15

1шт.

3

BN25717

SUPPORT

Brace

2шт.

4

BN25725

ANGLE

3/16 1.5 x 1.5 x 13

1шт.

5

BN310027

PLATE

& Coupling Assembly

1шт.

6

BN29185

MOUNTING PLATE

7 ga 304 3/4" x 3"

1шт.

7

BN29188

MOUNTING PLATE

Mount-Shifter

1шт.

8

BN29207

Angle-1/2" x 3.5 x 5.0 x 4

2шт.

BN29334

MUFFLER

Exhaust (W/Clamp)

1шт.

Not Shown

1шт.

BN29335

PROTECTION CAP

Rain - (Exhaust)

1шт.

Not Shown

1шт.

11

29811

TUBE

STL - 1/4" x 4" (Fuel)

1шт.

12

BN76094

HOSE CLAMP

SS #M4

2шт.

13

BN300180

Fuel, 3/8" ID x 181"

1шт.

14

BN300182

Fuel, 1/4" ID x 162"

1шт.

15

BN50061

LOCK NUT

3/8"-16, UNC, Whiz

2шт.

16

86509310

NUT,3/8" - 24, Gr 5

4шт.

17

BN50072

NUT

Hex, 1/2"-13, G5, PL

4шт.

18

BN50145

WASHER

3/8, G5

3шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

20

BN50251

BOLT

3/8"-16 x 3/4, HH, G5

23шт.

21

88959

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

4шт.

22

50286

BOLT Hex, 1/2"-13 x 1 3/4", G5

2шт.

24

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

13шт.

25

86992215

LOCK NUT,1/2"-13, GC

2шт.

26

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

27

BN50995

LOCK NUT

3/8"-24 UNF, Centerloc

2шт.

28

BN53802

WASHER

Beveled, 1/2"

4шт.

29

BN53919

HOSE

Assembly-1" x 15.25

2шт.

30

BN53920

HOSE

1" x 17.50

1шт.

31

BN53921

HOSE

Assembly-1" x 17.05

1шт.

32

BN68275

WIRE HARNESS

Engine-JD

1шт.

33

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

12шт.

34

BN67309

SENDER UNIT

Oil Pressure 0-100

1шт.

35

BN67310

SENDER UNIT

Temperature 100-280 M14X 1.5

1шт.

36

BN69631

Shield Solenoid COV. Plastic

1шт.

Not Shown

1шт.

39

BN69045

JDPT4.5L -125 HP

1шт.

40

BN69486

BOLT

M16-2-40 Gr 8.8

2шт.

41

BN69488

GROMMET

OD 1 7/8 Inch

1шт.

43

BN69050

PADDING

Neoprene, 1/4 Inch

1шт.

44

BN69085

SUPPORT

HYD. Pump JDPT

1шт.

45

BN29949

ROD

3/8"-24 x 10.5"

1шт.

46

D149295

BALL JOINT,3/8"

3/8"-24 Ends

2шт.

47

BN29401

RELAY

Starter

1шт.

48

BN50051

NUT,1/4"-20, USR

4шт.

49

BN50209

BOLT

1/4"-20 x .5, HH, 5, PL

2шт.

50

50214

BOLT Hex, 1/4"-20 x 1", G5

2шт.

51

BN69577

Mount Solenoid

1шт.

52

BN69860

CIRCUIT BREAKER

150A

1шт.

53

BN52302

1/8 NPTx 3/8-90 Degree

1шт.

54

BN98538

1шт.
