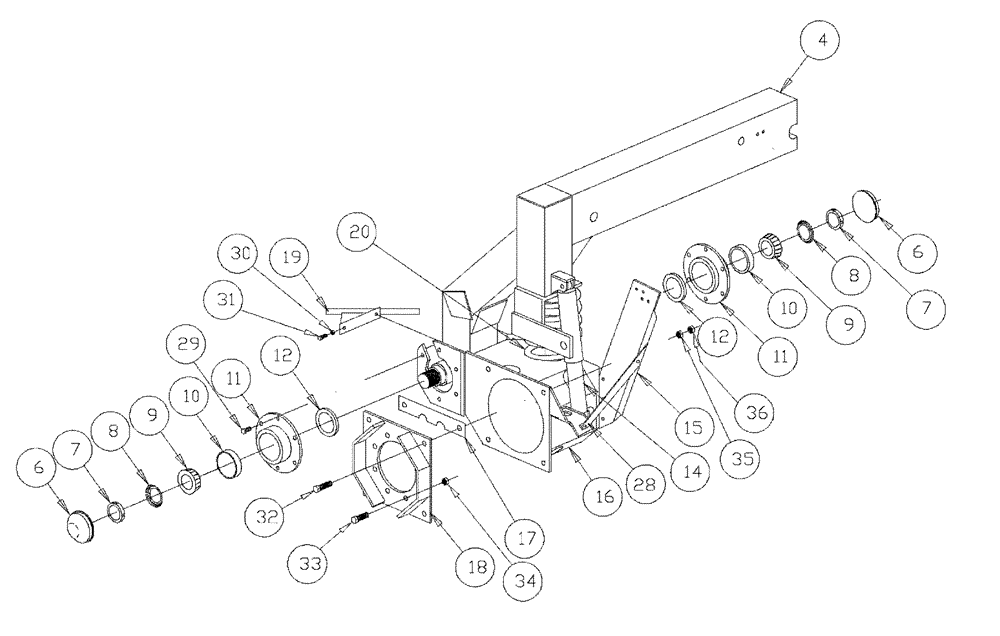

Запчасти Case IH PATRIOT XL (04-007) - STRUT ASSEMBLY-REAR Suspension & Frame

4

BN63943

STRUT

LH

1шт.

Shown

1шт.

BN63944

STRUT

RH

1шт.

Same Part Of Strut LH, P/N BN63943 But Opposite Side

1шт.

6

BN68789

PACKAGE

Dust Cap w/Drill & Tap

4шт.

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

4шт.

Associated Part Of Dust Cap w/Drill & Tap, P/N BN68789

1шт.

7

BN80443

LOCK NUT

4шт.

8

BN80444

LOCK WASHER,2.026" ID x 2.95" OD x 0.015"

lock, bearing

4шт.

9

BN31073

ROLLER BEARING,2" ID x 3.6718" OD x 1.1875"

4шт.

10

ST863

BEARING CUP,93.22mm OD x 23.81mm W

#3720

4шт.

11

BN29071

HUB

Assembly With Race and Seal

4шт.

Includes Ref. 10

1шт.

BN29058

SHIM

8" Dia x 12 ga

1шт.

Associated Part Of Retainer, P/N BN29071

1шт.

12

BN31074

SEAL

4шт.

14

BN27333

SERVICE KIT

Shock, Bushing, Bolt, Nut

2шт.

15

BN63923

SUPPORT

LH

1шт.

Shown

1шт.

BN63924

SUPPORT

RH

1шт.

Same Part Of Support - LH, P/N BN63923 But Opposite Side

1шт.

16

BN66423

BRACKET

LH

1шт.

Shown

1шт.

Model #7 Hub

1шт.

BN66422

FRAME

RH

1шт.

Same Part Of Housing LH, P/N BN66423 But Opposite Side

1шт.

Model #7 Hub

1шт.

17

BN29081

4шт.

18

BN66894

PLATE

2шт.

Model #7 Hub

1шт.

19

BN29690

DEFLECTOR

2шт.

20

BN24159

COIL SPRING

Extra H.D.

2шт.

BN24261

RETAINER,13.46mm ID x 101.6mm OD x 6.35mm Thk

4" od x .53" id x 1/4"

4шт.

Associated Part Of Spring - Extra H.D, P/N BN24159

1шт.

28

BN65577

BRACKET

L.H.

1шт.

Shown

1шт.

BN65576

SUPPORT

R.H.

1шт.

29

BN50379

BOLT

1/2"-20 x 1", MH

12шт.

30

BN50064

NUT

3/8"-16, Stainless Steel

2шт.

31

BN50367

BOLT

3/8"-16 x 1", G5

2шт.

32

BN52320

BOLT

Hex, 5/8"-18 x 2 1/4", G8

16шт.

33

50726

BOLT Hex, 5/8"-18 x 2", G5

8шт.

34

BN50775

LOCK NUT

5/8"-18 UNF Center

8шт.

35

87343677

NUT

Hex, 5/8"-18, G8

16шт.

36

BN50775

LOCK NUT

5/8"-18 UNF Center

16шт.
