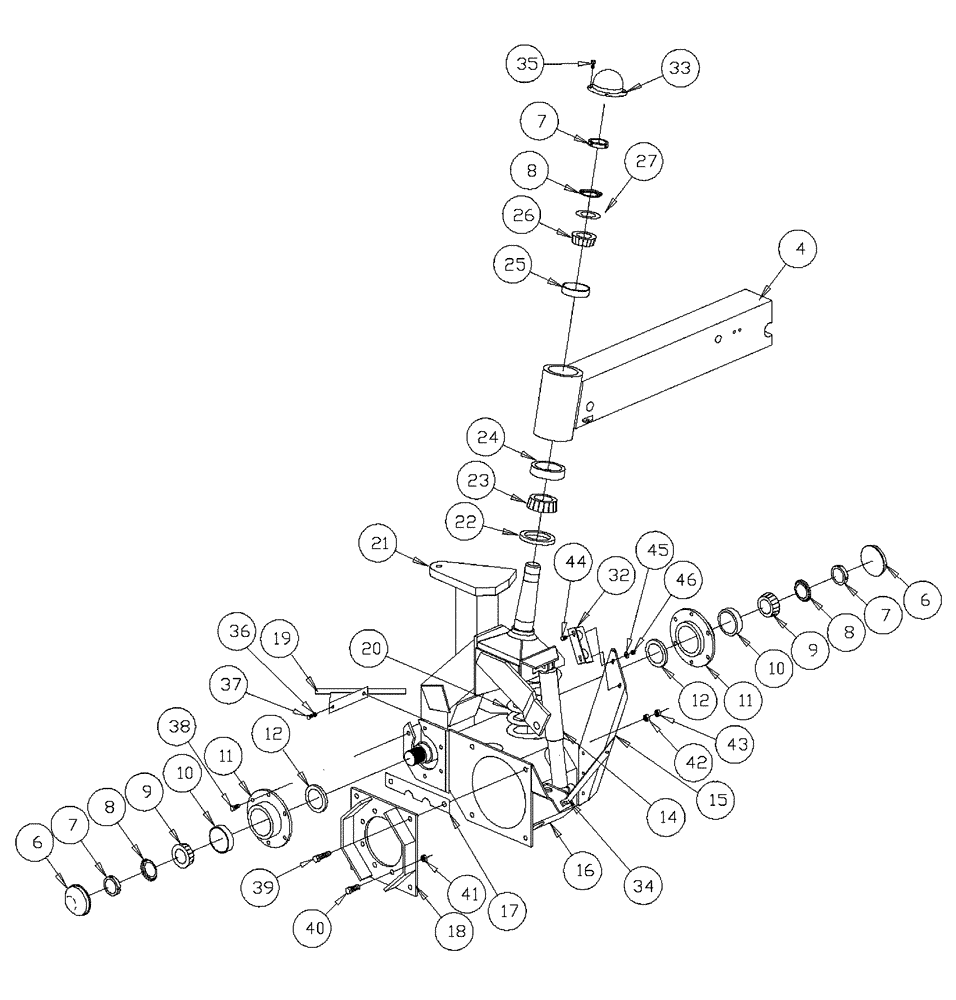

Запчасти Case IH PATRIOT XL (04-006) - STRUT ASSEMBLY-FRONT Suspension & Frame

4

BN63949

FRONT AXLE

2шт.

6

BN68789

PACKAGE

Dust Cap w/Drill & Tap

4шт.

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

4шт.

Associated Part Of Dust Cap w/Drill & Tap, P/N BN68789

1шт.

7

BN80443

LOCK NUT

6шт.

8

BN80444

LOCK WASHER,2.026" ID x 2.95" OD x 0.015"

lock, bearing

6шт.

9

BN31073

ROLLER BEARING,2" ID x 3.6718" OD x 1.1875"

4шт.

10

ST863

BEARING CUP,93.22mm OD x 23.81mm W

#3720

4шт.

11

BN29071

HUB

Assembly With Race and Seal

4шт.

Includes Ref. 10

1шт.

BN29058

SHIM

8" Dia x 12 ga

1шт.

Associated Part Of Retainer P/N BN29071

1шт.

Includes Ref. 10

1шт.

12

BN31074

SEAL

4шт.

14

BN29316

SHOCK ABSORBER

10" Travel

2шт.

BN29612

BUSHING

5/8" od x 17 ga x 1.31" Long

2шт.

Associated Part Of Shock Absorber, P/N BN29316

1шт.

86992215

LOCK NUT,1/2"-13, GC

2шт.

Associated Part Of Shock Absorber, P/N BN29316

1шт.

BN50894

BOLT

1/2"-13 x 2.5, HH, 5, PL

1шт.

Associated Part Of Shock Absorber, P/N BN29316

1шт.

BN53876

BOLT

1/2 x 2 1/2, BSH

1шт.

Associated Part Of Shock Absorber, P/N BN29316

1шт.

15

BN63920

SUPPORT

LH

1шт.

Shown

1шт.

BN63921

SUPPORT

Support - RH

1шт.

Same Part Of Support - LH, P/N BN63920 But Opposite Side

1шт.

BN50367

BOLT

3/8"-16 x 1", G5

3шт.

Associated Part Of Support - LH, P/N BN63920

1шт.

BN50131

LOCK NUT

3/8-16, CTR, PL

3шт.

Associated Part Of Support - LH, P/N BN63920

1шт.

16

BN66421

HOUSING

LH

1шт.

Shown

1шт.

Model #7 Hub

1шт.

BN66420

HOUSING

RH

1шт.

Same Part Of Housing LH, P/N BN66421 But Opposite Side

1шт.

Opposite

1шт.

Model #7 Hub

1шт.

17

BN67444

SHIM

Auburn hubs

4шт.

18

BN66894

PLATE

(Model #7 Hub)

2шт.

19

BN29690

DEFLECTOR

2шт.

20

BN24159

COIL SPRING

Extra H.D.

2шт.

BN24261

RETAINER,13.46mm ID x 101.6mm OD x 6.35mm Thk

4" od x .53" id x 1/4"

4шт.

Associated Part Of Spring - Extra H.D, P/N BN24159

1шт.

BN66201

Spring, 2 3/4" OD, 1.10 ID

1шт.

Associated Part Of Spring - Extra H.D, P/N BN24159

1шт.

21

BN67914

STRUT

LH

1шт.

Shown

1шт.

BN67915

STRUT

RH

1шт.

Same Part Of Strut LH, P/N BN67914 But Opposite Side

1шт.

22

BN52026

SEAL

2шт.

23

9672528

ROLLER BEARING,69.85mm ID

2шт.

24

BN52024

RACE

2шт.

25

510892

BEARING CUP,112.71mm OD x 23.81mm W

2шт.

26

BN276475

ROLLER BEARING

2шт.

27

BN66137

WASHER

2шт.

32

BN63919

BRACKET

Mount - Hyd hose

2шт.

33

BN89874

DUST CAP

2шт.

34

BN65577

BRACKET

LH

1шт.

Shown

1шт.

BN65576

SUPPORT

RH

1шт.

Same Part Of Brace - L.H , P/N BN65577 But Opposite Side

1шт.

35

BN65499

BOLT

5/16" - 18 x 3/4"

8шт.

36

BN50064

NUT

3/8"-16, Stainless Steel

2шт.

37

BN50367

BOLT

3/8"-16 x 1", G5

2шт.

38

BN50379

BOLT

1/2"-20 x 1", MH

12шт.

39

BN52320

BOLT

Hex, 5/8"-18 x 2 1/4", G8

16шт.

40

50726

BOLT Hex, 5/8"-18 x 2", G5

8шт.

41

BN50775

LOCK NUT

5/8"-18 UNF Center

8шт.

42

87343677

NUT

Hex, 5/8"-18, G8

16шт.

43

BN50775

LOCK NUT

5/8"-18 UNF Center

16шт.

44

BN50367

BOLT

3/8"-16 x 1", G5

2шт.

45

BN50145

WASHER

3/8, G5

2шт.

46

BN50131

LOCK NUT

3/8-16, CTR, PL

2шт.
