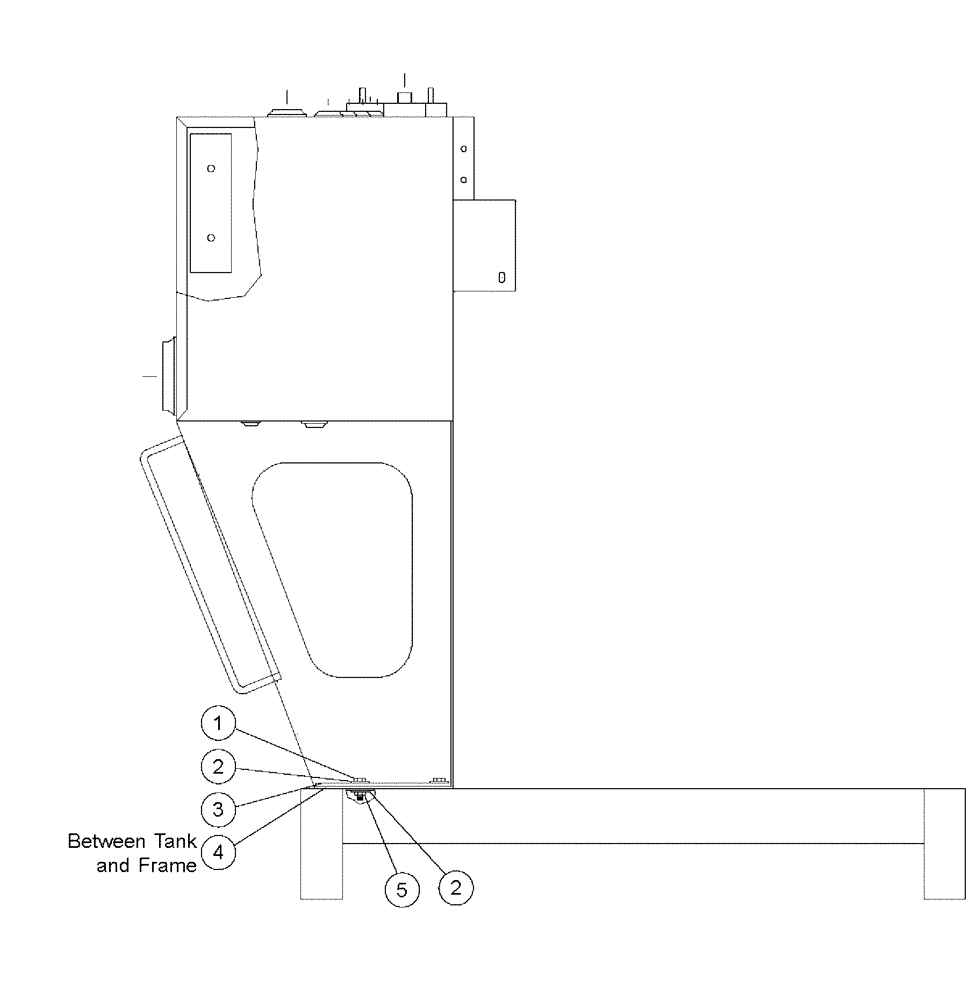

Запчасти Case IH PATRIOT XL (04-005) - OIL TANK MOUNTING Suspension & Frame

1

BN300169

SCREW,1/2" - 13 x 1 3/4"

1/2"-13 x 1.75, PL, G8

4шт.

2

BN300176

WASHER

Flat, 1/2, G8

8шт.

3

BN300172

PLATE

2шт.

4

63678

WASHER,6.4mm ID x 17mm OD x 3mm Thk

Shim-16 GA .409 SS 2.5 x 2.5

2шт.

Between Tank and Frame

1шт.

5

BN50998

LOCK NUT

1/2-13 Top, 8, PL

4шт.
