Запчасти Case IH PATRIOT XL (04-002) - HOOD, FUELTANK, MIRRORS, TOOLBOX Suspension & Frame

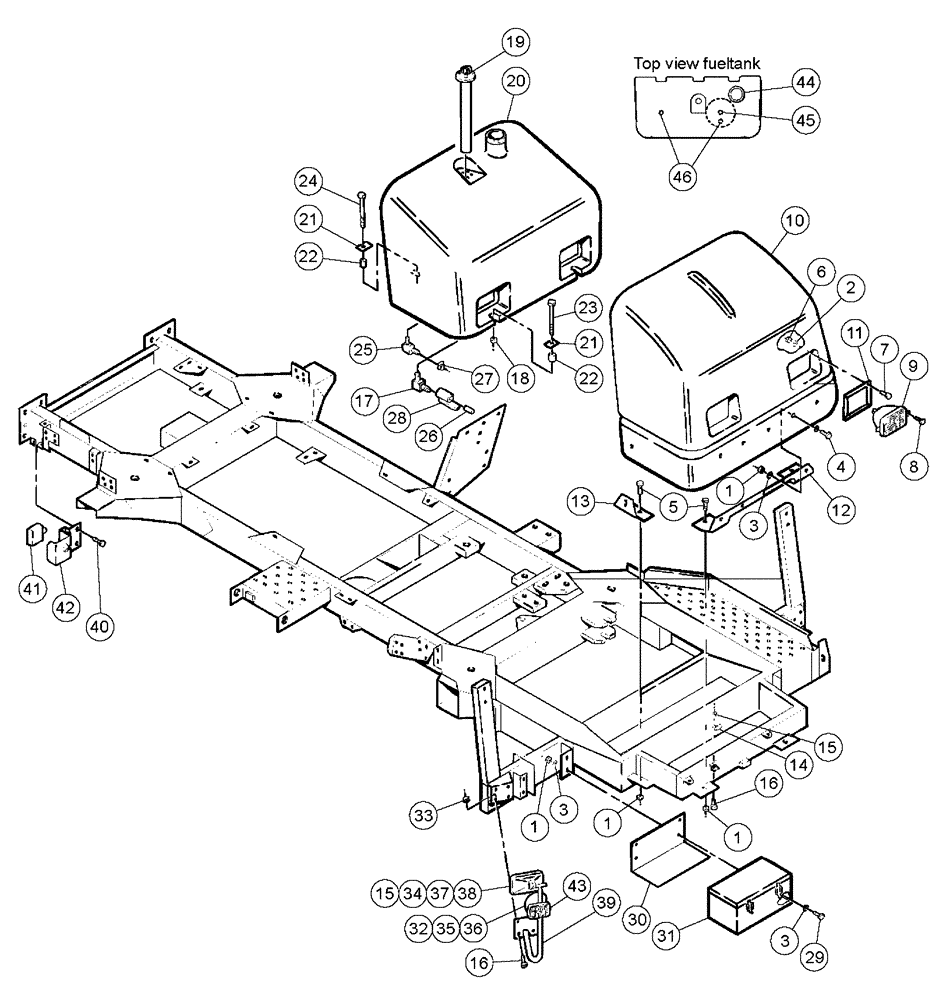

Схема запчастей Case IH PATRIOT XL - (04-002) - HOOD, FUELTANK, MIRRORS, TOOLBOX Suspension & Frame
33
3
29
20
1
44
11
6
16
28
32
46
40
1
15
12
37
22
7
26
10
2
35
24
36
27
31
21
34
25
4
9
3
5
39
38
1
22
1
23
13
8
19
18
3
43
16
30
21
17
41
42
14
15
45

Артикул

Название

Примечание

Количество

1

BN50051

NUT,1/4"-20, USR

15шт.

2

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

8шт.

3

87529236

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

0.281 X 0.625 X 0.065 HTS DOR HDN

16шт.

4

BN50671

BOLT,1/4"-20 x 1.00", Stainless Steel

7шт.

BN52344

WASHER

SS & Neoprene

7шт.

Service Parts For Ref. 4

1шт.

5

BN50211

BOLT

1/4"-20 x .75, HH, G5, PL

4шт.

6

BN50795

NUT

hex, #8-32 (Steel)

8шт.

7

BN52046

BOLT,Pan Hd, Phil, #8 - 32 x 1/2", Stainless

8"-32 x 1/2" SS, PH, Phillip

8шт.

8

BN52048

SCREW,Phil Pan Hd, #6 x 3/4", SST

#6 X 3/4 SS, PH

4шт.

9

BN66133

HEADLAMP,Halogen, 12V, 55W, Clear

HI-LO Beam - 12V

2шт.

BN300872

BULB

Halogen - 12V

2шт.

Service Parts For Ref. 6

1шт.

BN301706

ADAPTER

Headlight Wire

2шт.

Service Parts For Ref. 8

1шт.

10

BN67340

ENGINE HOOD

1шт.

11

BN67648

PLATE

Headlight Back

2шт.

12

BN67659

MOUNTING PLATE

Front Hood

1шт.

13

BN67660

MOUNTING PLATE

Side Hood

2шт.

14

86624005

CLAMP,19mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

15

BN50061

LOCK NUT

3/8"-16, UNC, Whiz

2шт.

16

BN50254

BOLT,3/8"-16 x 1", Stainless

5шт.

17

BN52300

ELBOW

90° 1/4"-18 NPT

1шт.

18

BN55335

NUT

1/2"-13 Whiz Lock

4шт.

19

BN66125

SENDER UNIT

SENDER Fuel 12V-25"

1шт.

20

BN67342

FUEL TANK

1шт.

20a

BN68502

CAP

Used on Fuel Tank

1шт.

21

BN67652

PLATE

Tank Hold Down

4шт.

22

BN67653

BUSHING

TB, RD, Bushing

4шт.

23

68537

BOLT Hex, 1/2"-13 x 8 1/2", G5

2шт.

24

68538

BOLT,Hex, 1/2"-13 x 10 1/2", G5

2шт.

25

BN69748

Hose Barb 1/4 MPTX 1/4 X 90º

1шт.

26

BN72017

HOSE

barb-1/4" NPTM x 3/8" steel

1шт.

27

BN76094

HOSE CLAMP

SS #M4

2шт.

28

BN94071

VALVE

Bronze Ball 1/4 NPT

1шт.

29

BN50486

BOLT

1/4-20 X .625, HH, G5

4шт.

30

BN68536

BRACKET, SUPPORTING

Tool Box Mount

1шт.

31

87268338

TOOL BOX

Portable Assembly

1шт.

32

BN50056

LOCK NUT

5/16"-18, Whiz

2шт.

33

BN50131

LOCK NUT

3/8-16, CTR, PL

4шт.

34

BN50232

BOLT,5/16"-18 x 1.00", Stainless Steel

1шт.

35

BN50476

BOLT,5/16"-18 x 0.75", Stainless

1шт.

36

BN63850

MIRROR

8" Convex Black

1шт.

37

BN63851

MIRROR

7.5 X 10.5 Black

1шт.

38

BN306477

CLAMP

Assembly, Mirror

1шт.

39

BN68252

MIRROR

1шт.

40

50726

BOLT Hex, 5/8"-18 x 2", G5

4шт.

41

BN66129

TAIL LAMP

Stop Red 12V

2шт.

300875

LAMP

Bulb - 12V

2шт.

Service Parts For Ref. 41

1шт.

BN300871

LENS

red

2шт.

Service Parts For Ref. 41

1шт.

BN300881

CAP

Lens, Black

2шт.

42

BN68843

BRACKET

Taillight

2шт.

43

BN66130

FLASHER LAMP

Signal, Amber 12V

2шт.

529068

BULB,#1156, 12V, 21W

2шт.

Service Parts For Ref. 43

1шт.

BN300878

LENS

amber

2шт.

Service Parts For Ref. 43

1шт.

BN300881

CAP

Lens, Black

2шт.

44

BN68502

CAP

1шт.

45

BN68501

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

fuel fitting

1шт.

BN68499

NUT

LH thread, fuel fitting

1шт.

Associated Part Of O-Ring, P/N BN68501

1шт.

BN300604

FITTING

fuel, long brass

1шт.

Associated Part Of O-Ring, P/N BN68501

1шт.

46

BN68499

NUT

LH thread, fuel fitting

2шт.

BN68500

FITTING

fuel, short brass

2шт.

Associated Part Of Nut, P/N BN68499

1шт.

BN68501

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

fuel fitting

2шт.

Associated Part Of Nut, P/N BN68499

1шт.

Выбрано товаров: 71
