Запчасти Case IH PATRIOT XL (09-047[02]) - 90 6-BOOM SHUTOFF-20" ON CENTER-NOZZLES, CENTER BOOM 5-WAY NOZZLES Liquid Plumbing

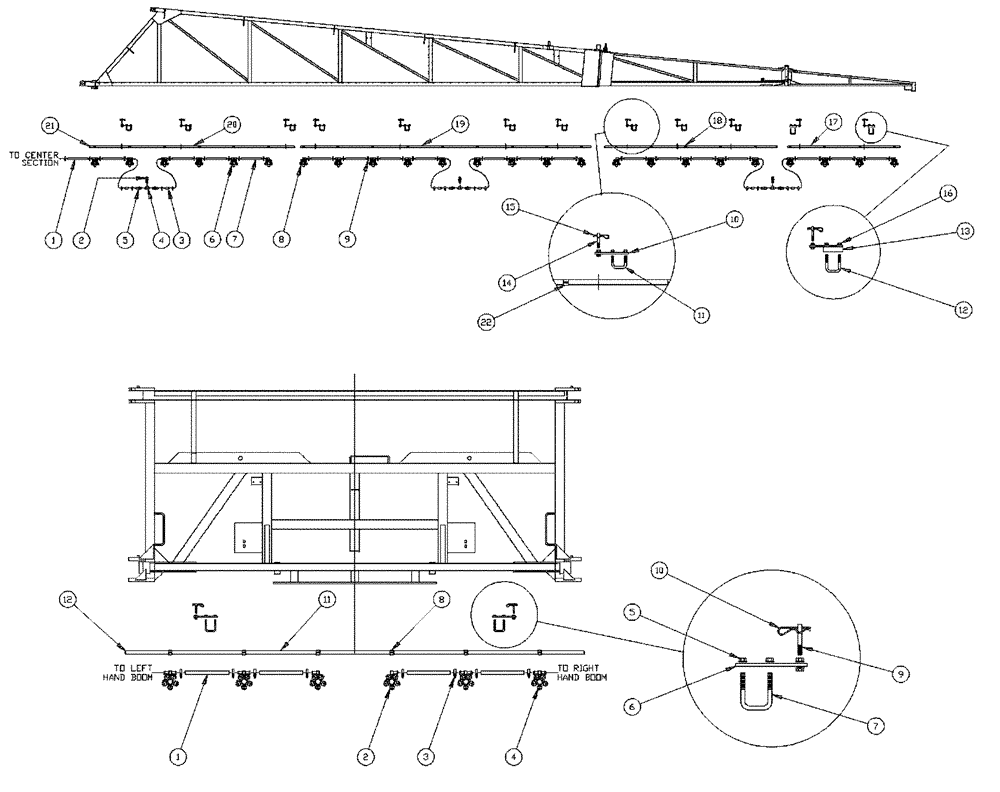

Схема запчастей Case IH PATRIOT XL - (09-047[02]) - 90 6-BOOM SHUTOFF-20" ON CENTER-NOZZLES, CENTER BOOM 5-WAY NOZZLES Liquid Plumbing
6
10
14
8
6
3
2
15
17
11
4
1
11
5
5
10
12
20
7
7
9
19
1
18
21
13
3
12
22
4
9
16
8
2

Артикул

Название

Примечание

Количество

1

BN69978

3/4" ID EPDM X 60"

1шт.

2

BN53667

COUPLING

Camlock-Male (THD) To Male

3шт.

3

BN53737

FLEXIBLE HOSE,0.75" ID x 7.50"

6шт.

4

BN73629

TEE

1" Poly Pipe

3шт.

5

BN53666

FITTING

Barb - 1 NPT X 3/4" Hose

6шт.

6

BN68699

NOZZLE

5 way double, 3/4" SHA

19шт.

Shown

1шт.

6

BN74621

NOZZLE

3-Way Double 3/4" SHA

19шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

6

BN74617

NOZZLE

1 way double, with cap, 3/4" SHA

19шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

7

BN53738

FLEXIBLE HOSE,0.75" ID x 18.50"

18шт.

8

BN69475

NOZZLE

5 way single, 3/4" SHA

5шт.

Shown

1шт.

8

BN74622

NOZZLE

3 way single, with cap, 3/4" SHA

5шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

8

BN74618

1-way Single 3/4" SHA

5шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

9

BN75978

HOSE CLAMP

SS-#12 ADJ. HS .56-1.25

50шт.

10

BN67279

BRACKET

mount, dry boom

12шт.

11

BN68062

U-BOLT

BOLT "U" 3/8-square bend - 2.06 id

10шт.

12

BN53731

U-BOLT

3/8" - square bend 2" ID

2шт.

13

BN68213

BAR

Nozzle, Breakaway

2шт.

14

BN29599

PIN,9.53mm OD x 64mm L

Rework Bolt 3/8"-16 x 2.75

12шт.

15

BN71006

COTTER PIN

1/8", #11

12шт.

16

BN50061

LOCK NUT

3/8"-16, UNC, Whiz

48шт.

17

BN25936

TUBE

1 x 1 x 12 ga x 64.62 Long

1шт.

18

BN67274

TUBE

nozzle mount

1шт.

19

BN67275

TUBE

nozzle mount

1шт.

20

BN67277

TUBE

nozzle mount

1шт.

21

BN32823

PLUG

Cap - Tubing - Fits 1 x 1 x 14G

8шт.

22

BN74448

CLAMP

1" square tubing

24шт.

1

BN53738

FLEXIBLE HOSE,0.75" ID x 18.50"

4шт.

2

BN69475

NOZZLE

5 way single, 3/4" SHA

2шт.

Shown

1шт.

2

BN74622

NOZZLE

3 way single, with cap, 3/4" SHA

2шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

2

BN74618

1-way Single 3/4" SHA

2шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

3

BN75978

HOSE CLAMP

SS-#12 ADJ. HS .56-1.25

8шт.

4

BN68699

NOZZLE

5 way double, 3/4" SHA

4шт.

Shown

1шт.

4

BN74621

NOZZLE

3-Way Double 3/4" SHA

4шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

4

BN74617

NOZZLE

1 way double, with cap, 3/4" SHA

4шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

5

BN50061

LOCK NUT

3/8"-16, UNC, Whiz

8шт.

6

BN67279

BRACKET

mount, dry boom

2шт.

7

BN67284

U-BOLT

3/8", square bend - 1.25" ID

2шт.

8

BN74448

CLAMP

1" square tubing

6шт.

9

BN29599

PIN,9.53mm OD x 64mm L

Rework Bolt 3/8"-16 x 2.75

2шт.

10

BN71006

COTTER PIN

1/8", #11

2шт.

11

BN24486

TUBE

1" Sq x 124"

1шт.

12

BN32823

PLUG

Cap - tubing - Fits 1 X 1 X 14 G

2шт.

Выбрано товаров: 54
