(09-044) - 90 6-BOOM SHUTOFF-RAVEN/MID-TECH LH BOOM

Запчасти Case IH PATRIOT XL (09-044) - 90 6-BOOM SHUTOFF-RAVEN/MID-TECH LH BOOM Liquid Plumbing

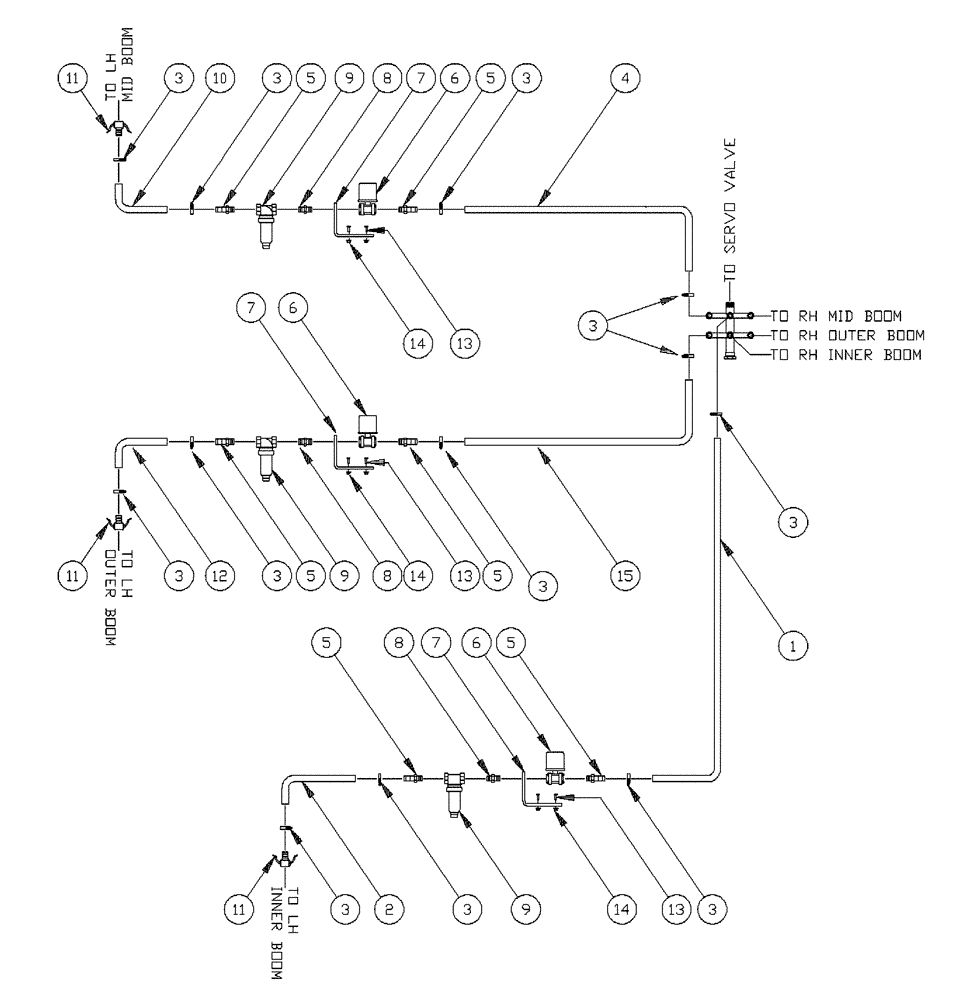

Схема запчастей Case IH PATRIOT XL - (09-044) - 90 6-BOOM SHUTOFF-RAVEN/MID-TECH LH BOOM Liquid Plumbing
5
7
4
6
11
3
7
5
2
14
6
12
3
14
3
13
3
5
8
3
3
1
9
9
3
5
13
3
10
5
8
7
8
13
14
3
3
11
15
11
6
5
9
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN66857

HOSE

1" EPDM x 15.00"

1шт.

2

BN66858

HOSE

1" EPDM x 31.00"

1шт.

3

BN75990

HOSE CLAMP

#16, Stainless Steel

12шт.

4

BN53746

HOSE,1.00" ID x 250.00"

EPDM

1шт.

5

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

6шт.

6

87389559

VALVE

Electric, 1" Ball

3шт.

7

BN24083

MOUNTING PLATE

7 GA HRS 3.0 x 5.75/2

3шт.

8

BN73648

NIPPLE

1" Short Poly Pipe

3шт.

9

BN73681

FILTER STRAINER

Assembly 1"-50 Mesh

3шт.

9a

BN73679

FILTER STRAINER

SCREEN, 50 MESH

1шт.

10

BN67565

HOSE

1" EPDM x 350.00"

1шт.

9b

84222934

SCREEN,80 Mesh Screen

80 MESH

1шт.

11

BN53668

COUPLING

1" Female, HS SHK

3шт.

12

BN66855

HOSE

1" EPDM x 26.00"

1шт.

13

BN50211

BOLT

1/4"-20 x .75, HH, G5, PL

6шт.

14

BN50051

NUT,1/4"-20, USR

6шт.

15

BN66854

HOSE

1" EPDM x 135.00"

1шт.
