Запчасти Case IH PATRIOT XL (09-042[02]) - 75 5-BOOM SHUTOFF-20" ON CENTER-NOZZLES, CENTER BOOM 5-WAY NOZZLES Liquid Plumbing

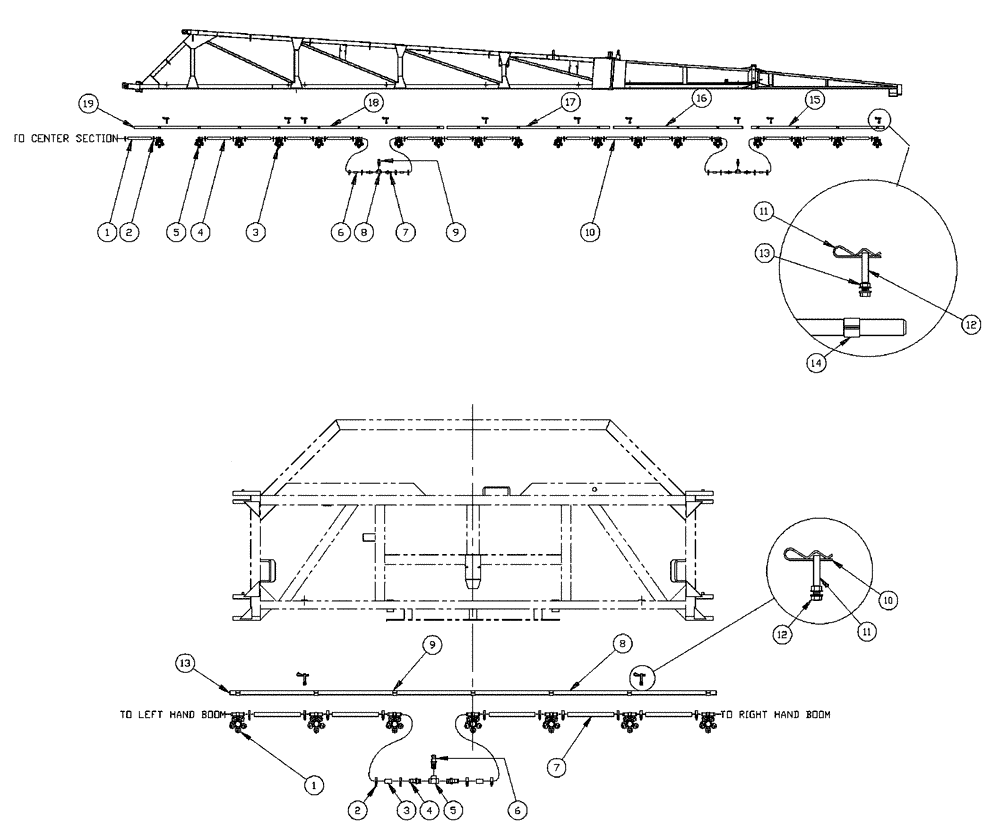

Схема запчастей Case IH PATRIOT XL - (09-042[02]) - 75 5-BOOM SHUTOFF-20" ON CENTER-NOZZLES, CENTER BOOM 5-WAY NOZZLES Liquid Plumbing
7
8
5
18
4
4
6
15
6
14
1
3
2
10
2
11
11
9
19
12
7
3
1
8
13
10
5
16
9
17
12
13

Артикул

Название

Примечание

Количество

1

BN53749

HOSE,0.75" ID x 36.00"

1шт.

2

BN75978

HOSE CLAMP

SS-#12 ADJ. HS .56-1.25

38шт.

3

BN68699

NOZZLE

5 way double, 3/4" SHA

14шт.

Shown

1шт.

3

BN74621

NOZZLE

3-Way Double 3/4" SHA

14шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

3

BN74617

NOZZLE

1 way double, with cap, 3/4" SHA

14шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

4

BN53738

FLEXIBLE HOSE,0.75" ID x 18.50"

13шт.

5

BN69475

NOZZLE

5 way single, 3/4" SHA

5шт.

Shown

1шт.

5

BN74622

NOZZLE

3 way single, with cap, 3/4" SHA

5шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

5

BN74618

1-way Single 3/4" SHA

5шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

6

BN53737

FLEXIBLE HOSE,0.75" ID x 7.50"

4шт.

7

BN53666

FITTING

Barb-1 NPT X 3/4 Hose

4шт.

8

BN73629

TEE

1" Poly Pipe

2шт.

9

BN53667

COUPLING

Camlock-Male, Serial Range: (Thd)-Male

2шт.

10

BN53819

HOSE

EPDM, 3/4" ID x 66"

1шт.

11

BN71006

COTTER PIN

1/8", #11, Rework Bolt 3/8 X 2.75

10шт.

12

BN29599

PIN,9.53mm OD x 64mm L

Rework Bolt 3/8"-16 x 2.75

10шт.

13

BN50061

LOCK NUT

3/8"-16, UNC, Whiz, 1" Square Tubing

20шт.

14

BN74448

CLAMP

1" square tubing

19шт.

15

BN25936

TUBE

1 x 1 x 12 ga x 64.62 Long

1шт.

16

BN25937

TUBE

1 x 1 x 12 ga x 66.5 Long

1шт.

17

BN24477

TUBE

1" Sq x 81.5"

1шт.

18

BN24478

TUBE

1" Sq x 155"

1шт.

19

BN32823

PLUG

Cap - Tubing - Fits 1 x 1 x 14G

8шт.

1

BN68699

NOZZLE

5 way double, 3/4" SHA

7шт.

Shown

1шт.

BN74621

NOZZLE

3-Way Double 3/4" SHA

7шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

BN74617

NOZZLE

1 way double, with cap, 3/4" SHA

7шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

2

BN75978

HOSE CLAMP

SS-#12 ADJ. HS .56-1.25

14шт.

3

BN53737

FLEXIBLE HOSE,0.75" ID x 7.50"

2шт.

4

BN53666

FITTING

Barb-1 NPT X 3/4" Hose

2шт.

5

BN73629

TEE

1" Poly Pipe

1шт.

6

BN53667

COUPLING

Camlock-Male, Serial Range: (Thd)-Male

1шт.

7

BN53738

FLEXIBLE HOSE,0.75" ID x 18.50"

5шт.

8

BN24486

TUBE

1" Sq x 124"

1шт.

9

BN74448

CLAMP

1" square tubing

7шт.

10

BN71006

COTTER PIN

1/8", #11

2шт.

11

BN29599

PIN,9.53mm OD x 64mm L

Rework Bolt 3/8"-16 x 2.75

2шт.

12

BN50061

LOCK NUT

3/8"-16, UNC, Whiz

4шт.

13

BN32823

PLUG

Cap - Tubing - Fits 1 x 1 x 14G

2шт.

Выбрано товаров: 47
