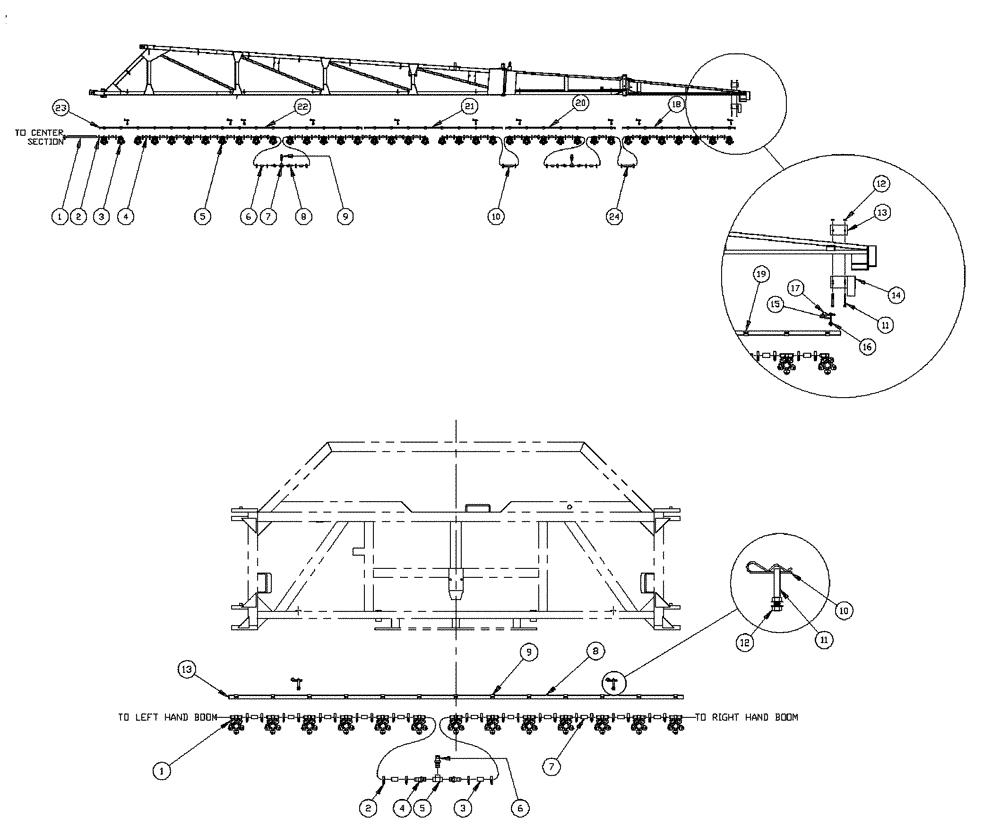

Запчасти Case IH PATRIOT XL (09-041[02]) - 75 5-BOOM SHUTOFF-10" ON CENTER-NOZZLES, LH BOOM 5-WAY NOZZLES Liquid Plumbing

1

BN68699

NOZZLE

5 way double, 3/4" SHA

13шт.

Shown

1шт.

BN74621

NOZZLE

3-Way Double 3/4" SHA

13шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

BN74617

NOZZLE

1 way double, with cap, 3/4" SHA

13шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

2

BN75978

HOSE CLAMP

SS-#12 ADJ. HS .56-1.25

26шт.

3

BN53860

EPDM 3/4" ID X 1.75"

2шт.

4

BN53666

FITTING

Barb -1 NPT X 3/4" Hose

2шт.

5

BN73629

TEE

1" Poly Pipe

1шт.

6

BN53667

COUPLING

Camlock-Male, Serial Range: (Thd)-Male

1шт.

7

BN53862

Hose - EPDM 3/4" ID x 8.5"

11шт.

8

BN24486

TUBE

1" Sq x 124"

1шт.

9

BN74448

CLAMP

1" square tubing

13шт.

10

BN71006

COTTER PIN

1/8", #11

2шт.

11

BN29599

PIN,9.53mm OD x 64mm L

Rework Bolt 3/8"-16 x 2.75

2шт.

12

BN50061

LOCK NUT

3/8"-16, UNC, Whiz

4шт.

13

BN32823

PLUG

Cap - Tubing - Fits 1 x 1 x 14G

2шт.
