Запчасти Case IH PATRIOT XL (09-041[01]) - 75 5-BOOM SHUTOFF-10" ON CENTER-NOZZLES, BOOM 5-WAY NOZZLES Liquid Plumbing

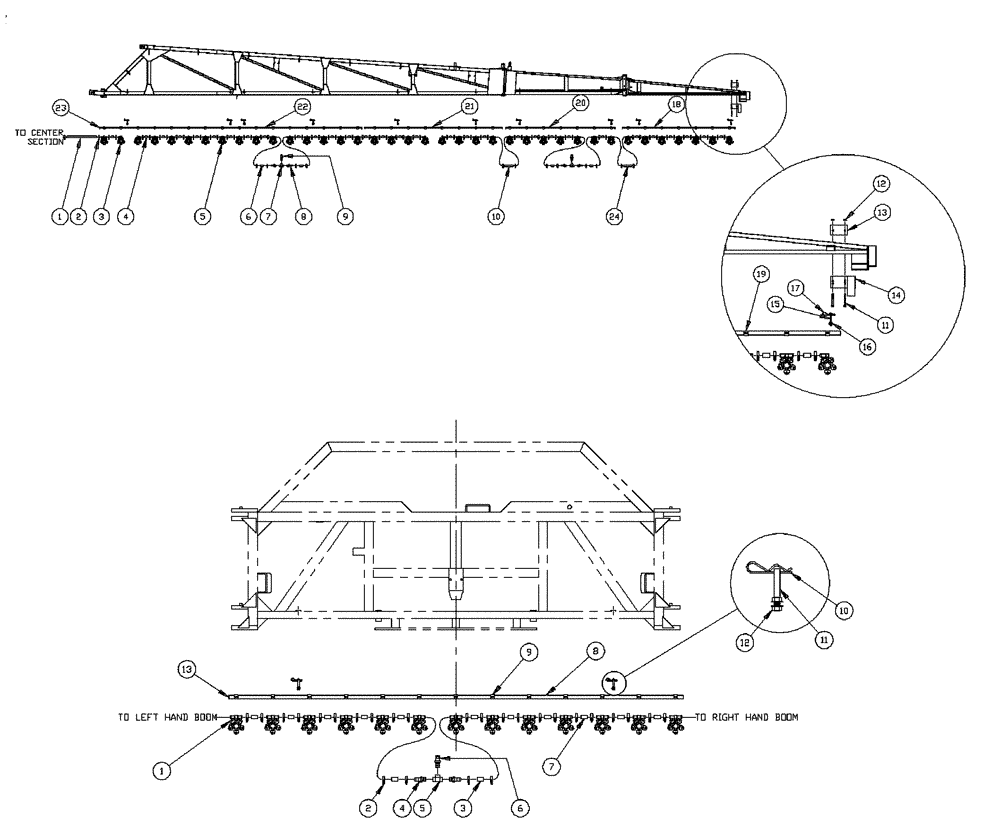

Схема запчастей Case IH PATRIOT XL - (09-041[01]) - 75 5-BOOM SHUTOFF-10" ON CENTER-NOZZLES, BOOM 5-WAY NOZZLES Liquid Plumbing
18
8
5
4
23
6
19
11
9
12
1
7
2
8
22
15
7
12
1
11
4
2
13
3
6
24
17
16
13
3
14
9
21
10
10
20
5

Артикул

Название

Примечание

Количество

1

BN53861

HOSE

EPDM 3/4" ID X 37

1шт.

2

BN75978

HOSE CLAMP

SS-#12 ADJ. HS .56-1.25

76шт.

3

BN69475

NOZZLE

5 way single, 3/4" SHA

5шт.

Shown

1шт.

3

BN74622

NOZZLE

3 way single, with cap, 3/4" SHA

5шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

3

BN74618

1-way Single 3/4" SHA

5шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

4

BN53862

Hose - EPDM 3/4" ID x 8.5"

31шт.

5

BN68699

NOZZLE

5 way double, 3/4" SHA

33шт.

Shown

1шт.

5

BN74621

NOZZLE

3-Way Double 3/4" SHA

33шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

5

BN74617

NOZZLE

1 way double, with cap, 3/4" SHA

33шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

6

BN53860

EPDM 3/4" ID X 1.75"

4шт.

7

BN73629

TEE

1" Poly Pipe

2шт.

8

BN53666

FITTING

Barb - 1 NPT X 3/4 Hose

4шт.

9

BN53667

COUPLING

Camlock-Male, Serial Range: (Thd)-Male

2шт.

10

BN53819

HOSE

EPDM, 3/4" ID x 66"

1шт.

11

BN50895

BOLT

5/16-18 X 3, HH, 5, PL

2шт.

12

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

2шт.

13

BN24668

MOUNTING PLATE

7 GA HRS 2.5 X 4.25

1шт.

14

BN24665

MOUNTING PLATE

RH-Foam Tube

1шт.

Shown

1шт.

14

BN24666

MOUNTING PLATE

LH-Foam Tube

1шт.

15

BN29599

PIN,9.53mm OD x 64mm L

Rework Bolt 3/8"-16 x 2.75

10шт.

16

BN50061

LOCK NUT

3/8"-16, UNC, Whiz

20шт.

17

BN71006

COTTER PIN

1/8", #11

10шт.

18

BN25936

TUBE

1 x 1 x 12 ga x 64.62 Long

1шт.

19

BN74448

CLAMP

1" square tubing

38шт.

20

BN25937

TUBE

1 x 1 x 12 ga x 66.5 Long

1шт.

21

BN24477

TUBE

1" Sq x 81.5"

1шт.

22

BN24478

TUBE

1" Sq x 155"

1шт.

23

BN32823

PLUG

Cap - Tubing - Fits 1 x 1 x 14G

8шт.

24

BN27905

HOSE,19.05mm ID x 304.8mm L

EPDM 3/4" ID x 12"

1шт.

Выбрано товаров: 36
