Запчасти Case IH PATRIOT XL (09-040) - 75 5-BOOM SHUTOFF CENTER BOOM Liquid Plumbing

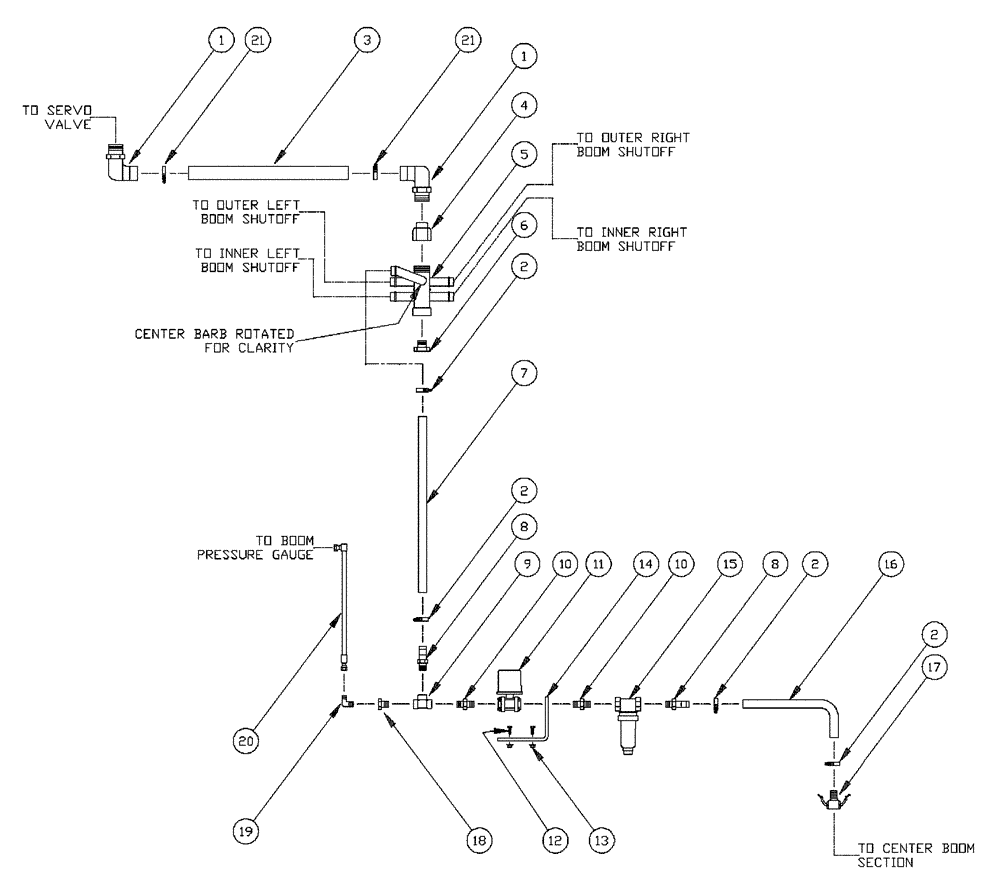

Схема запчастей Case IH PATRIOT XL - (09-040) - 75 5-BOOM SHUTOFF CENTER BOOM Liquid Plumbing
5
8
3
15
2
20
16
7
19
14
1
13
2
17
1
8
2
6
21
9
10
11
12
21
18
4
2
10

Артикул

Название

Примечание

Количество

1

BN73663

ELBOW,90 Degree Elbow, 1-1/4" Male NPT x 1-1/4" Hose Barb, Poly

1-1/4" NPT x 1-1/4" Hose Barb, 90°, Poly

1шт.

2

BN75990

HOSE CLAMP

#16, Stainless Steel

4шт.

3

BN53887

HOSE,84.00"

1шт.

4

BN69960

REDUCER,1-1/2" x 1-1/4" Poly Reducing Coupling

1.5-1.25

1шт.

5

BN24776

MANIFOLD

5-Way 1.5" Outlet

1шт.

6

BN73731

PLUG,1-1/2" Male NPT, Poly

1 1/2" Poly Pipe

1шт.

7

BN69393

HOSE

1" EPDM X 58"

1шт.

8

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

2шт.

9

BN73629

TEE

1" Poly Pipe

1шт.

10

BN73648

NIPPLE

1" Short Poly Pipe

2шт.

11

87389559

VALVE

Electric, 1" Ball

1шт.

12

BN50211

BOLT

1/4"-20 x .75, HH, G5, PL

2шт.

13

BN50051

NUT,1/4"-20, USR

2шт.

14

BN24083

MOUNTING PLATE

7 GA HRS 3.0 x 5.75/2

1шт.

15

BN73681

FILTER STRAINER

Assembly 1"-50 Mesh

1шт.

15a

BN73679

FILTER STRAINER

SCREEN, 50 MESH

1шт.

16

BN66859

HOSE

1" EPDMX 23.00"

1шт.

15b

84222934

SCREEN,80 Mesh Screen

80 MESH

1шт.

17

BN53668

COUPLING

1" Female, HS SHK

1шт.

18

BN2390261

REDUCER

Bushing - 1" x 1 /4"

1шт.

19

BN53734

ELBOW

Fitting, 90° 1/4" NPT x 9/16" JIC

1шт.

20

BN67393

HOSE

3/8" ID EDPM x 278"

1шт.

21

BN76084

HOSE CLAMP

Adj. #24, SS

2шт.

Выбрано товаров: 23
