Запчасти Case IH PATRIOT XL (10-003) - DECALS - INTERIOR (CAB) (13) - DECALS

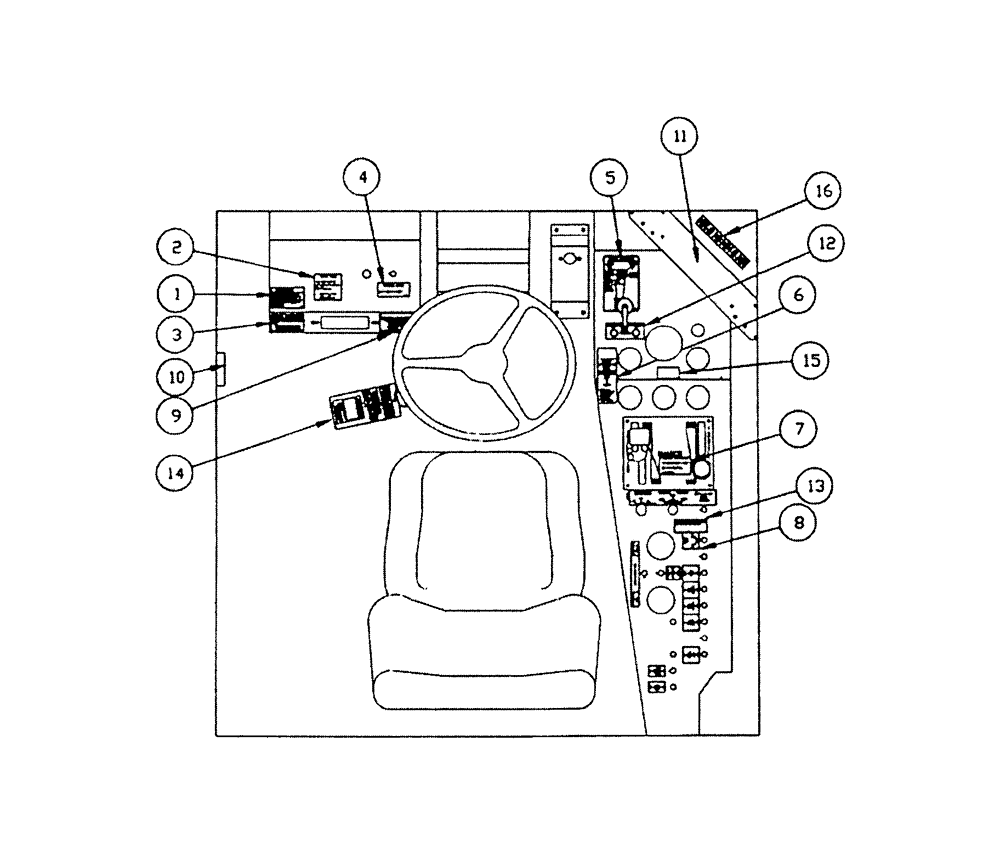

Схема запчастей Case IH PATRIOT XL - (10-003) - DECALS - INTERIOR (CAB) (13) - DECALS
15
3
14
6
11
1
12
13
16
4
8
2
9
5
10
7

Артикул

Название

Примечание

Количество

1

BN29634

Decal, Boom Fold

1шт.

2

BN29411

Decal, Drive Hubs

1шт.

3

BN29635A

DECAL

Wheel Tread Adjustment

1шт.

4

BN29718

DECAL

Parking Brake

1шт.

5

BN25201

DECAL

Boom Control

1шт.

6

BN29764

Decal, Spray Operation

1шт.

7

BN29398A

Decal, Caution, Starting

1шт.

8

BN25305A

DECAL

Console, Lower

1шт.

9

BN29982

DECAL

Caution, Brake On

1шт.

10

BN25179

DECAL

Caution, Safety Pin CTR SEC (On Door)

1шт.

11

BN25306

Decal, Boom Shut-Off

1шт.

12

BN63749

DECAL

Signal Light

1шт.

13

BN63916

DECAL

Foam Pressure Control

1шт.

14

BN65208

DECAL

Tag, Safety Alter (To Be Removed By Customer)

1шт.

15

BN63956

DECAL

Hydraulic Maintenance

1шт.

16

BN67238

Decal, Boom Shut-Off (6) - 90' Boom

1шт.

BN24146

DECAL

Warning, Control Cable (Wrapped Around Cable Under Dash)

1шт.

Not Shown

1шт.

BN24356

Decal Set, Complete (Interior) Patriot II

1шт.

Not Shown

1шт.

BN24493

Decal Set, Complete (Interior) Patriot XL

1шт.

Not Shown

1шт.

Выбрано товаров: 22
