Запчасти Case IH PATRIOT XL (10-002) - DECALS - EXTERIOR, 65286 SET (13) - DECALS

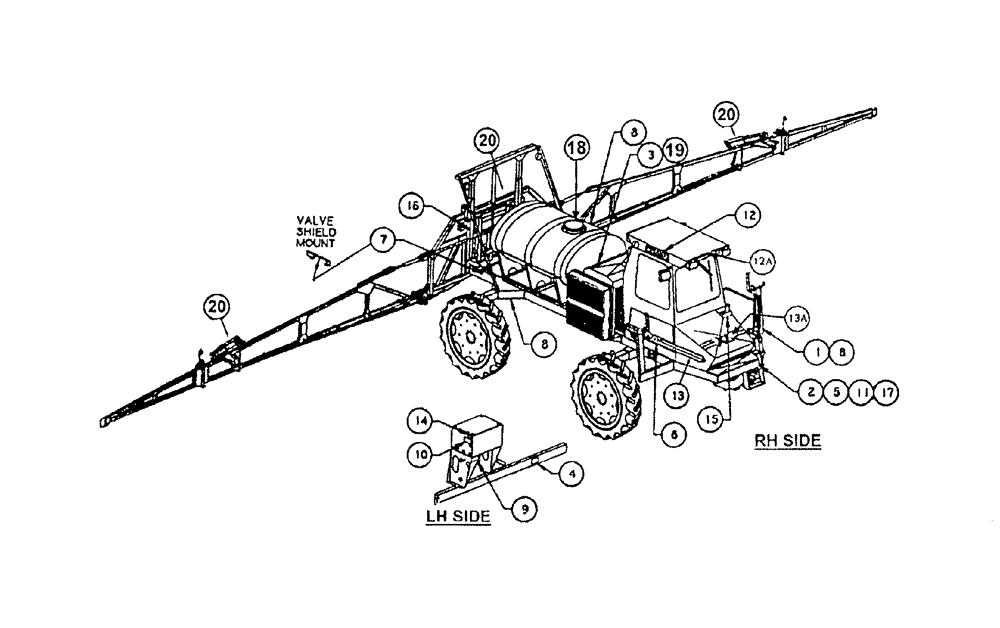

Схема запчастей Case IH PATRIOT XL - (10-002) - DECALS - EXTERIOR, 65286 SET (13) - DECALS
19
14
3
16
11
13
1
7
8
2
8
8
9
5
20
18
4
10
20
17
12a
6
12
20
15
13a

Артикул

Название

Примечание

Количество

1

BN11886A

DECAL

Caution - Do Not Ride

1шт.

2

BN12429A

DECAL

Caution - Read Manual

1шт.

3

BN21723B

DECAL

Danger - Tank Pressure

1шт.

4

BN23877

CAUTION DECAL

Chemical

1шт.

5

BN29369

DECAL

Made By Tyler

1шт.

6

BN25240

DECAL

Patriot™ XL

1шт.

7

BN29624A

Decal, Function Valve (7 Bank)

1шт.

8

BN29636A

DECAL

Caution - Torque Nuts

1шт.

9

BN29646

DECAL

Warning - Fluid Presssure

1шт.

10

BN65285

DECAL

Add Hydraulic Oil - Sight

1шт.

11

BN25214

DECAL

Caution - Ladder

1шт.

12

BN54130A

Decal, Tyler Logo

1шт.

12a

BN54145

DECAL

Tyler (Die Cut)

1шт.

13

BN54131

Decal, Red Stripe

1шт.

13a

BN25242

DECAL

Stripe (Narrow XL-Hood)

1шт.

14

BN63961

DECAL

Hydraulic Oil

1шт.

15

BN400324A

DECAL

Warning - Diesel Fuel

1шт.

16

BN25179

DECAL

Caution - Pin CTR Boom

1шт.

17

BN25292

DECAL

Caution - Weight Restrictions

1шт.

18

BN63998

DECAL

Chemical Application

1шт.

19

BN65207

DECAL

Caution Jump-Start

1шт.

20

BN67243

DECAL

Caution, Strainer Pressure, (3 to 5 Places on Boom), Start Serial: 1574

1шт.

BN29637A

DECAL

Fuse Block, Switched, Under Dash

1шт.

BN29638

DECAL

Fuse Block, Unswitched, Under Dash

1шт.

BN24603

DECAL

Towing Trailer (Hitch Option) (Adjustable)

1шт.

BN24101

DECAL

Raise Lower Hitch (Hitch Option) (Adjustable)

1шт.

BN25304

Decal, Caution - Weight Restrictions (Weight Rack Option)

1шт.

BN63915

DECAL

Caution Foamer Mixing, On Foamer Tank

1шт.

Not Shown

1шт.

Выбрано товаров: 29
