Запчасти Case IH PATRIOT XL (09-006) - LIQUID PLUMBING - TANK & SKID RAVEN (500 GAL. TANK) Liquid Plumbing

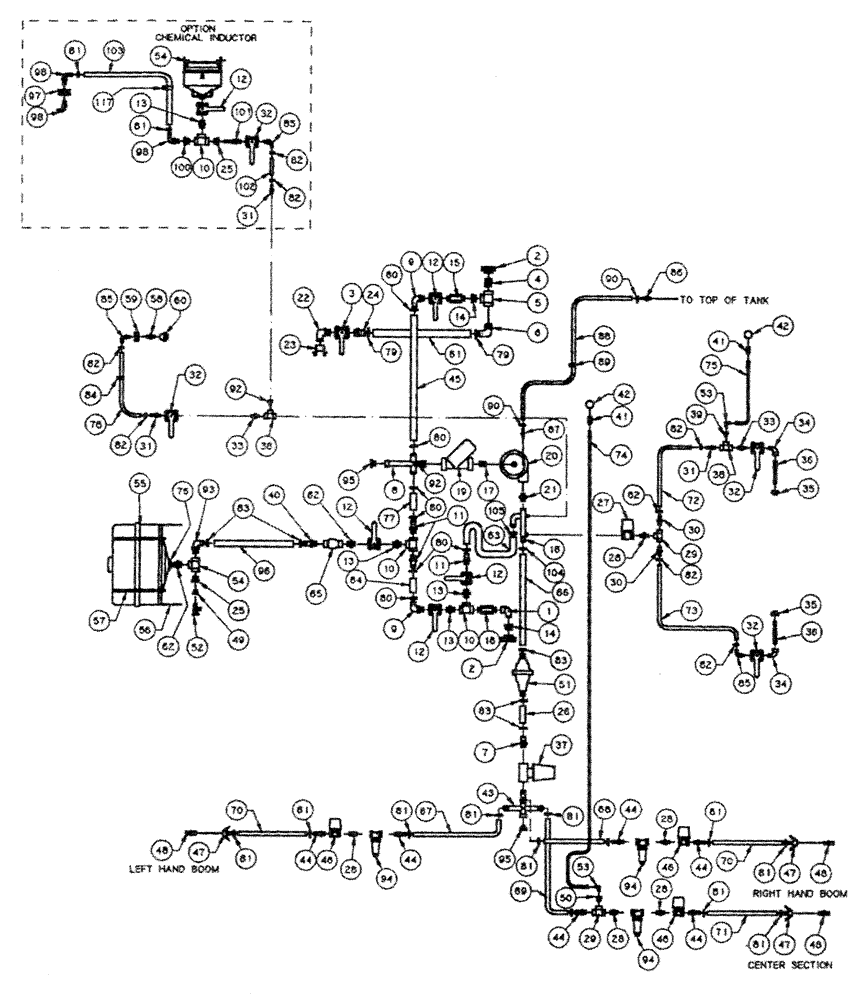

Схема запчастей Case IH PATRIOT XL - (09-006) - LIQUID PLUMBING - TANK & SKID RAVEN (500 GAL. TANK) Liquid Plumbing
25
79
73
48
65
54
12
77
81
82
31
95
81
70
15
53
97
87
104
58
81
44
32
55
53
51
12
93
82
66
90
11
32
20
92
56
41
45
83
98
80
10
81
9
24
12
10
47
48
7
59
28
33
18
81
89
51
71
102
17
40
9
100
21
14
81
44
51
94
25
63
32
85
62
31
57
10
8
98
13
13
82
28
64
37
26
85
1
3
84
11
13
2
83
88
94
31
54
28
87
85
82
33
48
43
62
81
79
5
117
98
94
14
82
101
82
35
44
47
80
44
47
46
30
81
38
70
42
76
44
81
75
19
34
35
38
18
90
80
27
32
72
6
12
26
74
92
13
41
103
81
38
30
98
39
22
46
29
80
105
62
83
46
28
82
34
44
29
36
52
81
95
4
23
50
80
89
49
75
88
12
60
2
42
86

Артикул

Название

Примечание

Количество

1

BN73730

ELBOW,1-1/2", Poly

Straight, 1 1/2" Poly

1шт.

2

BN73784

FITTING

Bulkhead - 2"

2шт.

3

BN73761

VALVE,2" NPT x 2" NPT

Ball, 2" Full Port

1шт.

4

BN73783

NIPPLE

2"

1шт.

5

BN73779

TEE,2" Poly Tee

2" Poly Pipe

1шт.

6

401875A1

FITTING,2" Male Thread x 2" 90 Degree Hose Barb

2" MNPT x 2" Hose Barb, Poly

1шт.

7

BN73740

PIPE FITTING,1-1/2" Male Thread x 1-1/4" Hose Barb

Hose Barb - 1-1/2" x 1-1/4"

1шт.

8

BN22469

Manifold - Inlet

1шт.

9

BN73723

ELBOW,90 Degree Elbow, 1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1-1/2" NPT x 1-1/2" Hose Barb, Poly

2шт.

10

BN73714

TEE,1-1/2" Female NPT x 1-1/2" Female NPT x 1-1/2" Female NPT, Poly

1-1/2" NPT, Poly

2шт.

11

413083A1

PIPE FITTING,1-1/2" Male Thread x 1-1/2" Hose Barb

Hose Barb, 1 1/2"

3шт.

12

BN73711

VALVE,1-1/2" NPT x 1-1/2" NPT

1 1/2" Ball

4шт.

13

BN73715

NIPPLE,1-1/2" Short Poly Nipple

1 1/2" Short Poly

4шт.

14

BN73787

SLEEVE

Bushing - 2" - 1-1/2"

2шт.

15

BN73722

NIPPLE, LUBE,1-1/2" Male NPT x 1-1/2" Male NPT, 6" Long

NIPPLE 1-1/2" x 6"

1шт.

16

BN73732

LUBE NIPPLE

1-1/2" x 4"

1шт.

17

BN73320

NIPPLE

1-1/2" SS

1шт.

18

BN29958

MANIFOLD

Liq. Product 770

1шт.

19

BN73718

Strainer

1шт.

BN24084

FILTER STRAINER

30 Mesh for #73718

1шт.

20

BN53670

HYDROSTATIC PUMP

Complete Product Pump

1шт.

See Fig. 08-009 For Seal & Repair Parts

1шт.

BN53670R

REMAN-HYDROSTAT PUMP

PATRIOT II (5/92 - 5/96), PATRIOT XL (5/93 - 5/98)

1шт.

BN53670C

CORE-HYDROSTAT PUMP

Return Number

1шт.

21

BN73270

NIPPLE

Close 1.25 NPT SS

1шт.

22

BN25262

ELBOW

90°, 2" NPT

1шт.

23

BN22901

DUST CAP,2" Cam Lever Dust Cap

2" Cam Lever

1шт.

24

BN73781

FITTING,2" Male NPT x 2" Hose Barb, Poly

2" NPT x 2" Hose Barb

1шт.

25

BN73653

BUSHING,1-1/4" Male NPT x 3/4" Female NPT, Poly

1-1/4" x 3/4"

1шт.

26

BN24530

HOSE

1 1/4" EPDM x 6"

1шт.

27

87546542

HYDRAULIC VALVE

Electric 1"

1шт.

28

BN73648

NIPPLE

1" Short Poly Pipe

5шт.

29

BN73629

TEE

1" Poly Pipe

2шт.

30

BN53666

FITTING

Barb - 1" x 3/4" Hose Shank

2шт.

31

BN73561

FITTING

Hose Barb - 3/4"

2шт.

32

BN73564

VALVE

Ball - 3/4"

3шт.

33

BN73565

NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly

Pipe, 3/4"

2шт.

34

BN73566

ELBOW,3/4" Male NPT x 3/4" Female NPT, Poly

90, Street, 3/4" Poly

2шт.

35

BN73563

BULKHEAD

Fitting

2шт.

36

BN53671

AGITATOR

2шт.

37

BN302855

VALVE

1 1/2" 440 Assembly

1шт.

38

BN73560

TEE

3/4"

2шт.

39

BN73550

BUSHING

3/4" x 1/4"

1шт.

40

87743696

FITTING

1-1/4" NPT X 1-1/4" Hose Barb, Poly

1шт.

41

BN53733

ADAPTER

1/4" NPT x 9/16" JIC

2шт.

42

BN98104

ELECTRICAL GAUGE

100 PSI

2шт.

43

BN25333

MANIFOLD

Outlet

1шт.

44

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

6шт.

45

BN53763

1-1/2" x 14"

1шт.

46

BN53495

VALVE

Ball

3шт.

BN24083

MOUNTING PLATE

7 GA HRS 3.0 x 5.75/2

3шт.

47

BN53668

COUPLING

1" Female, HS SHK

3шт.

48

BN53667

COUPLING

Adapter - Male 1"

3шт.

49

BN73552

BUSHING,3/4" MPT x 1/2"FPT Reducing Bushing

Bushing - 3/4" x 1/2"

1шт.

50

BN2390261

REDUCER

Bushing - 1" x 1 /4"

1шт.

51

87378188

REPAIR KIT

Raven RFM60 Flow Meter With Adaptor Harness

1шт.

52

BN53817

DRAIN VALVE

Plastic, 1/2" NPT

1шт.

53

BN53734

ELBOW

90° 1/4" NPT x 9/16" JIC

2шт.

54

BN73662

TEE

1-1/4"

1шт.

55

BN24189

TANK

1шт.

BN24183

COVER

Rinse Tank (Ace)

1шт.

56

BN24301

SUPPORT

35 Gallon Tank 771

1шт.

57

BN24298

BAND

Tank

2шт.

58

BN73649

NIPPLE,1" x 3/4" Poly Reducing Nipple

1" x 3/4" Poly

1шт.

59

BN73563

BULKHEAD

Fitting

1шт.

60

29568

NOZZLE

Rinse 360 Degree

1шт.

61

BN53808

2" x 36"

1шт.

62

BN73727

NIPPLE,1-1/2" NPT x 1-1/4" NPT

Reducer, 1.25 x 1.5

2шт.

63

BN53754

HOSE,12.50"

1шт.

64

BN53815

1-1/2" x 4-1/2"

1шт.

65

BN24567

CHECK VALVE

1 1/4" NPT

1шт.

66

BN24529

Hose - 1-1/4" x 39"

1шт.

67

BN53745

1" x 190"

1шт.

68

BN53746

HOSE,1.00" ID x 250.00"

EPDM

1шт.

69

BN53744

FLEXIBLE HOSE,1.00" ID x 65.00"

1шт.

70

BN53756

HOSE,42.00"

2шт.

71

BN53743

FLEXIBLE HOSE,1.00" ID x 33.00"

1шт.

72

BN53740

HOSE,0.75" ID x 57.00"

1шт.

73

BN53783

HOSE

3/4" x 39"

1шт.

74

BN29999

HOSE

3/8" id EPDM x 260"

1шт.

75

BN67392

HOSE

3/8" x 144" EPDM

1шт.

76

BN73733

FITTING

1 1/2" Bulkhead

1шт.

77

BN53816

1-1/2" x 16-1/2"

1шт.

78

BN53765

HOSE,85.00"

1шт.

79

BN76056

HOSE CLAMP

#36

2шт.

80

BN76093

HOSE CLAMP

#28, SS

7шт.

81

BN75990

HOSE CLAMP

#16, Stainless Steel

12шт.

82

BN75978

HOSE CLAMP

SS, No. 12 adj., HS, .56-1.25

6шт.

83

BN76084

HOSE CLAMP

Adj. #24, SS

5шт.

84

86625038

CLAMP,25.4mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

85

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

Hose Barb - 3/4" x 90°

2шт.

86

BN72039

1/4" x 1/4"

1шт.

87

BN72040

FITTING,1/8" MPT x 1/4" HB

Hose Barb, 1/8" NPT x 1/4" ID HS

1шт.

88

BN53785

HOSE,74.00"

1шт.

89

BN41859

CLAMP

9/16", Vinyl Covered

1шт.

90

BN76094

HOSE CLAMP

SS #M4

2шт.

92

BN73553

PLUG

3/4" NPT, Poly

3шт.

93

BN73663

ELBOW,90 Degree Elbow, 1-1/4" Male NPT x 1-1/4" Hose Barb, Poly

1-1/4" NPT x 1-1/4" Hose Barb, 90°, Poly

1шт.

94

BN73681

FILTER STRAINER

Line

3шт.

94a

BN73679

FILTER STRAINER

SCREEN, 50 MESH

1шт.

94b

84222934

SCREEN,80 Mesh Screen

80 MESH

1шт.

95

BN73731

PLUG,1-1/2" Male NPT, Poly

1 1/2" Poly Pipe

2шт.

96

BN24529

Hose - 1-1/4" x 20"

1шт.

104

BN53810

HOSE CLAMP

T-Bolt - 1-3/4"

1шт.

105

BN53811

CLAMP

2" ID, T-bolt

1шт.

BN72041

HOSE

1/4" Bulk EPDM Discharge

1шт.

Not Shown

1шт.

BN27905

HOSE,19.05mm ID x 304.8mm L

EPDM 3/4" ID x 12"

1шт.

Not Shown

1шт.

BN53479

HOSE,1.00" ID BULK

EPDM Discharge

1шт.

Not Shown

1шт.

BN53621

HOSE,1.50" ID BULK

EPDM Suction

1шт.

Not Shown

1шт.

BN29564

HOSE

2" Bulk EPDM Suction

1шт.

Not Shown

1шт.

BN29498

SKID PLATE

500 Gallon

1шт.

Not Shown

1шт.

BN67711

TANK

500 Gallon

1шт.

Not Shown

1шт.

BN29577

STRAP

Band - 500 Gallon

3шт.

Not Shown

1шт.

BN67713

COVER ASSY

Manhole (500-750 GAL Tank)

1шт.

Not Shown

1шт.

BN50707

BOLT

J-3/8-16 x 4.5

6шт.

Not Shown

1шт.

BN67712

FILTER STRAINER

1шт.

Not Shown

1шт.

10

BN73714

TEE,1-1/2" Female NPT x 1-1/2" Female NPT x 1-1/2" Female NPT, Poly

1-1/2" NPT, Poly

1шт.

Chemical Inductor, Optional

1шт.

12

BN73711

VALVE,1-1/2" NPT x 1-1/2" NPT

1 1/2" Ball

1шт.

Chemical Inductor, Optional

1шт.

13

BN73715

NIPPLE,1-1/2" Short Poly Nipple

1 1/2" Short Poly

1шт.

Chemical Inductor, Optional

1шт.

25

BN73716

BUSHING,1-1/2" Male NPT x 3/4" Female NPT, Poly

1.5 x .75 Reducer Poly

1шт.

Chemical Inductor, Optional

1шт.

31

BN73561

FITTING

Hose Barb - 3/4"

1шт.

Chemical Inductor, Optional

1шт.

32

BN73564

VALVE

Ball - 3/4"

1шт.

Chemical Inductor, Optional

1шт.

54

BN24269

TANK

Chemical Inductor

1шт.

Chemical Inductor, Optional

1шт.

BN24277

PIN

3/8" SS rod x 13.75"

1шт.

Chemical Inductor, Optional

1шт.

81

BN75990

HOSE CLAMP

#16, Stainless Steel

2шт.

Chemical Inductor, Optional

1шт.

82

BN75978

HOSE CLAMP

SS, No. 12 adj., HS, .56-1.25

2шт.

Chemical Inductor, Optional

1шт.

85

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

Hose Barb - 3/4" x 90°

1шт.

Chemical Inductor, Optional

1шт.

97

BN73680

FITTING

bulkhead 1" poly

1шт.

Chemical Inductor, Optional

1шт.

98

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

Hose Barb - 1", 90°

3шт.

Chemical Inductor, Optional

1шт.

100

BN73717

BUSHING,1-1/2" Male NPT x 1" Female NPT, Poly

1.5 x 1

1шт.

Chemical Inductor, Optional

1шт.

101

BN23475

VENTURI

1шт.

Chemical Inductor, Optional

1шт.

102

BN53819

HOSE

EPDM, 3/4" ID x 66"

1шт.

Chemical Inductor, Optional

1шт.

103

BN53820

1" x 86"

1шт.

Chemical Inductor, Optional

1шт.

117

BN540018

1-7/16"

1шт.

Chemical Inductor, Optional

1шт.

Выбрано товаров: 163
