Запчасти Case IH PATRIOT WT (09-002) - DECALS - INTERIOR (13) - DECALS

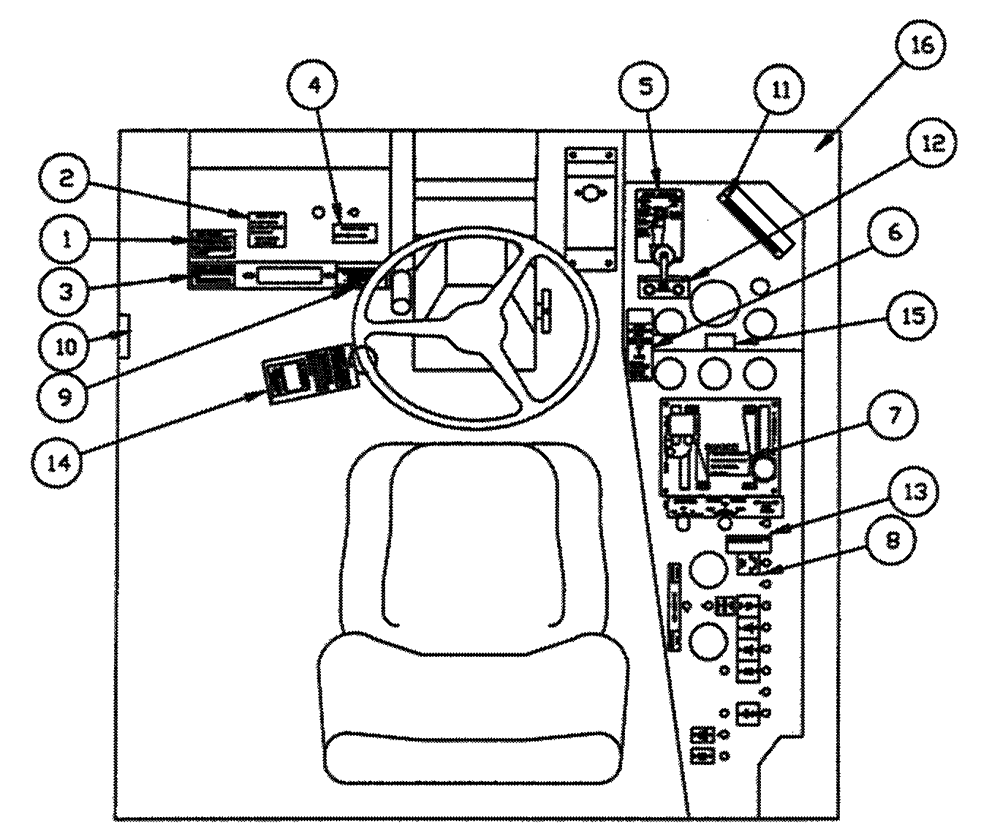

Схема запчастей Case IH PATRIOT WT - (09-002) - DECALS - INTERIOR (13) - DECALS
4
1
12
8
11
6
13
7
10
16
5
15
2
3
14
9

Артикул

Название

Примечание

Количество

1

BN29634

Boom Fold

1шт.

2

BN29411

Drive Hubs

1шт.

3

BN29635A

DECAL

Wheel Tread Adjustment

1шт.

4

BN29718

DECAL

Parking Brake

1шт.

5

BN25201

DECAL

Boom Control

1шт.

6

BN29764

Spray Operation

1шт.

7

BN29398A

Caution, Starting

1шт.

8

BN25305A

DECAL

Console, Lower

1шт.

9

BN29982

DECAL

Caution, Brake On

1шт.

10

BN25179

DECAL

Caution, Safety Pin Center, SEC (On Door)

1шт.

11

BN25306

Boom Shut-Off

1шт.

12

BN63749

DECAL

Turn Signal

1шт.

13

BN63918

Foam Pressure Control

1шт.

14

BN65208

DECAL

Tag, Safety Alter (To Be Removed By Customer)

1шт.

15

BN63956

DECAL

Hydraulic Maintenance

1шт.

16

BN67238

Boom Shut Off (6) - 90' Boom

1шт.

BN24146

DECAL

Warning, Control Cable (Wrapped Around Cable Under Dash)

1шт.

Not Shown

1шт.

BN98355

DECAL

DICKEY-John® Sprayer Constants

1шт.

Not Shown

1шт.

BN98356

DECAL

DICKEY-John® Sprayer Constants (On Cab Post - Right Front)

1шт.

Not Shown

1шт.

BN24493

Set Complete (Interior)

1шт.

Выбрано товаров: 23
