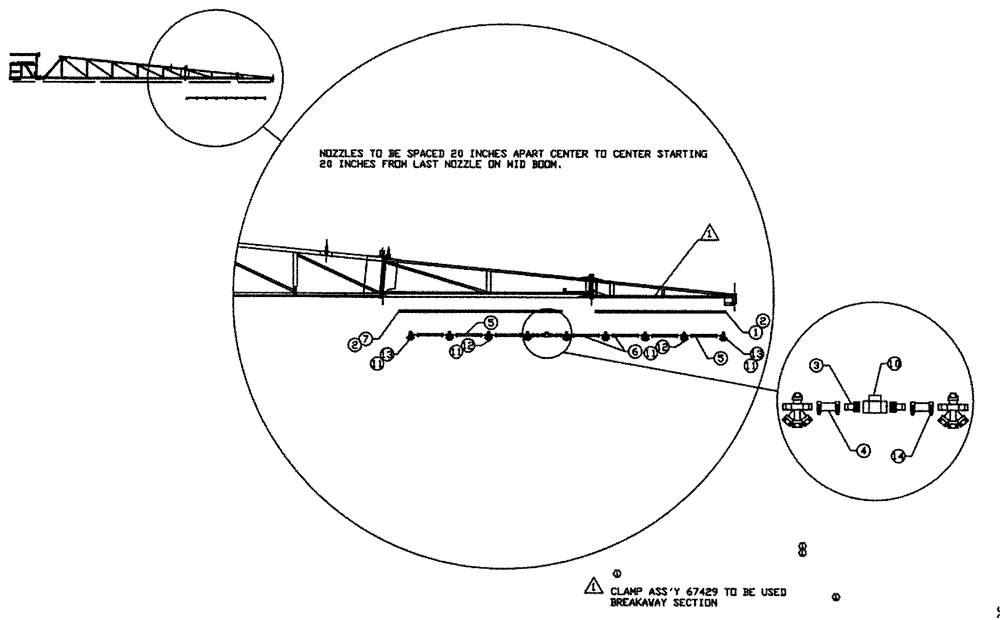

Запчасти Case IH PATRIOT WT (07-005) - BOOM NOZZLE SPACING - OUTER BOOM (90) (09) - BOOMS

1

BN68134

Nozzle Mount

1шт.

2

BN32823

PLUG

Cap - Tubing - Fits 1 x 1 x 14G

4шт.

3

BN53666

FITTING

Barb - 1 NPT X 3/4 Hose

2шт.

4

BN53737

FLEXIBLE HOSE,0.75" ID x 7.50"

2шт.

5

BN53738

FLEXIBLE HOSE,0.75" ID x 18.50"

5шт.

6

BN53863

EPDM 3/4" ID X 21"

2шт.

7

BN67274

TUBE

nozzle mount

1шт.

10

BN73629

TEE

1" Poly Pipe

1шт.

11

BN74448

CLAMP

1" square tubing

9шт.

12

BN74621

NOZZLE

3-Way Double 3/4" SHA

7шт.

13

BN74622

NOZZLE

3 way single, with cap, 3/4" SHA

2шт.

14

BN75978

HOSE CLAMP

SS-#12 ADJ. HS .56-1.25

18шт.

BN67278

Assembly, Dry Boom

3шт.

Not Shown

1шт.

BN67429

Assembly, Dry Boom

2шт.

Not Shown

1шт.
