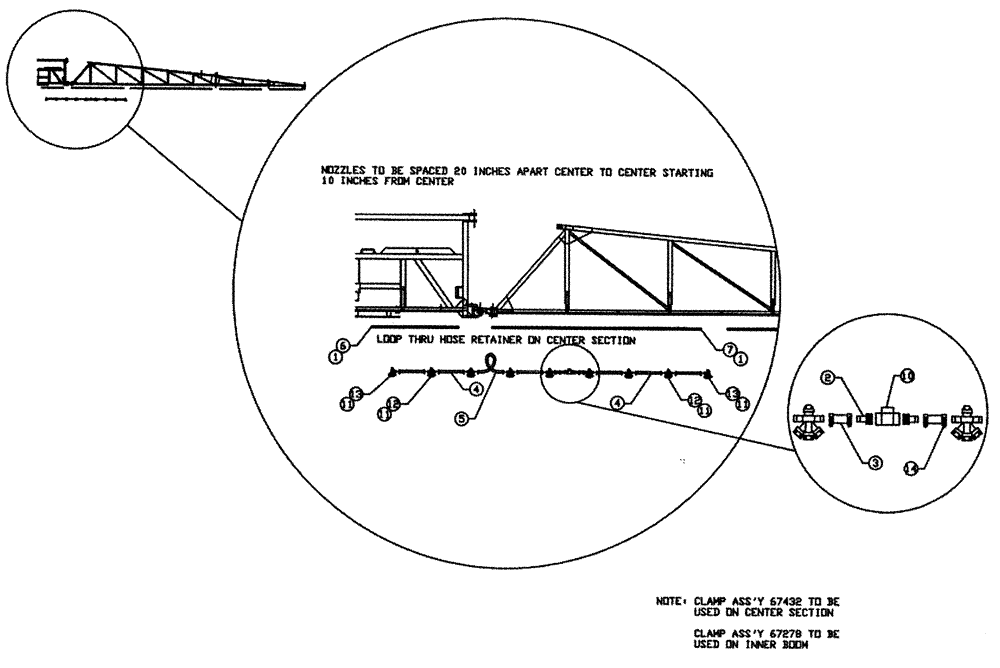

Запчасти Case IH PATRIOT WT (07-003) - BOOM NOZZLE SPACING - INNER BOOM (90) (09) - BOOMS

1

BN32823

PLUG

Cap - Tubing - Fits 1 x 1 x 14G

4шт.

2

BN53666

FITTING

Barb - 1 NPT X 3/4 Hose

2шт.

3

BN53737

FLEXIBLE HOSE,0.75" ID x 7.50"

2шт.

4

BN53738

FLEXIBLE HOSE,0.75" ID x 18.50"

6шт.

5

BN53914

HOSE,0.75" ID x 60.00"

1шт.

6

BN67276

1 X 1 X 12 GA X 44

1шт.

7

BN67277

TUBE

nozzle mount

1шт.

10

BN73629

TEE

1" Poly Pipe

1шт.

11

BN74448

CLAMP

1" square tubing

9шт.

12

BN74621

NOZZLE

3-Way Double 3/4" SHA

7шт.

13

BN74622

NOZZLE

3 way single, with cap, 3/4" SHA

2шт.

14

BN75978

HOSE CLAMP

SS-#12 ADJ. HS .56-1.25

18шт.

BN67278

Assembly, Dry Boom

3шт.

Not Shown

1шт.

BN67432

Assembly, Dry Boom

2шт.

Not Shown

1шт.
