Запчасти Case IH PATRIOT WT (07-001) - BOOM ASSEMBLY (75) (09) - BOOMS

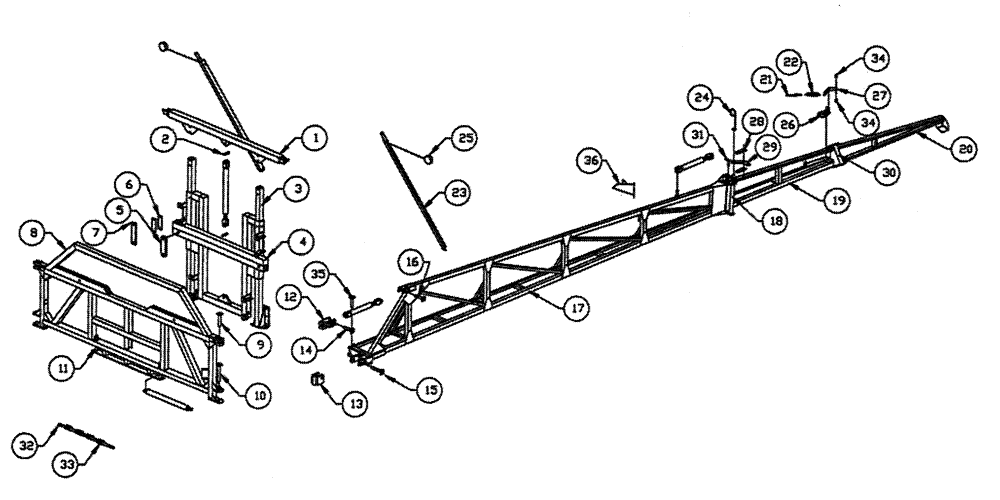

Схема запчастей Case IH PATRIOT WT - (07-001) - BOOM ASSEMBLY (75) (09) - BOOMS
6
28
1
8
34
2
7
31
5
9
25
14
24
12
36
18
30
10
21
17
29
34
27
11
32
26
13
20
4
3
16
33
15
19
23
35
22

Артикул

Название

Примечание

Количество

1

BN63501

HANGER

1шт.

2

86632567

HEADED PIN,30.14mm OD x 66.55mm L

2шт.

3

BN9273

Slide - LH

1шт.

Serial Number Sensitive. Need To Know Serial Number To Order Parts

1шт.

BN9274

Slide - RH

1шт.

Shown

1шт.

4

BN63496

RACK

Boom

1шт.

Serial Number Sensitive. Need To Know Serial Number To Order Parts

1шт.

5

BN29505

HANGER

3/4 x 3 HRFB x 10.50

4шт.

Serial Number Sensitive. Need To Know Serial Number To Order Parts

1шт.

3

BN67206

SLIDE

Rail LH

1шт.

Serial Number Sensitive. Need To Know Serial Number To Order Parts

1шт.

BN67207

SLIDE

Rail RH

1шт.

Shown

1шт.

4

BN67216

RACK

Center Boom

1шт.

Serial Number Sensitive. Need To Know Serial Number To Order Parts

1шт.

5

BN67214

HANGER

4шт.

Serial Number Sensitive. Need To Know Serial Number To Order Parts

1шт.

6

BN23267

Spacer

8шт.

7

87506475

UNION

valve cap 1" arag

4шт.

8

BN09256

BOOM

center section

1шт.

9

BN300279

PIN

1 1/4" X 4 1/2"

2шт.

10

BN65220

PIN

1.25" x 6.875

2шт.

11

BN52020

BOLT

Hex, 1"-8 x 7 1/2", G5

2шт.

BN50092

NUT

1"-8 Std

2шт.

87553819

JAM NUT

1"-8 Hex, Jam

2шт.

12

BN300281

SWIVEL CONNECTION

Swivel Assembly

2шт.

13

BN09072

PIVOT

Pivot Assembly

2шт.

14

BN65152

PIN

1.00 x 4.75

2шт.

15

BN65153

PIN

1.00 x 6.25

2шт.

16

BN65154

PIN

1. 00 x 3.75

2шт.

17

BN24390

Boom Inner - RH

1шт.

BN24391

Boom Inner - LH

1шт.

18

BN09270

PIN

Headed, 17.25" Long

2шт.

19

BN24420

BOOM

Fold - RH

1шт.

BN24421

BOOM

Fold - LH

1шт.

20

BN310869

BOOM

Breakaway - RH

1шт.

BN310870

BOOM

Breakaway - LH

1шт.

21

BN24504

LEVER

Takeup, Spring

2шт.

22

BN24468

SPRING

tension 1.25" x 5.5"

2шт.

23

BN63833

SUPPORT

Brace - LH

2шт.

24

BN24490

BRACKET

hose guide

2шт.

25

BN324281

LIGHT

Amber Flashing

2шт.

BN29973

LENS

Amber

4шт.

26

BN24499

BRACKET

75' Boom Latch LH

1шт.

BN24500

BRACKET

75' Boom Latch RH

1шт.

27

BN24452

LATCH

Mount - Breakaway, 75' boom

2шт.

28

BN21410A

BAR

1/2" x 1 1/2" x 5 3/4"

4шт.

29

BN21414A

BAR

Bar

2шт.

30

BN24487

PIN

75' boom

2шт.

31

BN22456

PIN,19.05mm OD x 81.28mm L

boom pivot

2шт.

32

BN21197

SHAFT

1" x 36"

1шт.

33

BN27328

SPRING

Compression, 1.75" od x11"

2шт.

34

BN19820

SPACER,10.92mm ID x 22.1mm OD x 36.2mm L

plastic .37 id x 1.42

4шт.

35

BN65210

PIN

1" x 5.13"

2шт.

36

BN67185

CRADLE

Boom

2шт.

BN24328

BUMPER

Split Hose x 6"

2шт.

Not Shown

1шт.

BN75990

HOSE CLAMP

#16, Stainless Steel

4шт.

Not Shown

1шт.

BN303882

SUPPORT

Brace - Angle, Boom Mast

1шт.

Not Shown

1шт.

BN24791

BRACKET

Cross Brace

1шт.

Not Shown

1шт.

BN63971

Bar (Rear Amber Flashers)

1шт.

Not Shown

1шт.

Выбрано товаров: 66
