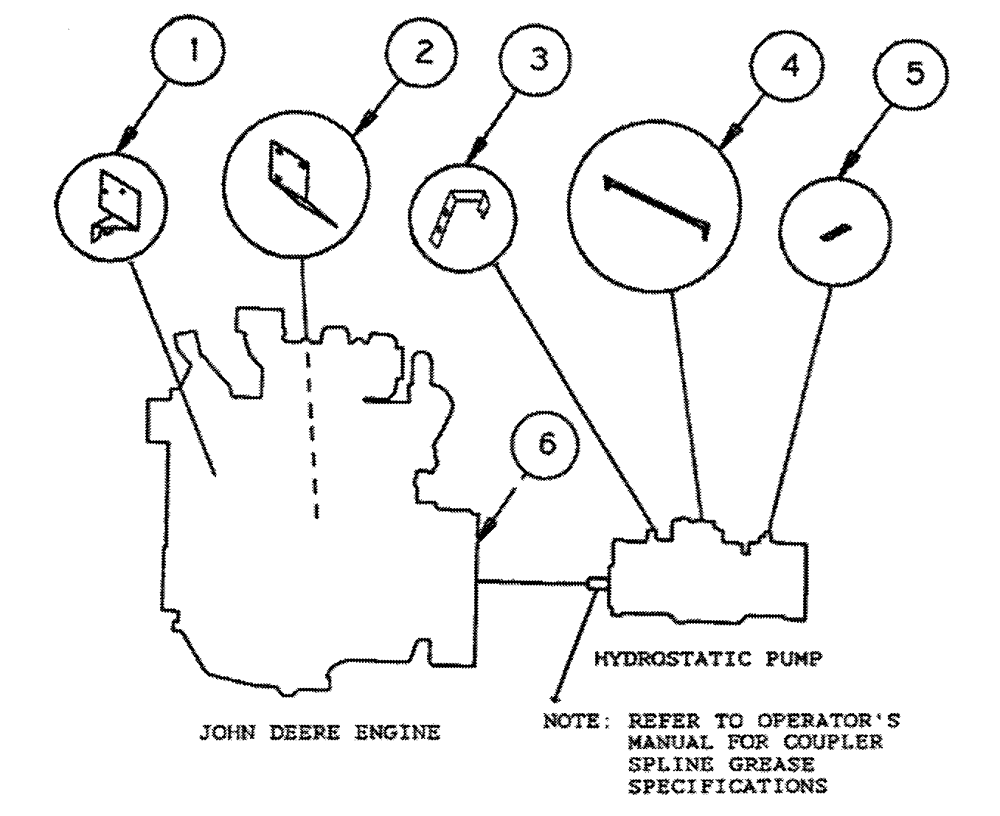

Запчасти Case IH PATRIOT WT (02-002) - ENGINE ASSEMBLY (01) - ENGINE

1

BN29257

CABLE,Throttle Cable, 2133.6mm L

Control, 84"

1шт.

NSS

NOT SOLD SEPARAT

Mount - Throttle Cable

1шт.

Order This Part From A John-Deere Dealer

1шт.

2

BN25607

Starter Relay

1шт.

3

BN24921

BRACKET

Mount-1/4" Hr 1.75 x 10.70

1шт.

BN29256

CABLE,2438.4mm L

Control, 96"

1шт.

See Operators Manual For Information On Push-Pull Cables

1шт.

BN29258

CLEVIS

Assembly With Pin

1шт.

4

BN24907

LINKAGE

Rod Assembly, Hydrostat

1шт.

BN50061

LOCK NUT

3/8"-16, UNC, Whiz

2шт.

5

BN25901

BRACKET

7 ga. 3" x 3" 304 SS

1шт.

6

BN25680

COUPLING

Flywheel & Mount Plate Assembly

1шт.

BN25641

RADIATOR

1шт.

Not Shown

1шт.

BN25926

w/Clamp

1шт.

Not Shown

1шт.

BN29335

PROTECTION CAP

Rain - (Exhaust)

1шт.

Not Shown

1шт.
