Запчасти Case IH PATRIOT WT (02-001) - ENGINE MOUNTS (SERIAL NUMBER 1078 & UP) (01) - ENGINE

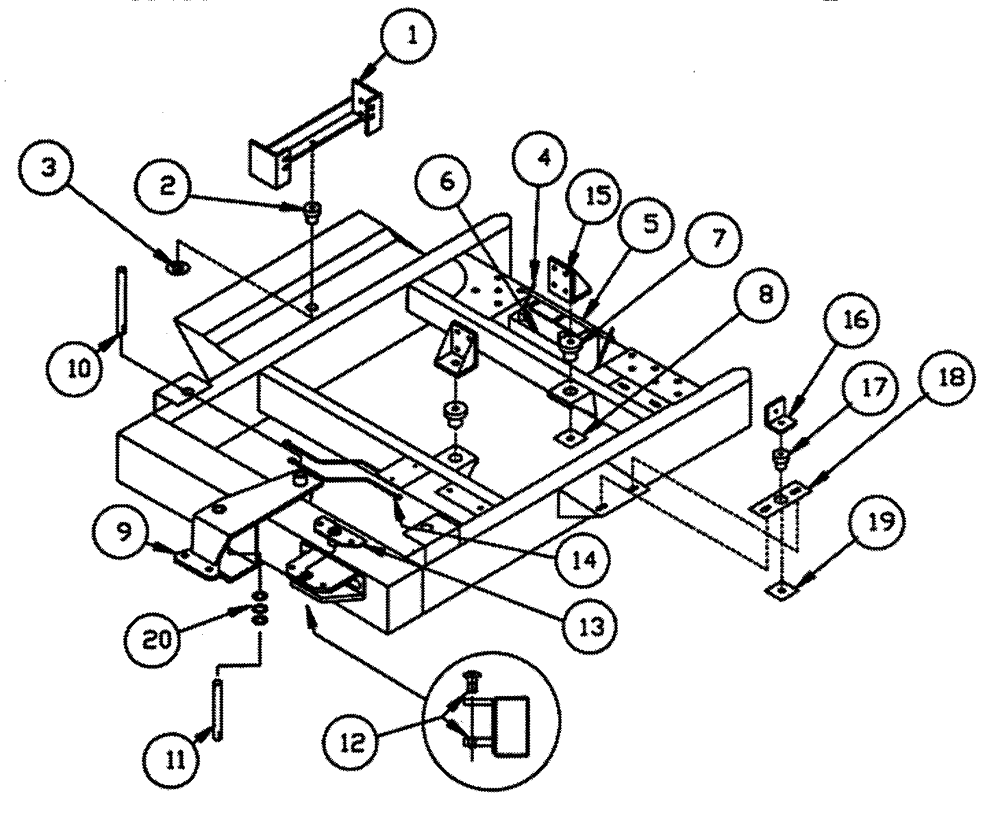

Схема запчастей Case IH PATRIOT WT - (02-001) - ENGINE MOUNTS (SERIAL NUMBER 1078 & UP) (01) - ENGINE
4
6
17
5
15
1
16
3
19
7
2
18
11
13
20
9
12
8
10
14

Артикул

Название

Примечание

Количество

1

BN25837

Motor

1шт.

2

BN25639

ISOLATOR

Rubber Motor Mount

1шт.

3

BN63818

WASHER,20.57mm ID x 69.85mm OD x 4.76mm Thk

7 GA 304 .81 x 2.75

1шт.

4

BN65127

(Battery Hold Down)

2шт.

5

BN29276

ANGLE

Battery Hold Down

1шт.

6

BN57234

BATTERY

12V, 950 CCA post

1шт.

6

BN29435

CABLE

Battery, Positive

1шт.

6

BN67535

Battery, Negative

1шт.

7

BN25639

ISOLATOR

Rubber Motor Mount

2шт.

8

BN63818

WASHER,20.57mm ID x 69.85mm OD x 4.76mm Thk

7 GA 304 .81 x 2.75

2шт.

9

BN63772

ARM

Steering

1шт.

10

BN25516

PIN

pivot - 1.03" x 12.5"

1шт.

11

BN63780

PIN

1.03 dia. CRS x 10

1шт.

Steering Hydraulic Cylinder

1шт.

12

BN63711

FLANGED BEARING,25.4mm ID x 28.57mm OD x 31.75mm L

2шт.

13

BN63790

BUSHING

1шт.

14

BN29427

Ground (Frame To Cab & Engine)

2шт.

15

BN25600

Motor

2шт.

16

BN25882

MOUNT

Pump, 3" x 3" x 3/8" Angle x 3"

1шт.

17

BN29243

ISOLATOR

Rubber 1/2" Bore

1шт.

18

BN25883

MOUNT

1/2 x 3 FB x 6.00

1шт.

19

BN316870

WASHER

2.25 x 0.52 x 7 GA, 304 SS

1шт.

20

BN65463

WASHER

Machine Bushing - 18 GA

1шт.

20

BN65464

WASHER

Mach 14 GA

1шт.

20

BN65465

WASHER

Machine Bushing - 10 GA

1шт.

Выбрано товаров: 25
