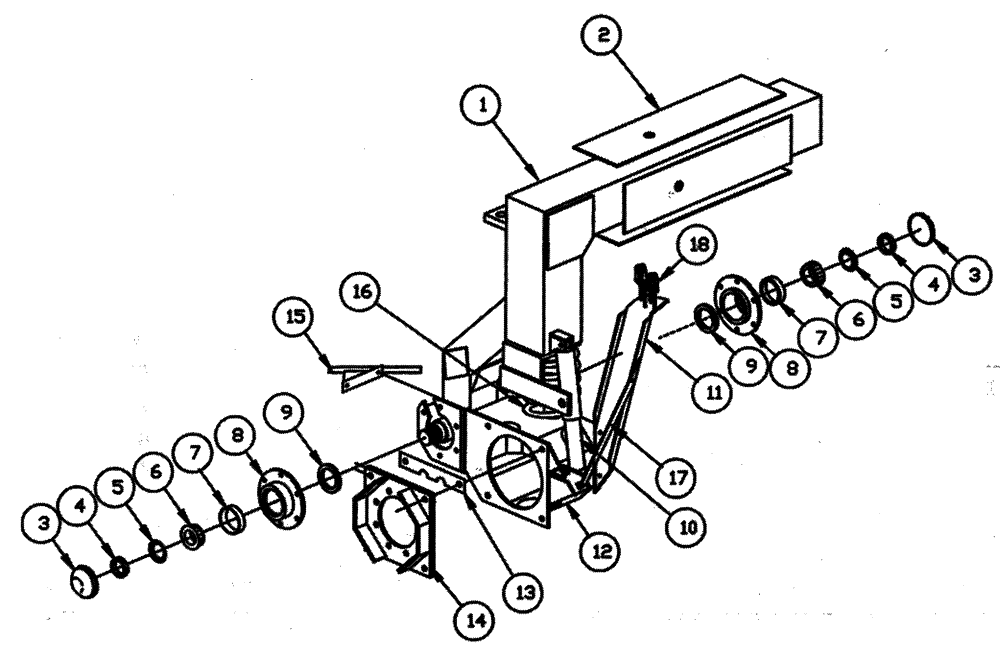

Запчасти Case IH PATRIOT WT (03-005[01]) - STRUT ASSEMBLY - REAR (MODEL 7 HUB) Suspension & Frame

1

BN323926

STRUT

LH

1шт.

Shown

1шт.

1

BN323925

STRUT

RH

1шт.

Opposite

1шт.

2

BN25527

LINER

nylatron .187 x 7 x 40

8шт.

BN50014

BOLT

5/16"-18 x .75, EH

8шт.

BN50056

LOCK NUT

5/16"-18, Whiz

8шт.

3

BN80442

DUST CAP

4шт.

4

BN80443

LOCK NUT

4шт.

5

BN80444

LOCK WASHER,2.026" ID x 2.95" OD x 0.015"

lock, bearing

4шт.

6

BN31073

ROLLER BEARING,2" ID x 3.6718" OD x 1.1875"

4шт.

7

ST863

BEARING CUP,93.22mm OD x 23.81mm W

#3720

4шт.

8

BN29071

HUB

Assembly With Race and Seal

4шт.

Includes Ref. 10

1шт.

BN29058

SHIM

8" Dia x 12 ga

1шт.

9

BN31074

SEAL

4шт.

10

BN27333

SERVICE KIT

Shock, Bushing, Bolt, Nut

2шт.

11

BN65571

SUPPORT

rear hoses, LH

1шт.

BN65572

SUPPORT

rear hoses, RH

1шт.

12

BN29199

WHEEL

L.H.

1шт.

Shown

1шт.

BN29200

WHEEL

R.H.

1шт.

Opposite

1шт.

13

BN29081

4шт.

14

BN63954

Plate

2шт.

NSS

NOT SOLD SEPARAT

Bolt - 5/8" x 2.25" GR 8

8шт.

BN52329

BOLT

5/8" x 3" GR 8

8шт.

BN50775

LOCK NUT

5/8"-18 UNF Center

8шт.

87343677

NUT

Hex, 5/8"-18, G8

8шт.

15

BN29690

DEFLECTOR

2шт.

16

BN24159

COIL SPRING

Extra H.D.

2шт.

BN24261

RETAINER,13.46mm ID x 101.6mm OD x 6.35mm Thk

4" od x .53" id x 1/4"

4шт.

17

BN65576

SUPPORT

Brace - R.H.

1шт.

BN65577

BRACKET

Brace - L.H.

1шт.

18

BN57235

CLAMP

Assy, 1"

4шт.
