Запчасти Case IH PATRIOT WT (08-005) - LIQUID PLUMBING - TANK & SKID (700 GAL. S.S. TANK W/DICKEY-JOHN®) Liquid Plumbing

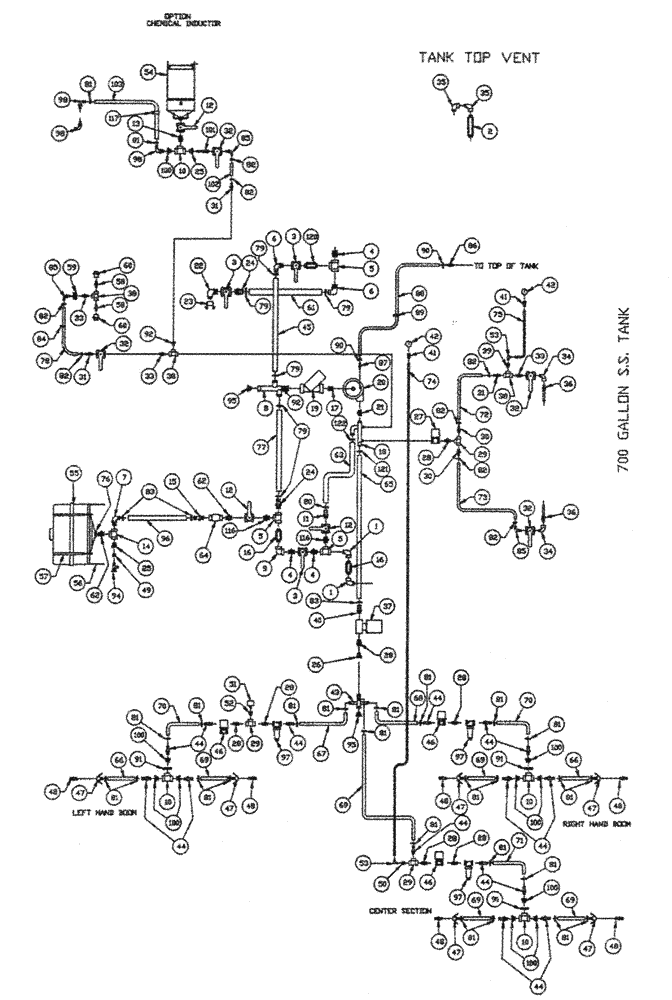

Схема запчастей Case IH PATRIOT WT - (08-005) - LIQUID PLUMBING - TANK & SKID (700 GAL. S.S. TANK W/DICKEY-JOHN®) Liquid Plumbing
44
19
96
81
62
89
48
28
100
81
67
69
82
23
81
82
25
41
72
37
36
81
41
33
100
86
35
81
47
6
64
103
97
14
42
90
28
9
5
81
5
16
62
120
47
91
28
46
92
3
31
34
122
82
50
81
59
44
91
79
21
10
4
70
85
4
81
79
81
17
46
10
31
40
44
44
44
62
2
10
52
82
95
101
65
1
82
90
6
32
18
82
32
81
81
69
82
1
44
22
117
48
100
28
100
61
88
95
48
21
32
97
78
3
47
92
69
48
91
13
3
59
44
81
29
75
85
72
98
60
30
48
12
60
81
32
53
47
121
43
81
27
56
116
102
34
81
98
15
81
84
29
38
58
85
83
44
12
70
30
66
24
39
5
35
46
87
5
81
33
38
10
69
4
79
81
16
29
20
47
97
98
100
53
94
28
100
100
48
116
81
66
47
23
68
72
83
25
58
44
8
79
54
74
80
36
57
76
28
42
71
51
81
49
12
26
7
45
82
11
24
38
28

Артикул

Название

Примечание

Количество

1

BN73785

ELBOW

2" Street

2шт.

2

BN73685

LUBE NIPPLE

1" x 6"

1шт.

3

BN73761

VALVE,2" NPT x 2" NPT

Ball, 2" Full Port

3шт.

4

BN73783

NIPPLE

2"

4шт.

5

BN73779

TEE,2" Poly Tee

2" Poly Pipe

3шт.

6

401875A1

FITTING,2" Male Thread x 2" 90 Degree Hose Barb

2" MNPT x 2" Hose Barb, Poly

2шт.

7

BN73663

ELBOW,90 Degree Elbow, 1-1/4" Male NPT x 1-1/4" Hose Barb, Poly

1-1/4" NPT x 1-1/4" Hose Barb, 90°, Poly

1шт.

8

BN25332

MANIFOLD

Inlet

1шт.

9

BN73789

FITTING

2" 90°

1шт.

10

BN73714

TEE,1-1/2" Female NPT x 1-1/2" Female NPT x 1-1/2" Female NPT, Poly

1-1/2" NPT, Poly

3шт.

11

413083A1

PIPE FITTING,1-1/2" Male Thread x 1-1/2" Hose Barb

Hose Barb, 1 1/2"

1шт.

12

BN73711

VALVE,1-1/2" NPT x 1-1/2" NPT

1 1/2" Ball

2шт.

14

BN73662

TEE

1-1/4"

1шт.

15

87743696

FITTING

1-1/4" NPT X 1-1/4" Hose Barb, Poly

1шт.

16

BN73786

NIPPLE

2" x 4"

2шт.

17

BN73320

NIPPLE

1-1/2" SS

1шт.

18

BN29958

MANIFOLD

Liq. Product 770

1шт.

19

BN73718

Assembly

1шт.

BN24084

FILTER STRAINER

30 Mesh for #73718

1шт.

20

BN53670

HYDROSTATIC PUMP

Complete Product Pump

1шт.

See Fig. 08-009 For Seal & Repair Parts

1шт.

BN53670R

REMAN-HYDROSTAT PUMP

PATRIOT WT (4/96 - 4/97)

1шт.

BN53670C

CORE-HYDROSTAT PUMP

Return Number

1шт.

21

BN73270

NIPPLE

Close 1.25 NPT SS

1шт.

22

BN25262

ELBOW

90°, 2" NPT

1шт.

23

BN22901

DUST CAP,2" Cam Lever Dust Cap

2" Cam Lever

1шт.

24

BN73781

FITTING,2" Male NPT x 2" Hose Barb, Poly

2" NPT x 2" Hose Barb

2шт.

25

BN73653

BUSHING,1-1/4" Male NPT x 3/4" Female NPT, Poly

1-1/4" x 3/4"

1шт.

26

BN73737

REDUCER,1-1/2" x 1" Poly Reducing Coupling

Reducer - 1-1/2" x 1"

1шт.

27

87546542

HYDRAULIC VALVE

Electric 1"

1шт.

28

BN73648

NIPPLE

1" Short Poly Pipe

6шт.

29

BN73629

TEE

1" Poly Pipe

3шт.

30

BN53666

FITTING

Barb - 1" x 3/4" Hose Shank

2шт.

31

BN73561

FITTING

Barb - 3/4"

2шт.

32

BN73564

VALVE

Ball - 3/4"

3шт.

33

BN73565

NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly

Pipe, 3/4"

3шт.

34

BN73566

ELBOW,3/4" Male NPT x 3/4" Female NPT, Poly

90, Street, 3/4" Poly

2шт.

35

BN53682

ELBOW

1" x 90°

2шт.

36

BN53671

AGITATOR

2шт.

37

BN98127

HYDRAULIC VALVE

DICKEY-John® Servo Valve

1шт.

38

BN73560

TEE

3/4"

3шт.

39

BN73550

BUSHING

3/4" x 1/4"

1шт.

40

BN29891

FITTING

Hosebarb 1" NPT x 3", SS

1шт.

41

BN53733

ADAPTER

1/4" NPT x 9/16" JIC

2шт.

42

BN98104

ELECTRICAL GAUGE

100 PSI

2шт.

43

BN25333

MANIFOLD

Outlet

1шт.

44

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

15шт.

45

BN53847

HOSE,2.00" ID x 23.50"

1шт.

46

BN53495

VALVE

Ball

3шт.

BN24083

MOUNTING PLATE

7 GA HRS 3.0 x 5.75/2

3шт.

47

BN53668

COUPLING

1" Female, HS SHK

6шт.

48

BN53667

COUPLING

Adapter - Male 1"

6шт.

49

BN73552

BUSHING,3/4" MPT x 1/2"FPT Reducing Bushing

Bushing - 3/4" x 1/2"

1шт.

50

BN2390261

REDUCER

Bushing - 1" x 1 /4"

1шт.

51

BN98078

SENSOR

DICKEY-John® Transducer

1шт.

52

BN53665

BUSHING

1" x .75 Poly

1шт.

53

BN53734

ELBOW

90° 1/4" NPT x 9/16" JIC

2шт.

55

BN24189

TANK

1шт.

BN24183

COVER

Rinse Tank (Ace)

1шт.

56

BN24301

SUPPORT

35 Gallon Tank 771

1шт.

57

BN63984

STRAP

Tank, 14 GA Hrs 1 x 49.5

2шт.

58

BN73649

NIPPLE,1" x 3/4" Poly Reducing Nipple

1" x 3/4" Poly

2шт.

59

BN73563

BULKHEAD

Fitting

1шт.

60

29568

NOZZLE

Rinse 360 Degree

2шт.

61

BN53808

2" x 36"

1шт.

62

BN73727

NIPPLE,1-1/2" NPT x 1-1/4" NPT

Reducer, 1.25 x 1.5

2шт.

63

BN53754

HOSE,12.50"

1шт.

65

BN29909

HOSE

1.25" ID x 39" EPDM

1шт.

66

BN53845

1" x 108"

2шт.

67

BN53745

1" x 190"

1шт.

68

BN53746

HOSE,1.00" ID x 250.00"

EPDM

1шт.

69

BN53744

FLEXIBLE HOSE,1.00" ID x 65.00"

5шт.

70

BN53844

HOSE

1" x 120"

2шт.

71

BN53743

FLEXIBLE HOSE,1.00" ID x 33.00"

1шт.

72

BN53740

HOSE,0.75" ID x 57.00"

1шт.

73

BN53783

HOSE

3/4" x 39"

1шт.

74

BN29999

HOSE

3/8" id EPDM x 260"

1шт.

75

BN67392

HOSE

3/8" x 144" EPDM

1шт.

76

BN73733

FITTING

1 1/2" Bulkhead

1шт.

77

BN53846

HOSE

2" x 18"

1шт.

78

BN53766

3/4" x 92"

1шт.

79

BN76056

HOSE CLAMP

#36

6шт.

80

BN76093

HOSE CLAMP

#28

1шт.

81

BN75990

HOSE CLAMP

#16, Stainless Steel

22шт.

82

BN75978

HOSE CLAMP

SS-#12 ADJ. HS .56-1.25

1шт.

83

BN76084

HOSE CLAMP

Adj. #24, SS

3шт.

84

BN57232

CLAMP

1"

1шт.

85

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

Barb - 3/4" x 90°

2шт.

86

BN72039

Barb - 1/4" x 1/4"

1шт.

87

BN72040

FITTING,1/8" MPT x 1/4" HB

Hose Barb, 1/8" NPT x 1/4" ID HS

1шт.

88

BN53786

HOSE

1/4" x 92"

1шт.

89

BN41859

CLAMP

9/16", Vinyl Covered

1шт.

90

BN76094

HOSE CLAMP

SS #M4

2шт.

91

BN21276

CLAMP

2 1/2" Muffler

3шт.

92

BN73553

PLUG

3/4" NPT, Poly

2шт.

94

BN53817

DRAIN VALVE

1/2" Plastic

1шт.

95

BN73731

PLUG,1-1/2" Male NPT, Poly

1 1/2" Poly Pipe

1шт.

96

BN24529

1-1/4" x 20"

1шт.

97

BN73681

FILTER STRAINER

Line

3шт.

97a

BN73679

FILTER STRAINER

SCREEN, 50 MESH

1шт.

97b

84222934

SCREEN,80 Mesh Screen

80 MESH

1шт.

100

BN73717

BUSHING,1-1/2" Male NPT x 1" Female NPT, Poly

1.5 x 1

9шт.

116

BN73780

NIPPLE

Reducer

2шт.

120

BN73790

LUBE NIPPLE

2" x 6"

1шт.

121

BN53810

HOSE CLAMP

1-3/4"

1шт.

122

BN53811

CLAMP

2" ID, T-bolt

1шт.

BN72041

HOSE

1/4" Bulk EPDM Discharge

1шт.

BN27905

HOSE,19.05mm ID x 304.8mm L

EPDM 3/4" ID x 12"

1шт.

BN53479

HOSE,1.00" ID BULK

EPDM Discharge

1шт.

BN53621

HOSE,1.50" ID BULK

EPDM Suction

1шт.

BN29564

HOSE

2" Bulk EPDM Suction

1шт.

BN25775

SKID PLATE

700 Gallon

1шт.

BN24635

TANK

700 Gallon Stainless

1шт.

BN29430

STRAP

Tankband - 750 Gallon

3шт.

BN50707

BOLT

J-3/8-16 x 4.5

6шт.

10

BN73714

TEE,1-1/2" Female NPT x 1-1/2" Female NPT x 1-1/2" Female NPT, Poly

1-1/2" NPT, Poly

1шт.

Chemical Inductor (Optional)

1шт.

12

BN73711

VALVE,1-1/2" NPT x 1-1/2" NPT

1 1/2" Ball

1шт.

Chemical Inductor (Optional)

1шт.

13

BN73715

NIPPLE,1-1/2" Short Poly Nipple

1 1/2" Short Poly

1шт.

Chemical Inductor (Optional)

1шт.

25

BN73716

BUSHING,1-1/2" Male NPT x 3/4" Female NPT, Poly

1.5 x .75 Reducer Poly

1шт.

Chemical Inductor (Optional)

1шт.

31

BN73561

FITTING

Barb - 3/4"

1шт.

Chemical Inductor (Optional)

1шт.

32

BN73564

VALVE

Ball - 3/4"

1шт.

Chemical Inductor (Optional)

1шт.

54

BN65145

FUNNEL

Chemical Tank

1шт.

Chemical Inductor (Optional)

1шт.

BN24277

PIN

3/8" SS rod x 13.75"

1шт.

Chemical Inductor (Optional)

1шт.

81

BN75990

HOSE CLAMP

#16, Stainless Steel

2шт.

Chemical Inductor (Optional)

1шт.

82

BN75978

HOSE CLAMP

SS-#12 ADJ. HS .56-1.25

2шт.

Chemical Inductor (Optional)

1шт.

85

BN73582

Barb - 3/4" x 90°

1шт.

Chemical Inductor (Optional)

1шт.

98

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

Barb - 1", 90°

3шт.

Chemical Inductor (Optional)

1шт.

100

BN73717

BUSHING,1-1/2" Male NPT x 1" Female NPT, Poly

1.5 x 1

1шт.

Chemical Inductor (Optional)

1шт.

101

BN23475

VENTURI

1шт.

Chemical Inductor (Optional)

1шт.

102

BN53785

HOSE,74.00"

1шт.

Chemical Inductor (Optional)

1шт.

103

BN65148

HOSE

1" x 112"

1шт.

Chemical Inductor (Optional)

1шт.

117

BN570018

CLAMP

1-7/16"

1шт.

Chemical Inductor (Optional)

1шт.
