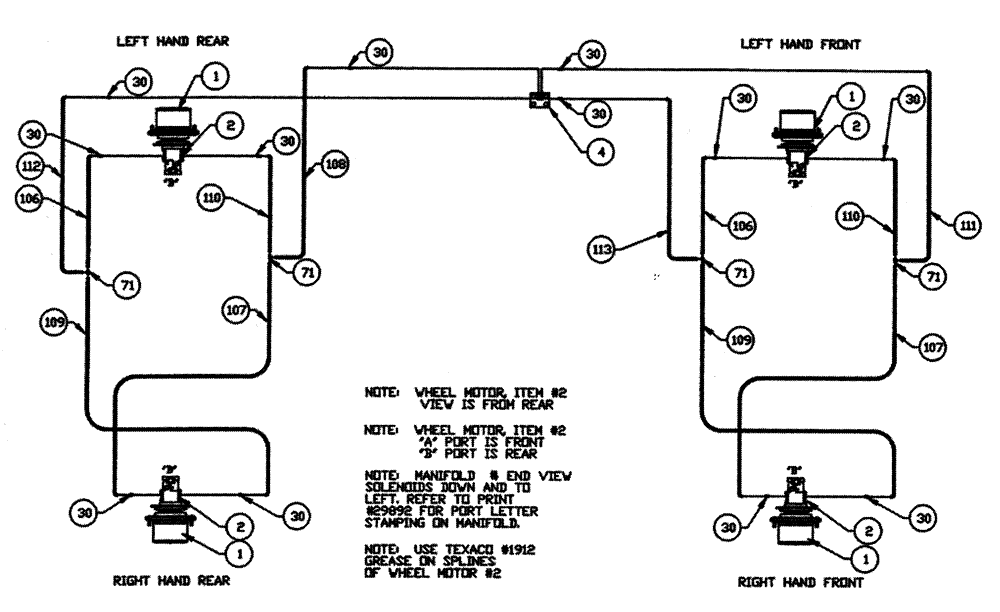

Запчасти Case IH PATRIOT WT (05-007) - HYDRAULIC PLUMBING - WHEEL MOTOR POWER SHIFT Hydraulic Plumbing

1

NSS

NOT SOLD SEPARAT

Hub - Power Wheel

1шт.

See Fig. 04-001 Power Wheel Hub Model 7 or Model 8, For Seals & Repair Parts

1шт.

BN27372

CAP

hub cover

4шт.

2

BN25866

MOTOR,GEAR, 24.6 CC

wheel

4шт.

BN25866R

REMAN-HYD MOTOR

Patriot WT, (Old Cab) 4/96 - 4/97,

4шт.

BN25866C

CORE-HYDRAULIC PUMP

Return Number

1шт.

BN54033

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

Between Hub & Wheel Motor

4шт.

BN98186

SEAL

lip, shaft

4шт.

4

BN54214

Manifold

1шт.

See Fig. 05-010 for Seals & Repair Parts

1шт.

30

BN51589

FITTING

STR.-9/16-18 O-Ring x 7/16-20 JIC

12шт.

BN98019

O-RING

#6

12шт.

71

BN21422

TEE

7/16-20 JIC

4шт.

106

BN54232

HOSE

1/4" x 119", 100R1

2шт.

107

BN55114

HOSE

1/4" x 150", 100R1

2шт.

108

BN54149

HOSE,0.25" ID x 132.00", SAE 100R1

1шт.

109

BN55113

HOSE

1/4" x 144", 100R1

2шт.

110

BN54150

HOSE,0.25" ID x 110.00", SAE 100R1

2шт.

111

BN54152

HOSE,0.25" ID x 42.00", SAE 100R1

1шт.

112

BN54211

HOSE

1/4" x 132", long 90° elbow

1шт.

113

BN54212

HOSE

1 /4" x 42", long 90° elbow

1шт.
