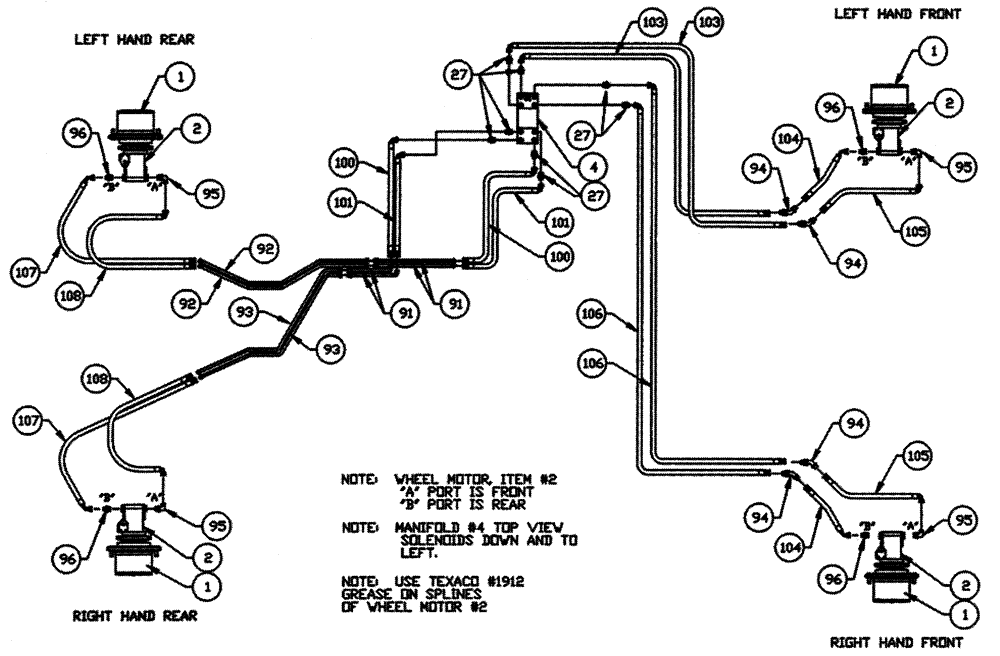

Запчасти Case IH PATRIOT WT (05-006) - HYDRAULIC PLUMBING - WHEEL MOTORS Hydraulic Plumbing

1

NSS

NOT SOLD SEPARAT

Hub-Power Wheel

1шт.

See Fig. 04-001 Power Wheel Hub Model 7 or Model 8, For Seals & Repair Parts

1шт.

BN27372

CAP

hub cover

4шт.

2

BN25866

MOTOR,GEAR, 24.6 CC

wheel

4шт.

BN25866R

REMAN-HYD MOTOR

Patriot WT, (Old Cab) 4/96 - 4/97,

4шт.

BN25866C

CORE-HYDRAULIC PUMP

Return Number

1шт.

BN54033

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

Between Hub & Wheel Motor

4шт.

BN98186

SEAL

lip, shaft

4шт.

4

BN54214

Manifold

1шт.

See Fig. 08-009 For Seal & Repair Parts

1шт.

27

BN21417

FITTING,1 5/16"-12 O-Ring x 1 1/16"-12, 37 Degree

8шт.

BN98016

O-RING

SAE-16 Buna N

8шт.

91

BN24931

TUBE

steel, 3/4" front

4шт.

92

BN24932

TUBE

steel, 3/4" LH, rear

2шт.

93

BN24933

TUBE

steel, 3/4" RH, rear

2шт.

94

BN53959

ELBOW

45° Bulkhead 3/4" JIC

4шт.

95

BN53927

ADAPTER

90º 16 O-Ring-12 JIC

4шт.

96

BN21417

FITTING,1 5/16"-12 O-Ring x 1 1/16"-12, 37 Degree

4шт.

100

BN55128

HOSE

3/4" x 24" (High Pressure)

2шт.

101

BN55129

HOSE

3/4" x 29" (High Pressure)

2шт.

103

BN55105

HOSE

3/4" x 145", high pressure

2шт.

104

BN58123

HOSE

3/4" x 24", high pressure

2шт.

105

BN58110

HYDRAULIC HOSE,19.05mm ID x 774.7mm L

High pressure

2шт.

106

BN58111

HOSE,19.05mm ID x 3530.6mm L

3/4" x 139", high pressure

2шт.

107

BN58112

HOSE

3/4" x 106 1/2", high pressure

2шт.

108

BN58113

HOSE

3/4" x 108", high pressure

2шт.
