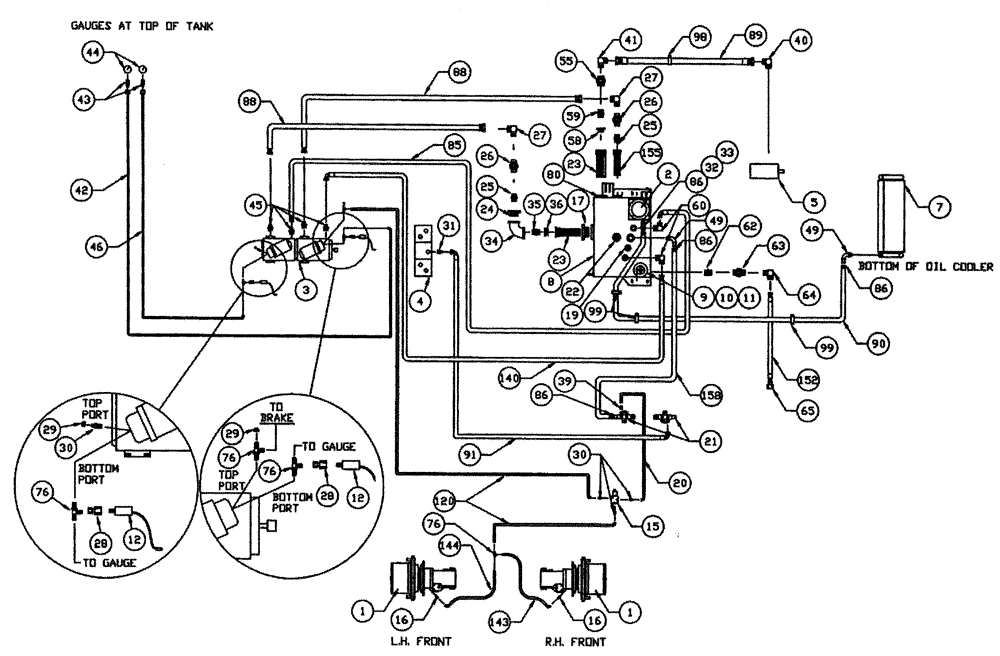

Запчасти Case IH PATRIOT WT (05-004) - HYDRAULIC PLUMBING - HYDROSTATIC PUMP Hydraulic Plumbing

1

NSS

NOT SOLD SEPARAT

Hub - Power Wheel, See Power Wheel Hub Model 7 or Model 8

1шт.

BN27372

CAP

hub cover

2шт.

2

BN53952

FILTER

In/Tank Complete

1шт.

BN53953

FILTER

Element

1шт.

BN54267

O-RING

element

1шт.

BN53955

PRESSURE SWITCH

1шт.

BN53954

GAUGE

Pressure

1шт.

BN54269

SEAL KIT

1шт.

3

BN25679A

HYDROSTATIC PUMP

Tandem, Series 90 MFV

1шт.

N14232

FILTER

Element, Spin On

2шт.

BN67191

VALVE PRESSURE RELIE

Sundstrand #8510022-2

4шт.

BN65541

O-RING

M/F Valve Upper

4шт.

BN65542

O-RING

M/F Valve Lower

4шт.

BN68509

GASKET

Control Body

2шт.

BN65544

O-RING

Shaft, 75 CC

1шт.

BN65546

SEAL

Lip, Shaft 75 CC

1шт.

3a

BN25679

Pump-Tandem Hydrostatic, Multi-Function Valve Style BN25679 Is So Longer Available, Substitute BN25679A

1шт.

N14232

FILTER

Element, Spin On

2шт.

BN65540

VALVE

Multi-Function 90 Series

4шт.

BN65541

O-RING

M/F Valve Upper

4шт.

BN65542

O-RING

M/F Valve Lower

4шт.

BN68509

GASKET

Control Body

2шт.

BN65544

O-RING

Shaft, 75 CC

1шт.

BN65546

SEAL

Lip, Shaft 75 CC

1шт.

4

BN54214

1шт.

See Fig. 02-004 for Seal & Repair Parts

1шт.

5

BN320694

PUMP

Tandem/Steering & Spray Motor

1шт.

BN98234

SEAL

For 29236

1шт.

BN98235

REPAIR KIT

w/Wear Plates And Seals

1шт.

7

BN29339

OIL COOLER

Hyd.

1шт.

8

BN65567

TANK

Hydraulic Oil

1шт.

BN52319

PLUG

Magnetic 1/2" NPT

1шт.

9

BN53958

BREATHER

Spin On, Breather

1шт.

10

BN54257

1 x 30

1шт.

11

BN75990

HOSE CLAMP

#16, Stainless Steel

1шт.

12

BN53950

SENSOR

Pressure, N.O.200 PSI

2шт.

15

BN29955

SOLENOID

Valve, Brake Actuator

1шт.

BN98420

SEAL KIT

For 29955

1шт.

BN98421

CARTRIDGE

for BN29955

1шт.

BN98422

COIL

solenoid valve

1шт.

BN98423

VALVE BODY

For 29955

1шт.

16

BN444005

FITTING

STR 7/16-20 O-Ring x 7/16-20 JIC

2шт.

BN98094

O-RING

#4

2шт.

17

BN72540

Bushing - 3 x 4 Steel

1шт.

19

BN72220

PLUG

3/4" NPT Drain

1шт.

20

BN54236

HOSE,0.25" ID x 91.00", SAE 100R1

1шт.

21

BN63937

MANIFOLD

Hydraulic

2шт.

22

BN65198

SWITCH

Level Assembly

1шт.

BN16056

SEAL

Packard Plug

2шт.

BN16057

ELEC. TERMINAL PIN,8 mm

Male Packard

2шт.

BN16196

HYD CONNECTOR

2-Way

1шт.

BN52326

RETAINER

Seal

1шт.

BN53958

BREATHER

Spin On, Breather

1шт.

BN64004

TUBE

Level Switch

1шт.

23

BN25877

FILTER STRAINER

In-Line 50 GPM 100 Mesh

2шт.

24

BN72470

FITTING

2" x 1-1/4" Reducer

1шт.

25

BN51952

COUPLING

male, 1-1/4"

2шт.

26

BN2006

Gate Valve, 1 1/4 NPT

2шт.

27

BN52318

ADAPTER

90° 1 1/4" NPT X 1 5/8" - 12 JIC

2шт.

28

BN53961

ADAPTER

Int. Pipe-37 Flare

2шт.

29

BN21531

NUT,7/16"-20, 37 Degree

2шт.

30

BN51589

FITTING

STR.-9/16-18 O-Ring x 7/16-20 JIC

5шт.

BN98019

O-RING

#6

5шт.

31

BN444003

FITTING

Adapter Str.-1 1/16-12 O-Ring x 3/4-16 JIC

1шт.

BN98017

O-RING

SAE-12 Buna N

1шт.

32

BN22432

FITTING

Barb Str 1" NPT x 1" Hose

1шт.

33

BN51970

ADAPTER

1шт.

34

BN72459

2" NPT X 90º

1шт.

35

BN72450

LUBE NIPPLE

LUBRICATOR 2 X close BI

1шт.

36

58188

UNION

SPARE PART Adapter - 2" x 3"

1шт.

39

BN53714

FITTING

Reducer - 3/4-16 JIC F x 7/16-20 JIC M

1шт.

40

BN52037

ADAPTER

90º OR 37 FL20-24

1шт.

BN98016

O-RING

SAE-16 Buna N

1шт.

41

BN52036

FITTING

Adapter, 1 1/2" NPT X 1 7/8"-12 JIC

1шт.

42

BN58127

HOSE,0.25" ID x 46.00"

1шт.

43

BN53962

FITTING

Bulkhead

2шт.

44

BN13821

GAUGE

pressure 0-600 psi

2шт.

45

BN53918

ADAPTER

flat face x Or x 4.1

4шт.

BN53730

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

4шт.

BN98016

O-RING

SAE-16 Buna N

4шт.

46

BN58128

HOSE,0.25" ID x 61.00"

1шт.

49

BN21386

FITTING

Barb - 90° 1" NPT x 1"

1шт.

55

BN51497

HYDRAULIC VALVE

Gate - 1" x 1-1/2 NPT

1шт.

58

BN72471

BUSHING

2" x 1 1/2"

1шт.

59

BN52034

1-1/2"

1шт.

60

BN442004

FITTING

90° 3/4" NPT X 1-1/16 - 12 JIC

2шт.

62

BN51656

ADAPTER

STR

1шт.

63

BN21372

VALVE

Gate, 1" NPT

1шт.

64

BN53809

ELBOW

90°

1шт.

65

BN22240

CROWN NUT,1-1/16"-12 , 37 Degree

1шт.

76

BN21866

TEE,9/16"-18 O-Ring x 7/16:-20, 37 Degree

4шт.

BN98019

O-RING

#6

4шт.

80

BN53957

GAUGE

Sight

1шт.

85

BN53583

HOSE,0.75" ID x 48.00"

1шт.

86

BN75990

HOSE CLAMP

#16, Stainless Steel

1шт.

87

BN52043

HOSE,1.25" ID x 30.00"

1шт.

88

BN52041

HOSE

1-1/4" x 35"

1шт.

89

BN52044

HOSE,38.1mm ID x 1828.8mm L

1-1/2" x 72"

1шт.

90

BN58117

hose, 1" x 105"

1шт.

91

BN53967

HOSE ASSY.

1/2" x 60"

1шт.

98

BN52035

CLAMP

2" Dia., Vinyl Coated

1шт.

99

BN570018

CLAMP

vinyl coated 1-7/16

3шт.

120

BN54184

HOSE

1/4" x 120"

2шт.

140

BN53443

HOSE,19.05mm ID x 1778mm L

1шт.

143

BN54232

HOSE

1/4" x 119", 100R1

1шт.

144

BN55514

HOSE

1/4" x 150"

1шт.

152

BN54199

HOSE,0.75" ID x 30.00", SAE 100R1

1шт.

155

BN24148

FILTER STRAINER

25 gpm, 100 Mesh

1шт.

158

BN55110

1" x 86"

1шт.
