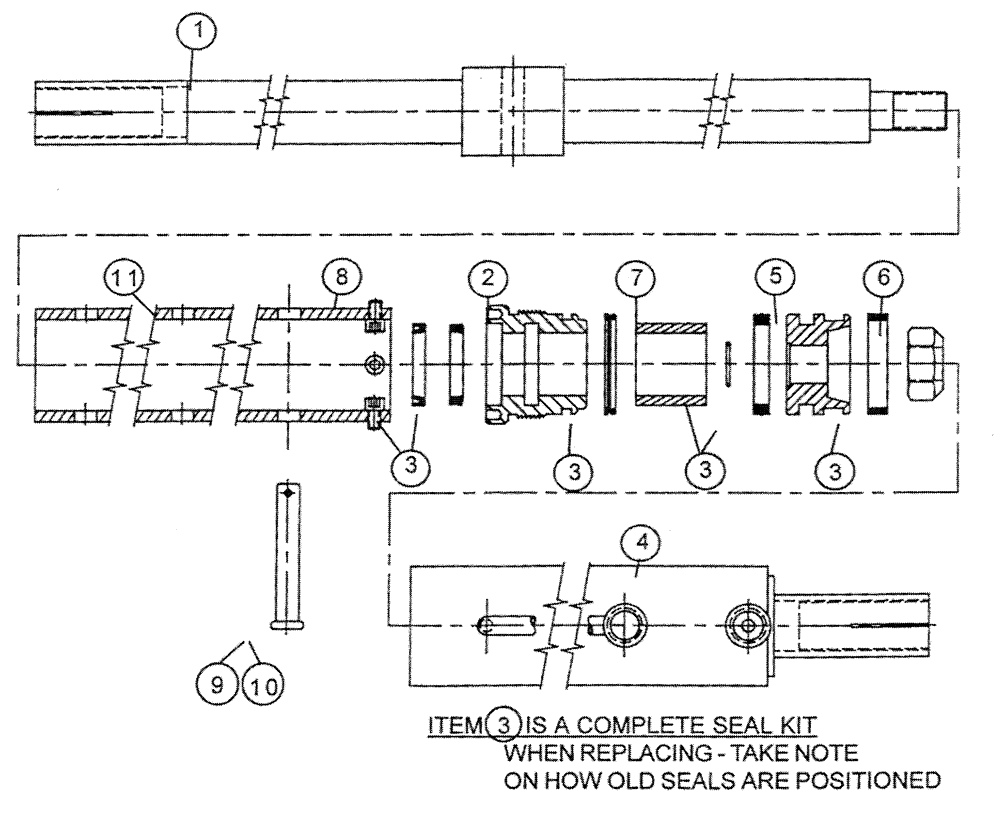

Запчасти Case IH PATRIOT WT (06-009) - HYDRAULIC CYLINDER - TIE ROD - (2" X 9") - 1" DIA ROD Cylinders

0

87271298

CYLINDER

Hydraulic - Tie Rod

1шт.

1

BN98705

SHAFT

1шт.

2

BN98338

End Gland

1шт.

3

BN98178

SEAL KIT

1шт.

4

BN98706

TUBE

1шт.

5

BN98339

1шт.

6

BN98093

LOCK NUT

Jam, 3/4"-16

1шт.

7

BN98707

BLOCK

stroke

1шт.

8

BN98703

SCREW,1/4" - 20 x 3/8"

Guide - Nylon

4шт.

9

BN98701

PIN

7/16"

1шт.

10

BN98702

COTTER PIN

1шт.

11

BN98649

TUBE

adjustable cylinder stop

1шт.
